SMART NX 5000 Demo Price $284,975 (subject to prior sale)FOB VA
Horizontal Machining Centers| MSRP | $359,900.00 USD |
| $359,900.00 USD |

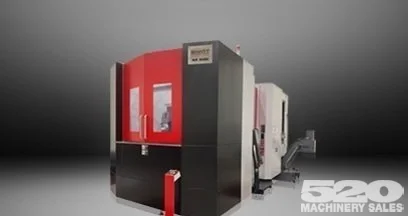

Discover the new SMART NX 5000 Horizontal Machining Center: robust 40 hp power, swift 12,000 RPM, 4-axis control, and a 60-tool ATC.
| X | 31.5" |
| Y | 29.5" |
| Z | 32.7" |
| Power | 40 hp |
| RPM | 12,000 RPM |
| # ATC | 60 |
| Taper | 50 |
| Pallet-W | 20" |
| Pallet-L | 20" |
| # Axis | 4 |
| Control | CNC (Fanuc 31iB) |
Coolant Thru Spindle 870 PSI
Outside Chip Conveyor Hinge Pan Type
4th Axis with Mitsubishi MP Inductosyn Scale (factory order)
Overhead Shower Coolant System
Spindle Cooling Unit Controlled by a Thermal Sensor in the Machine Base
Caged-Roller LM guide w/grease lubrication, Long-Term Maintenance-Free Operation
Dual Auger Inside Chip Conveyors
•Outside Chip Conveyor (standard lift-up/link belt style)
Flood Coolant System with 122 Gallon Coolant Tank
Table (under pallet) coolant flush
Manual Pulse Generator
SMART Machine Tool Hi Contour I (High Speed/High Precision Machining Package)
