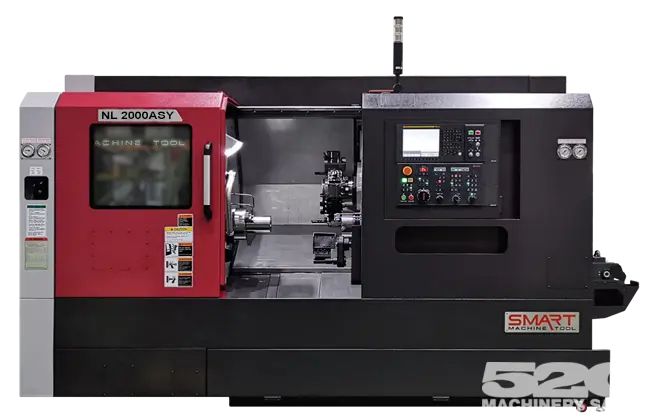

SMART NL 2000ASY Box Ways CNC Turning Center With Sub Spindle, Live Tool & Y-axis
5-Axis or More CNC Lathes
Discover the new SMART MACHINE TOOL NL 2000ASY, a fivestar 5-Axis CNC Lathe loaded with features. It has a turning Dia of 16.18", power of 25hp, and a max RPM of 6,000. For efficient production, it includes live tooling, a sub spindle, and a Y-Axis. The high-quality equipment, with a swing of 31.89" and machining length of 29.53", offers improved precision on your tasks. It fits bar capacities of 2" and has a 6" chuck size. Step up your operations with this high-performance tool.
***See attached brochure
| # Axis | 5 |
| Swing | 31.89" |
| Machining Length | 29.53" |
| Chuck Size | 6" |
| Bar Capacity | 2" |
| Power | 25 hp |
| Max RPM | 6,000 RPM |
| Turning Dia | 16.18" |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| Y-Axis | Yes |
| Control | CNC (Fanuc 0i TF) |
| Dimensions | 189" x 72" |
| Weight | 12,566 |
SMART NL2000ASY/BSY
Ballscrew dia. (X / Z / Y / B) mm (inch) 32/40/32/40 (1.26/1.57/1.26/1.57)
Axis feed thrust (X / Z / Y) N (lbs) 11,787/11,529/11,898 (2,650/2,592/2,675)
Repeatability (X / Z / Y) mm (inch) +0.002/+0.003/+0.003
(+0.00008/+0.00012/+0.00012)
TURRET
Number of tool stations st. 12
Curvic coupling - 3 Piece hydraulic clamp / Servo index
Coupling dia. mm (inch) 170 (7)
Clamping force kN(lbs) 54.1 (12,165) at 40 bar
OD tool size mm (inch) □25 (□1)
Boring bar size mm (inch) Ø40 (Ø1.5)
Indexing time sec 0.15
Indexing accuracy mm (inch) +0.01 (+0.0004)
Index repeatability mm (inch) +0.005 (+0.0002)
Milling tool holder type - BMT55
Tool spindle speed rpm 5,000
Tool motor power kW(hp) 3.7/5.5 (5/7.4)
COOLANT SYSTEM
Coolant pump bar(psi) 20 (290)
Tank capacity L(gal) 220 (58)
System type - Removable / Independent
HYDRAULIC, LUBRICATION
Hydraulic tank capacity L(gal) 20 (5.28)
Hydraulic oil type - ISO VG32 or equivalent
Lubrication tank capacity L(gal) 3 (0.8)
Lubrication oil type - ISO VG68 or equivalent
MACHINE SIZE
Max workpiece/part weight (in chuck only) kgf(lbs) 13(28.66) 24(52.91)
Required floor space mm(inch) 3,570x1,818(140.6x71.57)
Weight kg(lbs) 5,700 (12,566) 5,800 (12,787)
Power consumption kVA 40 45
Voltage - 220V±10%, 60 Hz, 3 phase
CONTROLLER
Controller model - Fanuc 0i-TF Plus
Display unit inch 10.4” TFT LCD Color Monitor
SMART PACKAGE (Inlcuded):
• Tool Presetter
• Oil Skimmer
• Barfeeder Interface
• Air Blow for Main Spindle
• Manual Guide i
• Pneumatic Parts Ejector
• Sub Spindle Coolant Flush
• (1) X-Axis Live Tool Holder
• (1) Z-Axis Live Tool Holder
SMART VALUE PACKAGE:
• Chip Conveyor - Side Discharge $ 5,950.00
• 290 PSI Coolant Pump $ 3,600.00
• Internal Parts Catcher / Parts Conveyor $ 5,950.00
• 1 Set of Hard Jaws $ 500.00
• 3 Set of Soft Jaws $ 300.00
• 3 Color Tower Light $ 450.00
Package List Price $16,750.00
(Discounted) SMART Value Package for $8,000.00)
