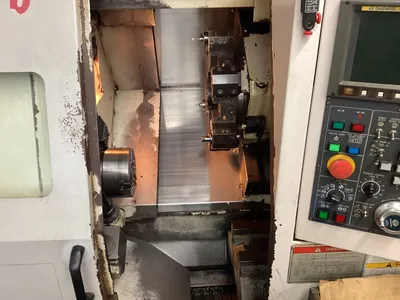

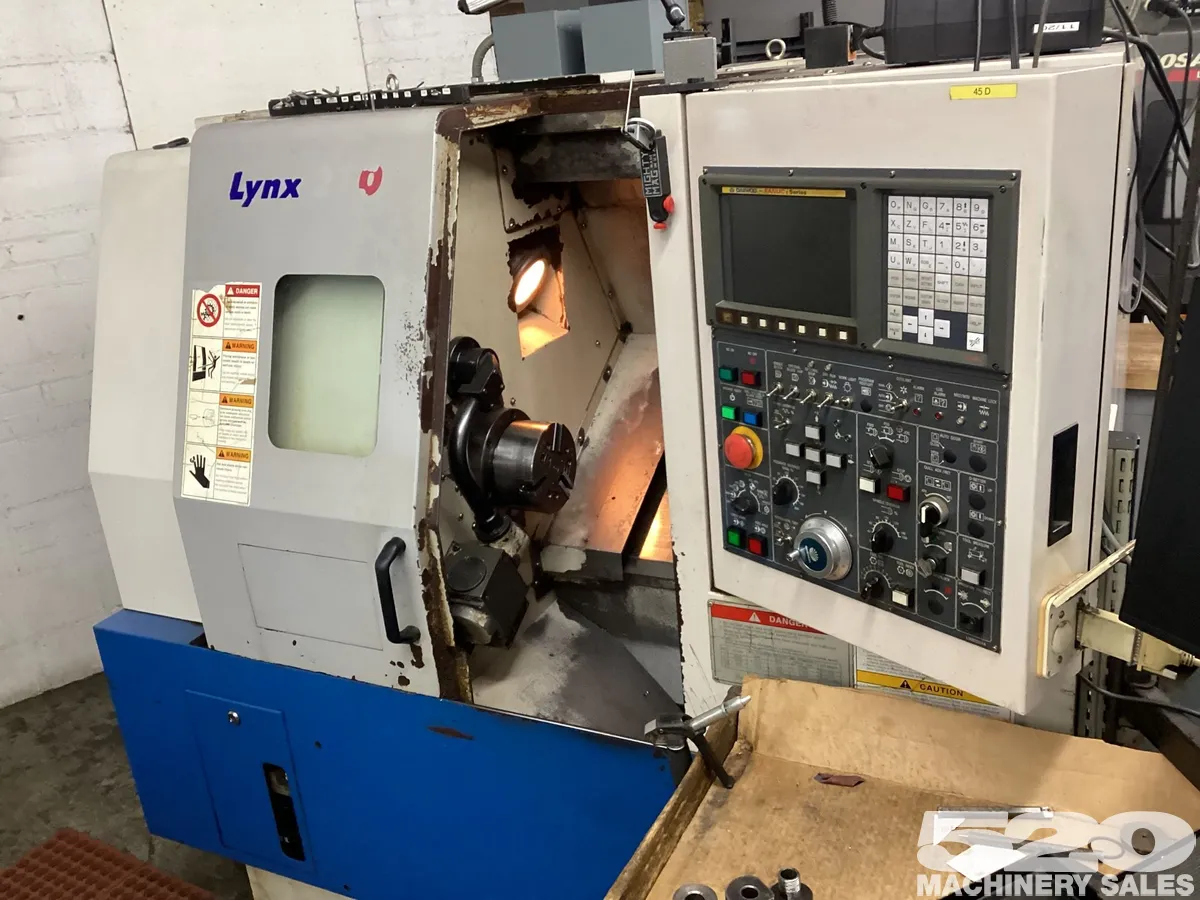

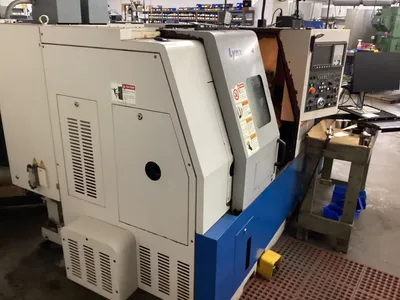

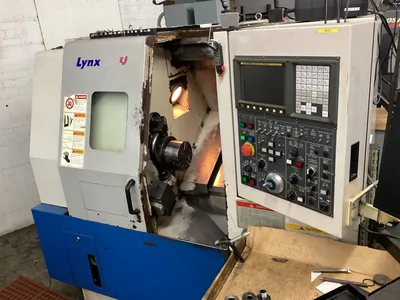

2003 DAEWOO LYNX 210A W/ Tailstock
ConditionUsed
1 available
$13,500.00 USD
2003 DAEWOO LYNX 210A W/ Tailstock. Machine is in good running condition. Machine includes: 6" chuck, Fanuc CNC control, tool setter, 5) boring bar holders, Hennig chip conveyor, and tailstock.
Model: Lynx 210A
Swing over bed: 18.11”
Swing over saddle: 13.78”
Max. machining diameter: 11.02”
Max. work length: 20”
Travels: X:6.3”, Z: 13”
Spindle: A2-5
Spindle speeds: 35 - 5,000 rpm
Spindle bore: 2.0”
Max. bar capacity: 1.75”
Spindle HP: 15, 220v/3ph

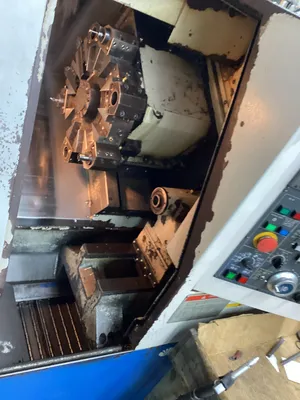

Turret positions: 12
OD tool height: 1”
Boring bar diameter: 1.5”
Rapid traverse: 944 ipm
Tail stock quill diameter: 2.56”, Taper: #3 MT, Quill travel: 3.15”
Dimensions: 76.77” x 62.60” x 7,700 lbs. (160” overall with chip conveyor)
Wired 220V/3ph/60cy,

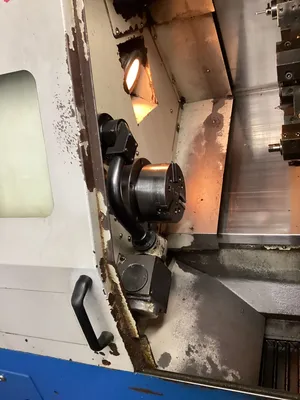

6" Chuck
Fanuc CNC Control
Tool Presetter
5) Boring Bar Holders

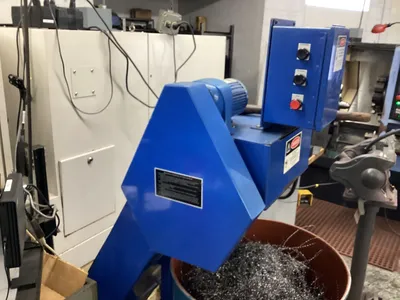

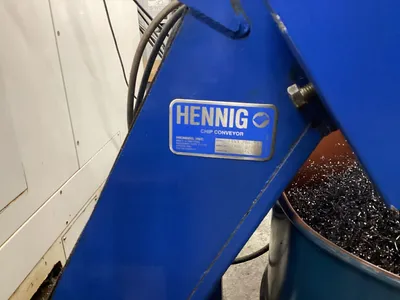

Hennig Chip Conveyor
Tailstock
2003 DAEWOO LYNX 210A W/ Tailstock. Machine is in good running condition. Machine includes: 6" chuck, Fanuc CNC control, tool setter, 5) boring bar holders, Hennig chip conveyor, and tailstock.
Imperial
| Live Tooling | No |
| Y-Axis | No |
| Sub Spindle | No |
| Swing | 18.11" |
| Machining Length | 11.8" |
| # Axis | 2 |
| X Travel | 6.3" |
| Z Travel | 13" |
| Chuck Size | 6" |
| Bar Capacity | 1.75" |
| Power | 15 hp |
| Max RPM | 5,000 RPM |
| Turning Dia | 11" |
| Tailstock | Yes |
| Barfeed | No |
| Control | CNC (FANUC) |
Model: Lynx 210A
Swing over bed: 18.11”
Swing over saddle: 13.78”
Max. machining diameter: 11.02”
Max. work length: 20”
Travels: X:6.3”, Z: 13”
Spindle: A2-5
Spindle speeds: 35 - 5,000 rpm
Spindle bore: 2.0”
Max. bar capacity: 1.75”
Spindle HP: 15, 220v/3ph
Turret positions: 12
OD tool height: 1”
Boring bar diameter: 1.5”
Rapid traverse: 944 ipm
Tail stock quill diameter: 2.56”, Taper: #3 MT, Quill travel: 3.15”
Dimensions: 76.77” x 62.60” x 7,700 lbs. (160” overall with chip conveyor)
Wired 220V/3ph/60cy,
6" Chuck
Fanuc CNC Control
Tool Presetter
5) Boring Bar Holders
Hennig Chip Conveyor
Tailstock
