2003 Citizen M20 CNC Swiss Type Turning Center W/ Iemca Boss Barfeeder
Have one to sell?
$59,750.00 USD
ConditionUsed
1 available

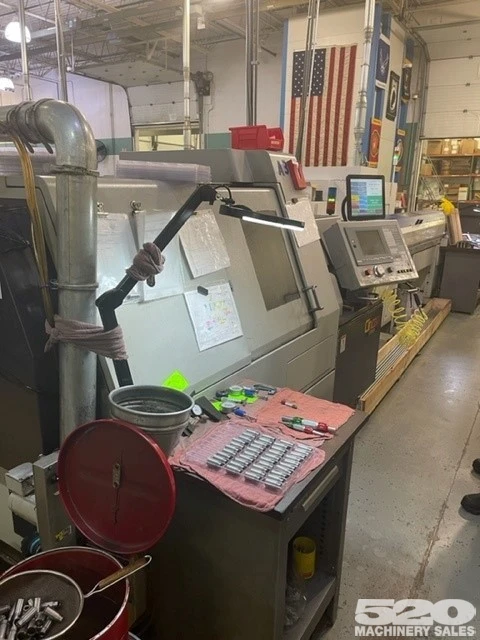

2003 Citizen M20 CNC Swiss Type Turning Center W/ Iemca Boss Barfeeder. Unit is in excellent shape and can be inspected under power as needed. Machine comes with high-pressure coolant. This machine is in a shop that takes very good care of their machines. All the maintenance is up to date.
Bar Capacity: 0.787″
Spindle Speed: 8,100 RPM
Max Turning Length: 12.6″
Maximum Machining Length: 12.6′ / 320 mm
Main Spindle Speeds: 200 – 8,100 RPM
Back Spindle Speeds: 150 – 7,200 RPM
Rotary Tool Speeds: 250 – 5,000 RPM Main Slide
Back Spindle Max Chucking Diameter: 20 mm / .787″
Turning Tools: 5 static
Rotary (Live) Tools: 3 Live on Main Slide
Rapid Traverse (X/Y/Z): 590 / 708 IPM
Main Spindle Drive: 3 HP
Back Spindle Drive: 1 HP
Rotary Tool Drive: .54 HP
Cutting Tool Shank/Sleeve Size: 13 X 13 mm
Main Spindle Indexing: Full C-Axis (.001 degree)
Sub-Spindle Indexing: 15 Degree Increments
Turret Capacity: 10 Stations (Live)
Turret Live Tool Speed: 320 – 6,300 RPM
Equipped with:
High Pressure Coolant
Iemca Boss Barfeeder
Main Spindle Indexing: Full C-Axis (.001 degree)
Sub-Spindle Indexing: 15 Degree Increments
Turret Capacity: 10 Stations (Live)
Turret Live Tool Speed: 320 – 6,300 RPM
High Pressure Coolant
Iemca Boss Barfeeder
