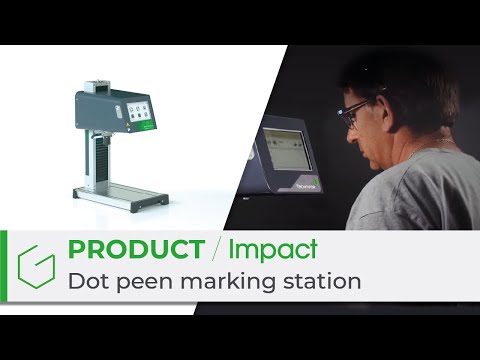

Gravotech Impact P Marking Machine (Pneumatic With Manual "Z" Axis)
Have one to sell?
ConditionNew
1 available
New
Do you need to mark your parts? This dot peen machine sits on your bench and will mark your parts. So easy to set up and run.
IMPACTp which includes :
- Pneumatic with manual "Z" axis
- Marking head with 100mmx120mm marking area
- High-flow air-valve allows operation at only 30PSI (2bar)
- Manual z-axis with 300mm (12”) of adjustment
- Aluminum table with t-slots to secure fixtures/tooling.
Integrated control unit:
- T08 multi-language marking program.
- Large, backlit Touch screen
- Dedicated I/O (Start/Stop/Machine Ready)
- Ethernet, USB and RS232 connections
- 110-230VAC power supply
Optional Add-Ons
RD 1 Adds controlled rotation of small to medium parts, std chuck incl $2,234.00
RD 2 - Adds controlled rotation of medium to large parts, std chuck incl $3,354.00
Plate Kit - To position, clamp and mark tags, etc. with reduced noise $554.00
Control Box - For manual start/stop control $196.00
Footswitch - To start marking by foot $157.00
Footswitch XL - To start marking by foot, industrial version $280.00
LED light - For better visibility for marking area $112.00
Riser block - To increase height for larger parts and allows column to rotate $392.00
