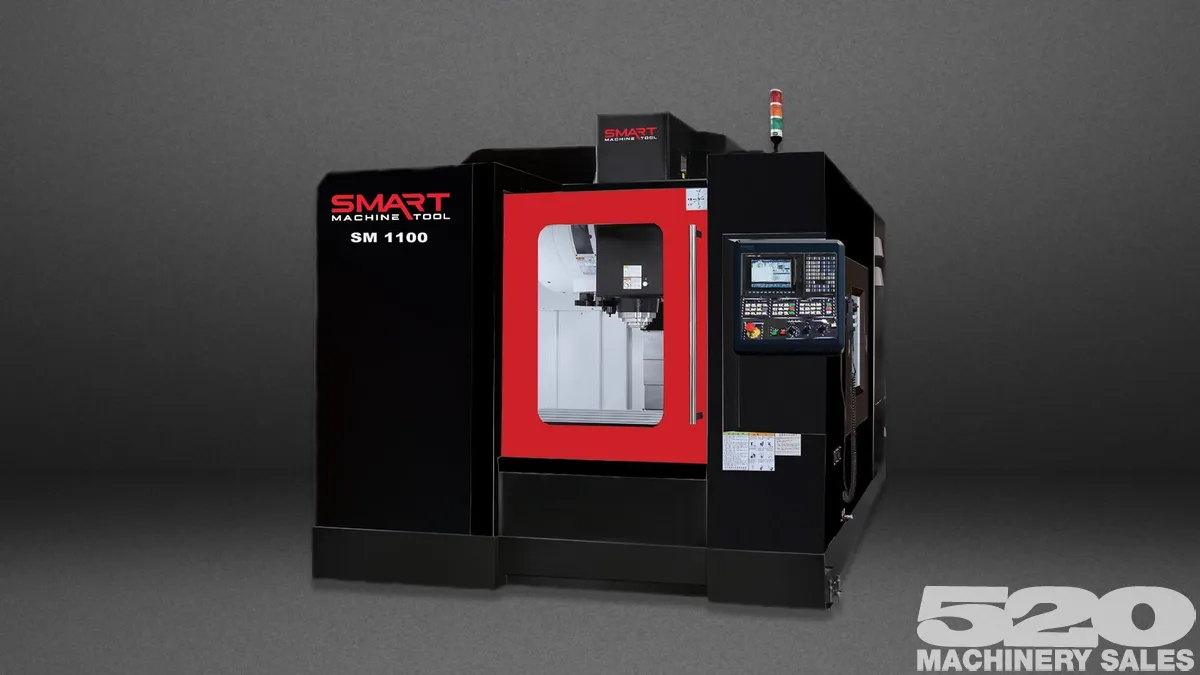

NEW SMART SM 1100-50 (Package) Box Way VMC + 10" Rotary Table

SMART SM 1100-50
Prices and specifications are subject to change without notice.
Pictures and graphics are representative and may not be from the actual machine. 2
MACHINE SPECIFICATIONS
SM 1100-50
Working Surface 50” x 23.62”
T slots (Width x No. x Pitch) (in) 0.71” x 0.20” x 4.72”
Max. Table Load (lbs) 2,645.55
X-Axis (in) 43.31”
Y-Axis (in) 23.62”
Z-Axis (in) 24.8”
Distance from Spindle End to Table Center (in) 3.94”
Distance from Spindle Center to Column (in) 25.39”
FEED
Cutting Feed Rate (in/min) X/Y/Z 472.44”/472.44”/472.44”
Rapid Traverse (in/min) X/Y/Z 944.88”/944.88”/787.4”
SPINDLE
Spindle Nose Taper #50
Spindle Speed (Gear) 6,000 RPM
Spindle Motor: 30 Min Rating (Gear) 30/25 HP
AUTOMATIC TOOL CHANGER
Tool Storage Capacity 32
Max. Tool Weight (lbs) 33.07
Max. Tool Size (Diameter x Length) (in) Ø4.13” x 11.81”
Tool Shank CAT50 (BIG PLUS)
Tool Stud Bolt CAT-50
POWER REQUIREMENTS
Electric Power Consumption 220V 25-40 KVA 25-55 KVA
Compressed Air 92.45 PSI
FLOOR SPACE
Dimensions (in) 114.17” x 106.85”
Machine Weight (lbs) 17,526.75

SMART SM 1100-50
Prices and specifications are subject to change without notice.

INVESTMENT
SMART SM 1100-50 (CAT50, 6K) + 250R 4th Axis Rotary
Package List PRICE: $206,325

SMART PACKAGE: Included:
▪ 290 PSI Coolant Thru-Spindle
▪ Oil Skimmer
▪ Full Enclosed Splash Guard
▪ Built-in Dual (Internal) Screw Conveyor (SM1370-50 only)
▪ Coolant Bed Flush
▪ Renishaw Probe Ready Kit (OMI-2T)
▪ 4th Axis Preparation
▪ Rigid Tapping
▪ Big Plus Spindle
▪ Manual Guide i
SMART VALUE PACKAGE: Included:
▪ SMART 250R 10" 4-th Axis Rotary Table
▪ Lift Up Chip Conveyor
▪ Air Thru Spindle
▪ Coolant/Air Gun
▪ 3 Color Tower Light
