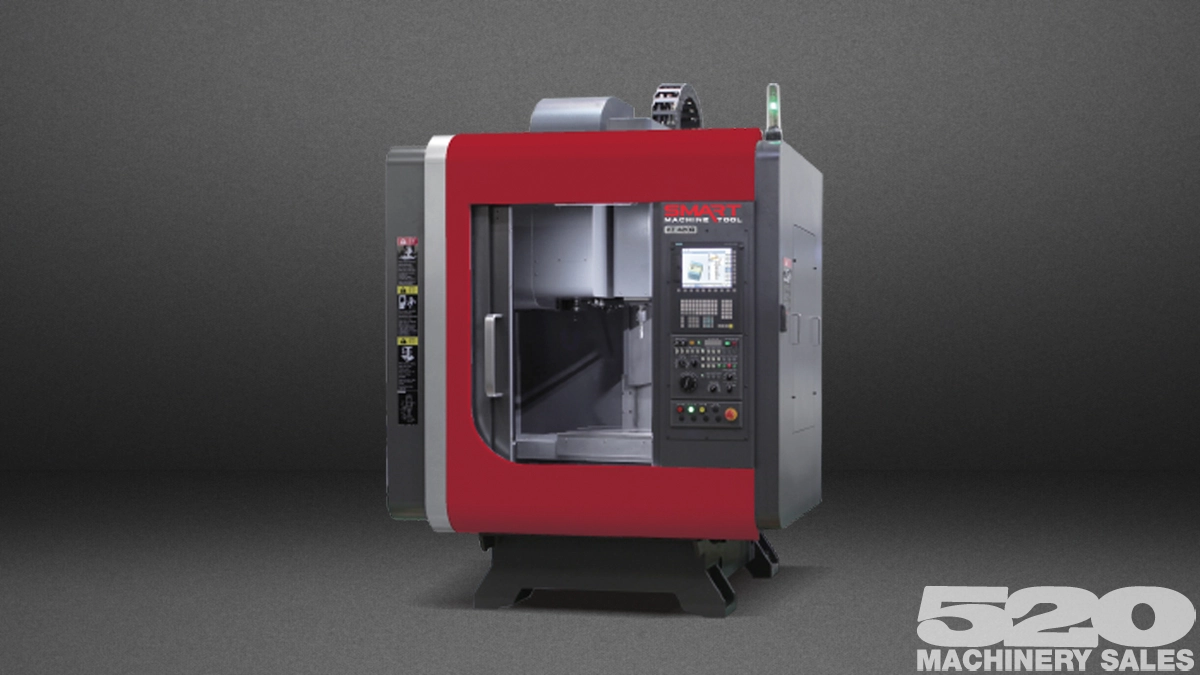

520 ALL DAY SPECIAL SMART MACHINE TOOL KT 420L Drill/Tap

KT 420L
CAPACITY
X axis travel 27.5”
Y axis travel 16.5”
Z axis travel 11.8”
Table size 31.5” x 15.7”
Table loading capacity 660 lbs.
SPINDLE
Distance from table top to spindle nose 6.6” – 18.5”
Spindle taper BT30
Spindle speed 15,000 rpm
AC Spindle motor 10/7.5 hp
AUTO TOOL CHANGER
Magazine capacity 21
Tool shank BT30
FEED RATE
Rapid traverse (X / Y / Z) 1,889 ipm / 1,889 ipm / 2,200 ipm
Slide Ways Cross Roller Way
GENERAL
Floor space (L x W x H) 99” x 81” x 104”
CNC Model Fanuc 0i-MF P

SMART KT 420(L)
Prices and specifications are subject to change without notice.

INVESTMENT

Total Package List Price: KT 420L (BT30, 15K) $102,900.00

SMART PACKAGE: Included:
 15,000 rpm Spindle
 21 Tools
 Full Enclosed Splash Guard
 Coolant Bed Flush
 Rigid Tapping

VALUE PACKAGE: Included:

 Coolant/Air Gun
 Top Cover
 Spindle Oil Cooler
 21 Tools
 Coolant Thru Spindle Prep
