Used American Tool Works Hole Wizard 6X17
Radial Drills| $10,000.00 USD |

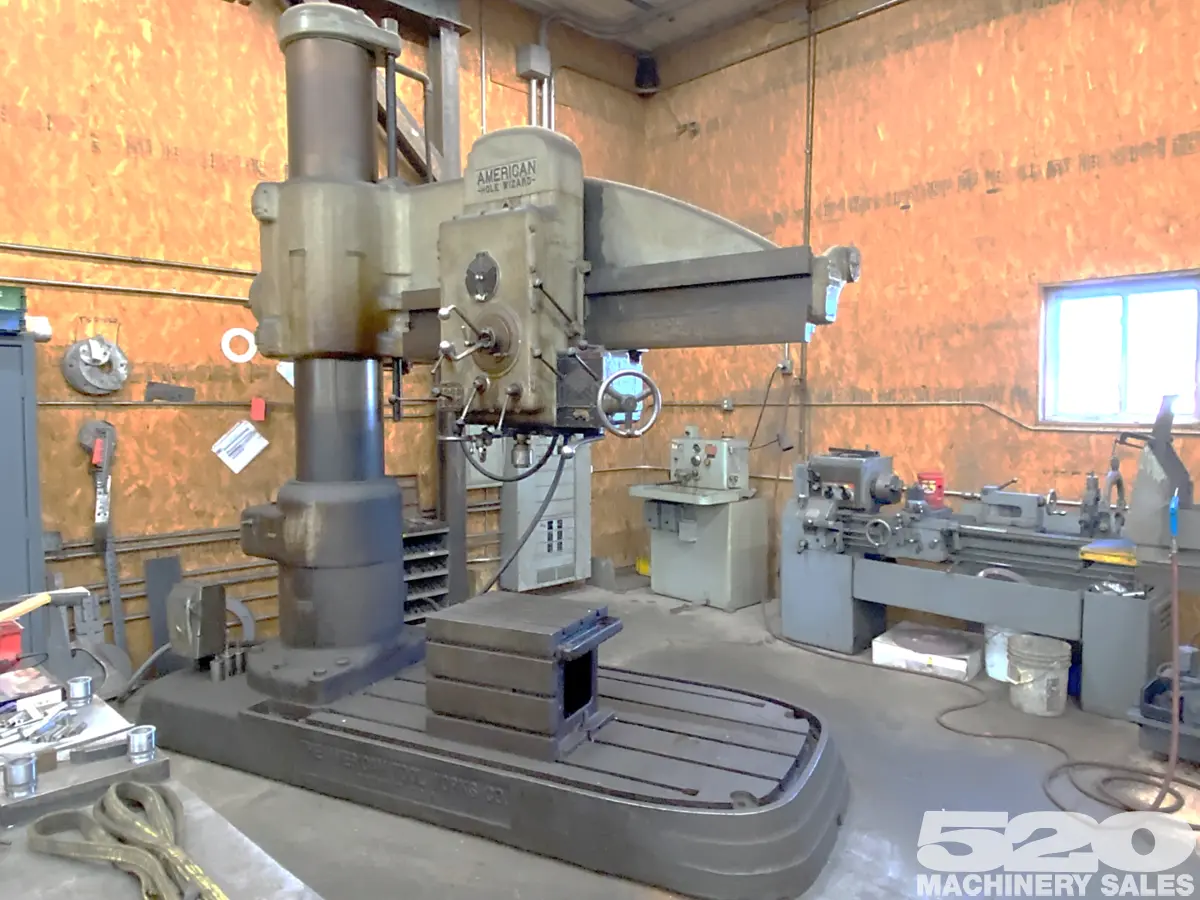

Used American Tool Works Hole Wizard 6X17. Unit is in good condition and can be inspected under power upon request.
| Arm Length | 6" |
| Column Dia. | 17' |
| Power | 15 hp |
| RPM | 1,600 RPM |
Serial# - 65657 (made in 1946)
3-phase 480v, 60amp, 600v AC,
Approximate Weight: 30,000-40,000 lbs
Arm Length – 6’
Column Diameter – 17”
Total Estimate Quill Travel – 24”
Maximum Distance, Spindle to Base - 6’ (approx.)
Minimum Distance, Spindle to Base - 1’ (approx.)
Table Size: 11”H x 4’W x 6’L
Spindle Taper: No. 5 Morse (assumption, not positive)
Spindle Speeds: 20-1,600 rpm
Spindle Motor: 15-30 HP (uncertain)
EQUIPPED WITH:
Coolant Pump in Base - Yes
Power Elevation - Yes
Power Head Traverse - Yes
Power Clamping for Head– Yes
Coolant Pump in Machine Base
Power Elevation
Power Head Traverse
Power Clamping for Head
