Guifil GHD-630 Shear

Sell Your GUIFIL GHD-630
Power Squaring Shears (Inch)
Manufacturer:
GUIFIL
Model:
GHD-630
Year:
1987
Stock #:
22665

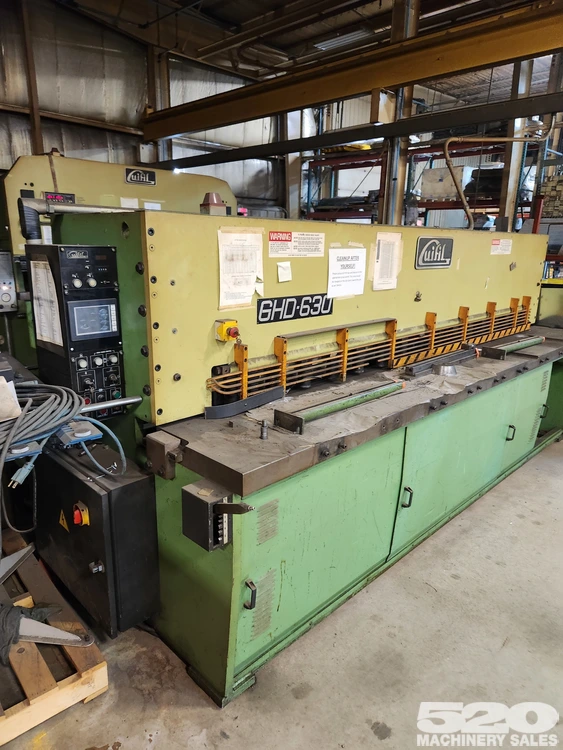

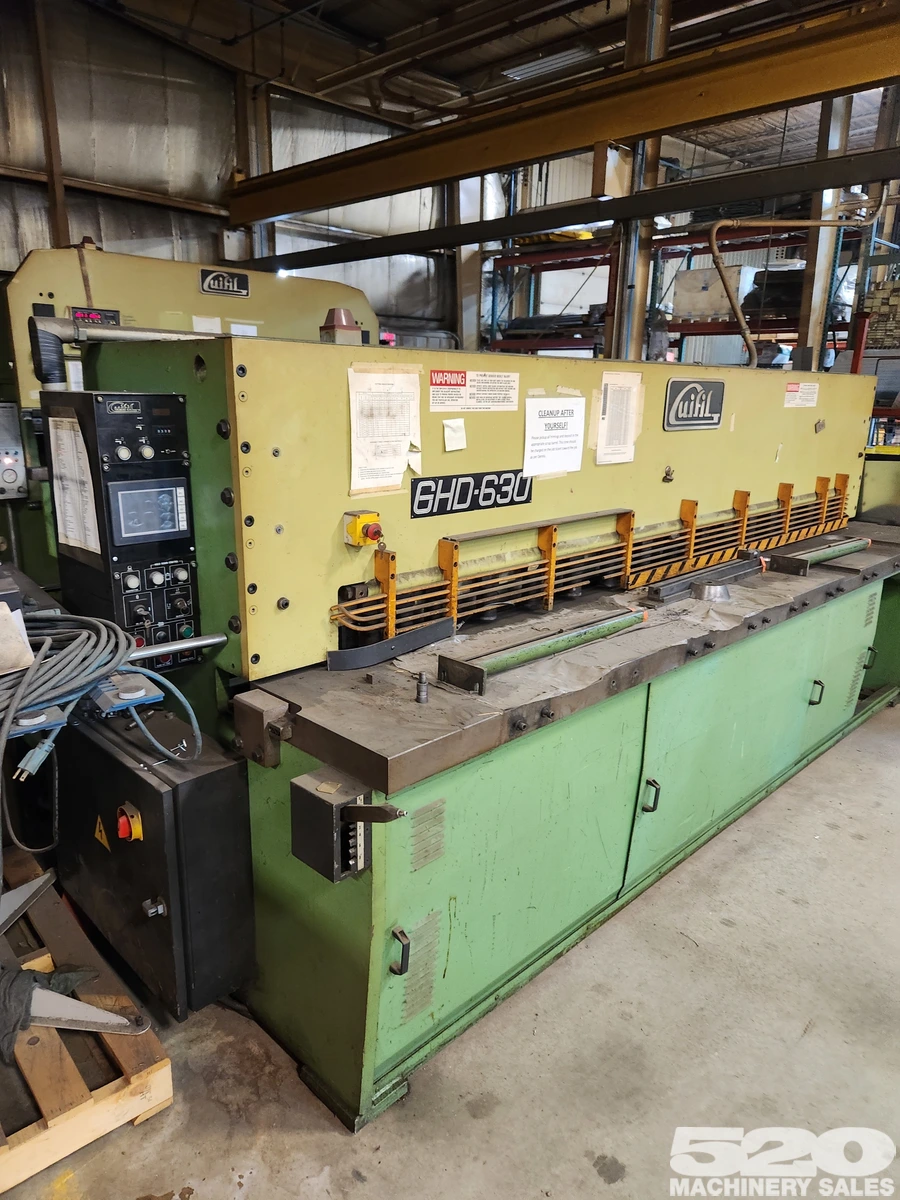

For sale: GUIFIL GHD-630 Power Squaring Shear, 1987 used condition with 122' blade, hydraulics, and 12 hp motor. Includes digital back-gauge, cutting controls, and updated PLC. Robust and ready for operation.
Length of Blade122'37.2 m
Hyd/MechHydHyd
Back Gauge32"812.8 mm
Power12 hp8.9 kW
SPM50 strokes/min.50 strokes/min.
Dimensions155" L-R x 85" F-B x 69.5" H155" L-R x 85" F-B x 69.5" H
Weight155" L-R x 85" F-B x 69.5" H155" L-R x 85" F-B x 69.5" H

Digital Back-gauge
Capacity: 10' x 1/4" mild steel
Length of knives: 122"
Distance between housings: 143"
Holddowns: 16
Rake angle: .5 degree minimum, then 1.0,1.5,2 and 2.7
Speeds approx.: 16 SPM @ maximum angle
50 SPM @ minimum angle
Floor to top of bed: 36", with 30 inch sheet supports in front that can be placed in multiple spots along the bed.

32" front-operated power back gauge with
control & readout
36" squaring arm
Electric foot switch
Push-buttons for start-stop and updated Allen Bradley PLC controller with touchscreen MMI.
Blade gap adjustment via hand lever (Knob is missing)
Cutting length & cutting angle control
Approx. 1/2 HP back gauge motor
Hydraulic pump driven by
12 HP (18KW) 1850 RPM 220/440/3/60 motor
Weight approx. 11,000 lbs.
Overall dimensions approx. 155" L-R x 85" F-B x 69.5" H

This equipment is currently unavailable. Similar equipment available now is shown below.
