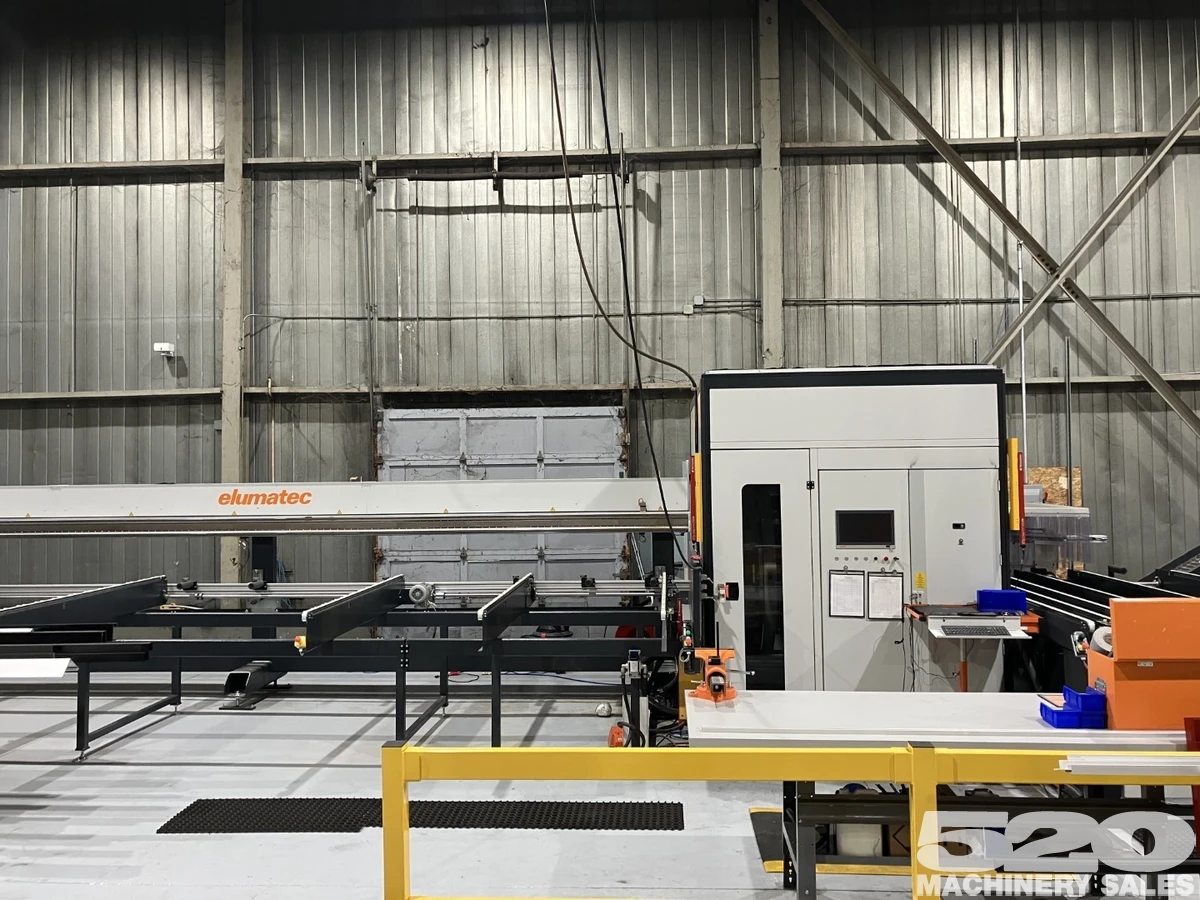

2022 Elumatec SBZ 628S Profile Machining Center

Max. profile cross-section (WxH) 200 x 160 / 160 x 200 mm
Min. profile cross-section
(depending on gripper position)
30 x 10 mm
Blank bar length 7,600 mm
Finished part length 350-4,600 mm
Short parts (50-150 / 150-350) -
Feed magazine
Shortest blank bar length 3,000 mm
Number of swing arms 5 (option for 9)
Mounting positions 10 (above 120 mm 5)
Infeed
Servo drive linear
Motorized gripper adjustment Y/Z
Gripper rotation Optional
Residual piece measurement -
Residual piece processing manual feeding < 3,000
Machining station
Axes 4
Router spindles 4 (servo-assisted)
Saw
Axes 2
Saw blades (diameter) 1 (650 mm)
Sawing angles 45° - 135° (pivoting)
Notching -
Outfeed clamping carriages
Axes 0
Cycle operation (short parts) -
Outfeed conveyor
Lifting station Yes
Number of swing arms 8
Outfeed conveyor width (options) 4,000 mm
