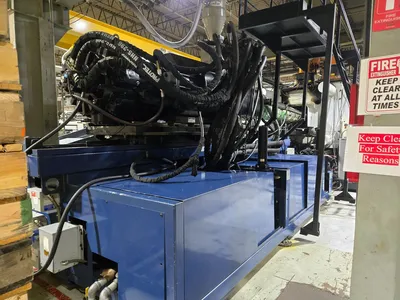

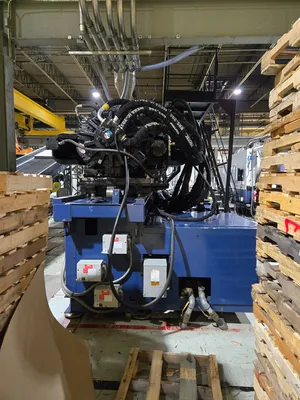

| Tonnage | 1,760 T | 1,596.647 t |
| Shot Size | 1,026 oz | 29,086.6 g |
| Horz/Vert | Horz | Horz |
| Dimensions | 40.7' X 13.4' X 10.6' | 40.7' X 13.4' X 10.6' |
| Weight | Approx: 225,000lbs | Approx: 225,000lbs |
CLAMP FORCE: 1,760 TONS (15,664 KN)
CLAMP STROKE (MAX): 94.9" (2,410 MM)
OPEN DAYLIGHT (MAX): 123.4" (3,135 MM)
MOLD THICKNESS (MIN-MAX): 28.5 – 67.9" (725 – 1,725 MM)
DISTANCE BETWEEN TIE BARS (HXV): 72.0 X 55.1" (1,830 X 1,400 MM)
PLATEN SIZE (HXV): 97.6 X 82.7" (2,480 X 2,100 MM)
EJECTOR STROKE: 15.7" (400 MM)
EJECTOR FORCE: 48.0 TONS (428 KN)
460V 3PH 60HZ
REBUILT HYDRAULICS ($300,000+)
REPLACED BARREL/SCREW
CONTROL: VAN DORAN UNIVERSAL CONTROL
ALL SPECIFICATIONS ARE ASSUMED TO BE CORRECT,BUT MUST BE CONFIRMED BY PURCHASING PARTY.
Tie Bar Puller for mold installation
Water manifolds
Air Blow 1-2
Air Blow 3-4
Mold Gates up to (8)
Configurable I/O (8)
Core Pull 1-2
Core Pull 3-4
Magnetic Mold clamp Interface
Ejector Plate Monitor
Robot Cell Kuka-KRC-30
Rebuild in 2022 (Cylinders):
tonnage cylinder
Injection cylinders
Travers Cylinders
Calipers cylinders
carriage cylinders
Caliper cylinders
Replace clamp Guide bushings
Rebuild in 2022 (Hydraulic System):
Replace all valves seals
Rebuild extruder Motor
Clean oil tank
Replace filters
Install all new pumps and Motor couplings
Rebuild in 2022 (Control Upgrade)
Install VDU control
Replace all wiring Harness
Rebuild in 2023:
Install New Screw and Barrel 215mm 25:1 LD
Install all new Heaters and TC
All machine rebuild supporting documents available upon request
