| X | 14.17" | 359.92 mm |
| Y | 12.99" | 329.95 mm |
| Z | 15.74" | 399.8 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 64 | 64 |
| Taper | BT40 | BT40 |
| Pallet-W | 11.8" | 299.72 mm |
| Pallet-L | 11.8" | 299.72 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc 16M) | CNC (Fanuc 16M) |
| Dimensions | 118 in x 69 in x 81 in | 118 in x 69 in x 81 in |
| Weight | 16500 lbs | 16500 lbs |
Specifications:
Pallet Size...............11.75" X 11.75"
Max Workpiece Weight......176 lbs
Maximum Workpiece Size....11.81" x 11.81" x 14.17"
X-Axis Travel.............14.17"
Y-Axis Travel.............13"
Z-Axis Travel.............15.74"
Spindle Motor.............10 HP
Spindle Taper.............BT-40 (CAT-40 Available)
Spindle Speed.............10,000 RPM
Rapid Traverse Rates......945 IPM
Feed Rates................236 IPM
Tool Changer..............62
Tool Change Time..........1 Second
Tool Change Chip Time.....5 Seconds
Dimensions................159 x 98 x 108
Weight....................23,148
Equipped With:

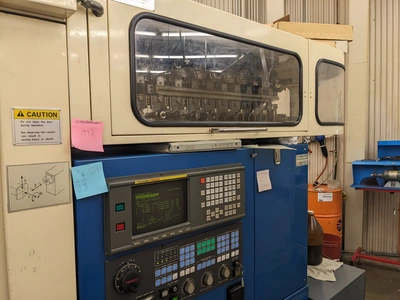

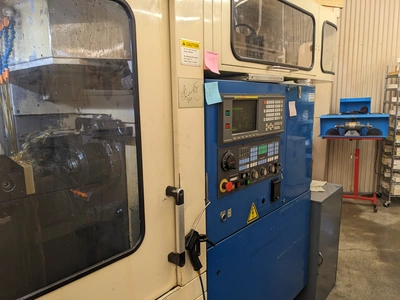

Fanuc CNC Control
10,000 RPM Spindle

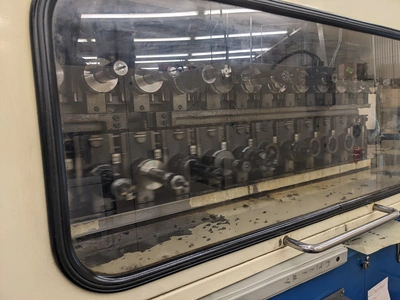

62 Station ATC

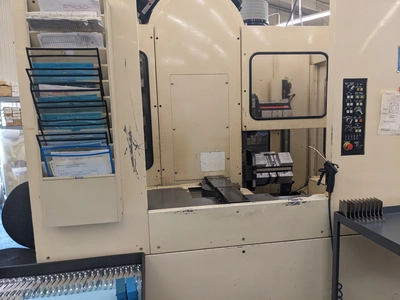

11 Station Pallet Pool
Auto Part Gauging
Tool Breakage Detection
Chip Conveyor
Equipped With:
Fanuc CNC Control
10,000 RPM Spindle
62 Station ATC
11 Station Pallet Pool
Auto Part Gauging
Tool Breakage Detection
Chip Conveyor
