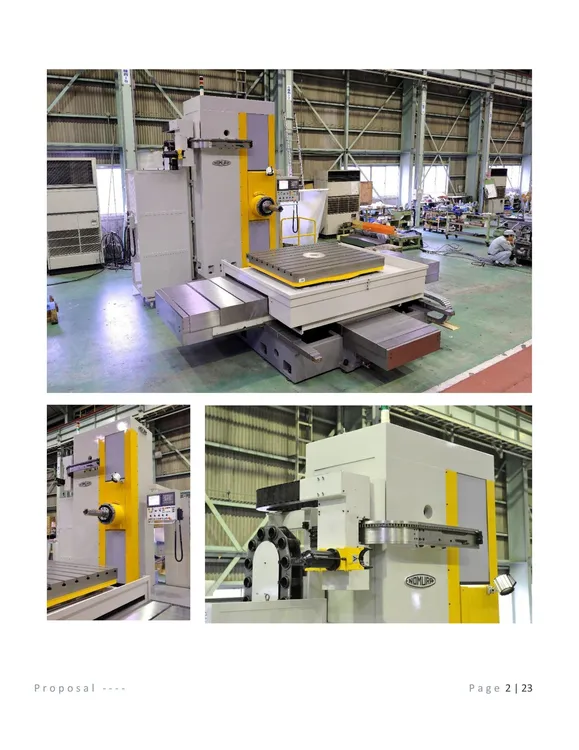

Nomura CNC Table Type Horizontal Boring and Milling Machine HBA-110T-R3
1. Standard specification of base machine
1.1
Spindle
Boring spindle diameter 4.33” 110mm
Spindle taper 7/24 Taper ISO-50
Milling spindle diameter 8.46” 215mm
Spindle motor 30/25HP 22/18.5kW
Spindle speed 5 – 4,000 rpm
Spindle speed change range 2 steps
Max. torque 2,530 ft.lbs. 3,447 Nm
Max. thrust 4,400 lbs. 2,000kg
1.2
Travels
X axis (Table cross travel) 78.74” 2,000mm
Y axis (Head stock vertical travel) 60” 1,525mm
Z axis (Table longitudinal travel) 55.11” 1,400mm
W axis (Boring spindle travel) 19.68” 500mm
Spindle center to table top -1.0”~59” -25~1,500mm
Table center to spindle nose (W=0) 23.62”~51.18” 600~1,300mm
(W=19.68”) 3.94”~31.50” 100~800mm
1.3
Table
Table size 55”x63” 1,400x1,600mm
Max. load 15,400 lbs 7,500kg
Table top T slots 0.87” 9 slots 22mm 9 slots
Auto table indexing 0.001° by CNC (full B axis)
1.4
Feed Motors
X axis (Table cross travel) 9.4HP 7.0kw
Y axis (Head stock vertical travel) 9.4HP 7.0kw
Z axis (Table longitudinal travel) 12.3HP 9.0 kw
W axis (Boring spindle travel) 6.0HP 4.5kw
B axis (Rotary table rotation) 6.0HP 4.5kw
1.5
Feed
Cutting feed (X, Y, Z, W) 275 ipm 7,000mm/min
Rapid feed (X, Y, Z, W) 472 ipm 12,000mm/min
Table revolution (B) 1.5 min-1
1.6
Accuracy
Positioning (X, Y, Z, W) ±0.0004” (Full stroke) ±0.01mm (Full stroke)
(B) ±4.0 sec. Scale feedback system
Repeatability(X, Y, Z, W) ±0.0002” ±0.005mm
(B) ±1.8 sec. Scale feedback system
1.7
Electricity
Power source 75kVA (208V / 3Ф / 60 Hz)
1.8
Dimensions
Total length, width, height, Weight 174” x 250” x 154” 4,400x6,350x3,910mm
51,810 lbs 12,500kg
P r o p o s a l - - - - P a g e 7 | 23
1.9 Ball Screw Diameter x pitch X axis dia.2.48” x0.394” dia.63mm x 10mm Y axis dia.2.48” x0.394” dia.63mm x 10mm Z axis dia.2.48” x0.394” dia.63mm x 10mm W axis dia.1.97” x0.394” dia.50mm x 10mm
2. Standard Accessories*
2.0 NC device (FANUC) Equipped
2.1 Operation panel and control panel Equipped
2.2 Built-in type chip conveyor (auger type) Equipped
2.3 Cutting fluid supply with 3 nozzles and collection device Equipped
2.4 Through spindle type coolant (100 psi) Equipped
2.5 Telescopic steel covers for bed, saddle and rail slide ways Equipped
Silicon rubber roll sheet cover for column Equipped
2.6 Headstock inside lubricant oil cooler Equipped
2.7 Oil hydraulic power unit Equipped
2.8 Working light (spot light type) Equipped
2.9 Disassembly and assembly tool kit Equipped
2.10 Installation parts Equipped
2.11 Scale feedback system for B axis Equipped
2.12 Signal light Equipped
2.12 Automatic power shut-off device Equipped
2.13 ATC Equipped
Tool storage capacity 40 tools
Tool Shank CAT-50 (MAS-50)
Retention knob MAS P-50T-1(45deg)
Max. tool weight 66#
Max. tool length 16”
Max. tool diameter (full chain/adjacent pot empty) Ø5”/ Ø9”
Tool selection Pot address random
Tool moment Max. 18.1 lb-inch
*Following Special Accessories are included as North American Package.
2.14 Lift-up chip conveyor (hinge type) Equipped
2.15 Automatic power shut-off device Equipped
2.16 Spindle Through Coolant Preparation Max. 300psi Equipped
