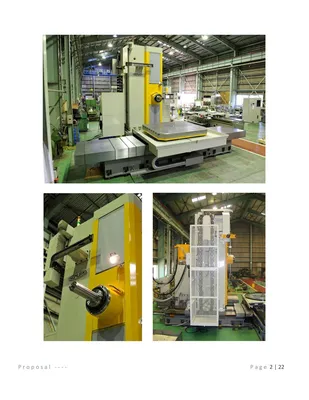

2025 Nomura HBA135P-R5 CNC Table Type Horizontal Boring and Milling Machine

Nomura CNC Table Type Horizontal Boring and Milling Machine HBA-135P-R5 1. Standard specification of base machine
1.1
Spindle
Boring spindle diameter 5.31” 135mm
Spindle taper 7/24 Taper ISO-50
Milling spindle diameter 10.03” 255mm
Spindle motor 60/55HP 45/37kW
Spindle speed 5 – 3,000 rpm
Spindle speed change range 3 steps
Max. torque 2,922 ft.lbs. 3,959 Nm
Max. thrust 6,600 lbs. 3,000kg
1.2
Travels
X axis (Table cross travel) 118.11” 3,000mm
Y axis (Head stock vertical travel) 90.05” 2,300mm
Z axis (Table longitudinal travel) 55.11” 1,400mm
W axis (Boring spindle travel) 27.55” 700mm
Spindle center to table top 0”~903.05 0~2,300mm
Table center to spindle nose (W=0) 27.55”~82.67” 700~2,100mm
(W=27.55”) 0”~62.99” 0~1,600mm
1.3
Table
Table size 78.74”x70.86” 2,000x1,800mm
Max. load 33,000 lbs 15,000kg
Table top T-slot width (Please reference page 17) 1.81” 9 slots 46mm 9 slots
Auto table indexing 0.001° by CNC (full B axis)
1.4
Feed Motors
X axis (Table cross travel) 12.0HP 9.0kw
Y axis (Head stock vertical travel) 8.0HP 6.0kw
Z axis (Table longitudinal travel) 12.0HP 9.0 kw
W axis (Boring spindle travel) 6.0HP 4.5kw
B axis (Rotary table rotation) 7.4HP 5.6kw
1.5
Feed
Cutting feed (X, Y, Z, W) 196.85 ipm 5,000mm/min
Rapid feed (X, Y, Z) 393.70 ipm 10,000mm/min
( W) 236.22 ipm 6.000mm/min
Table revolution (B) 1.38 min-1 (500deg / min)
1.6
Accuracy
Positioning (X, Y, Z) Scale feedback ±0.0002” (Full stroke) ±0.005mm (Full stroke)
( W) ±0.004” (Full stroke) ±0.01mm (Full stroke)
(B) ±4.0 sec. Scale feedback system
Repeatability(X, Y, Z, W) Scale feedback ±0.00012” ±0.003mm
(B) ±1.8 sec. Scale feedback system
1.7
Electricity Power source 108kVA (208V / 3Ф / 60 Hz)
1.8
Dimensions Total length, width, height 311” x 268” x 192” 7,900x6,805x4,880mm
Weight 88,200# 40,000kg
P r o p o s a l - - - - P a g e 7 | 22
1.9 Ball Screw Diameter x pitch X axis dia.2.48” x0.39”4” dia.63mm x 10mm x 10mm Y axis dia.2.48” x0.39” dia.63mm x 10mm x 10mm Z axis dia.3.15” x0.63” dia.80mm x 16mm x 10mm W axis dia.1.97” x0.31” dia.50mm x 8mm x 10mmx 10mm
2. Standard Accessories*
2.0 NC device (FANUC) Equipped
2.1 Operation panel and control panel Equipped
2.2 Built-in type chip conveyor (auger type) Equipped
2.3 Cutting fluid supply with 3 nozzles and collection device Equipped
2.4 Through spindle type coolant (100 psi) Equipped
2.5 Telescopic steel covers for bed, saddle and rail slide ways Equipped
Silicon rubber roll sheet cover for column Equipped
2.6 Headstock inside lubricant oil cooler Equipped
2.7 Oil hydraulic power unit Equipped
2.8 Working light (spot light type) Equipped
2.9 Disassembly and assembly tool kit Equipped
2.10 Installation parts Equipped
2.11 Scale feedback system for B axis Equipped
2.12 Signal light Equipped
2.12 Automatic power shut-off device Equipped
2.13 ATC Equipped
Tool storage capacity 60 tools
Tool Shank CAT-50 (MAS-50)
Retention knob MAS P-50T-1(45deg)
Max. tool weight 66#
Max. tool length 19.7”
Max. tool diameter (full chain/adjacent pot empty) Ø5”/ Ø9”
Tool selection Pot address random
Tool moment Max. 18.1 lb-inch
*Following Special Accessories are included as North American Package.
2.14 Lift-up chip conveyor (hinge type) Equipped
2.15 Automatic power shut-off device Equipped
2.16 Spindle Through Coolant Preparation Max. 300psi Equipped
Attachments:
0.Table Guard:
1.Layout Drawing: 3-2A0084
2.Foundation Drawing: 3-2A0085
3.Table Dimension:
4.Torque Chart:
5.Tool Shank and Pull Stud Drawing:
6.ATC Magazine
