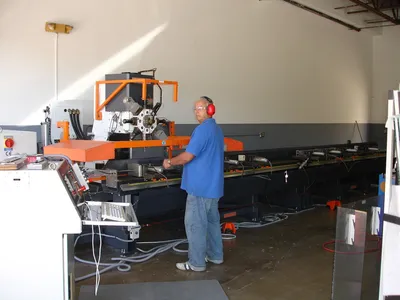

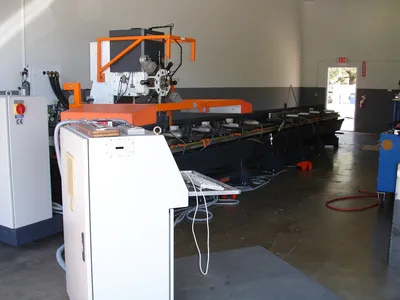

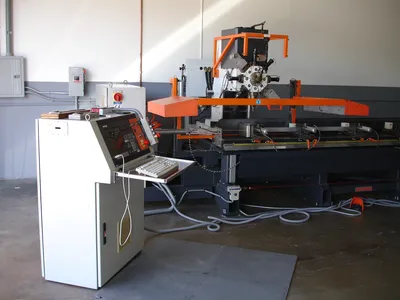

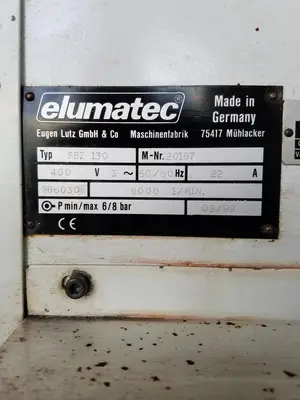

1999 Elumatec SPZ 130 3 Axis Profile Machining Center

The Elumatec SBZ 130 is an aluminum machining center that can process 3 sides of an
aluminum profile without moving the work piece. This is the perfect machine for
automatic door manufacturing with single or multiple locks or other industrial
applications.
Specifications:
Standard Table Area: 291.3”(7400)
Table Capacity, X Axis: Routing Capacity Face Side: 253.9” (6450mm)
Table Capacity, Y Axis: 11.81” (300mm)
Routing Capacity Top: 9”
Routing Capacity Front 7”
Table Capacity, Z Axis: 11.8” (380mm)
Routing Capacity Top: 11”
Step Over Capacity 7.3”
Maximum Spindle Speed:15,000 RPM
Power Output, Router Spindle: 8.1 HP, 400/480 volt, 3 phase
Maximum Profile Height/Step Over: Max 11”, Software Forced Front/Rear Machining-No
Step Over From Front to Rear of Profile. Head Runs Around Zero Point to Address
Machining Operations
Maximum Diameter of Tooling: 2.4”
Maximum Diameter of Disk Cutter: Manual - 7.87”
Automatic – 3.62”
Max Air Pressure: 102 PSI
Max Length of Tooling (Top): 7.9”
Max Dia. Shaft for ER-32 Collet: .78”
Max Dia. Shaft for ER-16 Collet: .511” Angle Head Capacity Collet
Max Dia. Shaft for 077 Collet: .394”
Tapping Capacity: Up to 0.375” @ 65% Thread (With Float Collet – ER32 Collet Size)
Tool Chuck: HSK F63
Tool Holder for Auto Tool Change: 8
Overall Machine Base Dimensions: 29’x8’x8’
Overall Machine Weight: 12,000 pounds
Equipped with:
•Software

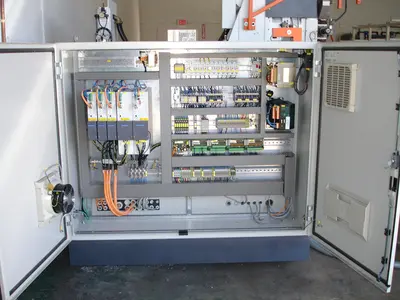

•PC Based Control
•Machining 3 Sides of Profile
•Linear Guides for X Y Z Travel

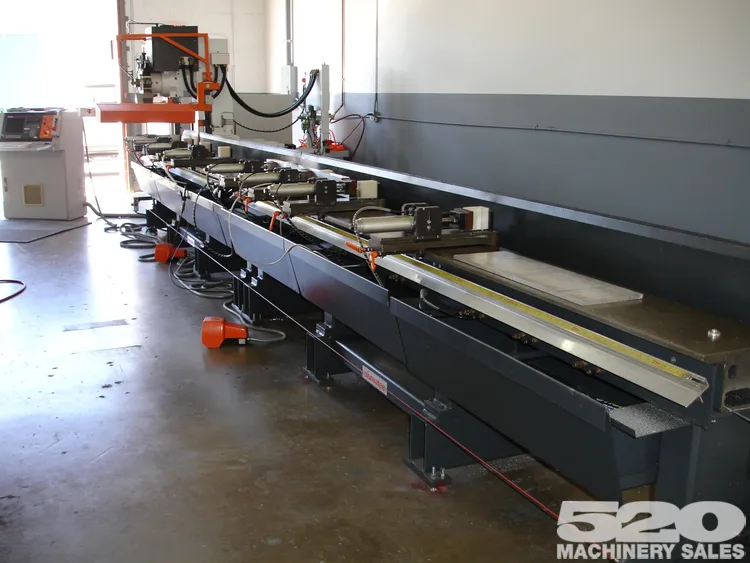

•Profile is Held by Adjustable Pneumatic Clamps
•Automatic Tool Changer with 6 Top Tool Holders & 2 Angle Head
•Horizontal Pneumatic Clamps
•Pulse Spray Mist Coolant System
•Tool Height Gauge
•Misc Tooling
