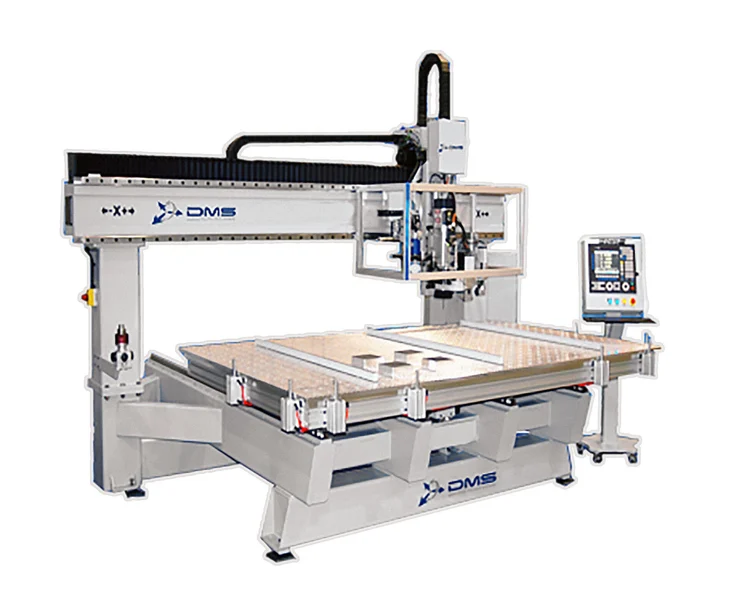

DMS TETON3

Vertical Machining Centers
Manufacturer:
DMS
Model:
TETON3
Condition:
New - In-Stock
The Teton3 combines the robust and innovative foundation of the Teton series with the streamlined efficiency of 3-axis machining. Tailored for precision and versatility in a more focused application range, the Teton3 is designed to deliver exceptional performance on a wide variety of materials, ensuring reliability and precision for every project. With customization options and dedicated support, the Teton3 is the ideal solution for manufacturers seeking high-quality, efficient CNC machining capabilities. • 3-Axis Precision: Tailored for detailed and efficient machining. • Versatility: Processes a wide range of materials. • Robust Design: Built for reliability and durability. • Customization: Meets specific production needs. • Professional Support: Comprehensive service and warranty.
X4.01'1,222.9 mm
Y5.01'1,527.7 mm
Z18"457.2 mm
Power24 hp17.9 kW
RPM24,000 RPM24,000 RPM
# ATC1010
Taper3030
Table-W4'1,219.2 mm
Table-L5'1,524 mm
# Axis33
ControlCNC (Fagor 8065)CNC (Fagor 8065)

Min – Max Axes Strokes * DMS standard configuration: X axis = Bridge axis
X: 4’/12′
Y: 5’/12′
Z: 457 (18″)
C: C-Axis optional

Operating Units and Spindles
Max Power (S1 / S6): 18kW / 21kW
Max rpm: 24000
Spindles Range (min-max kW)(S1): 4.5-18kW
Units Range: Hiteco MT200, MT201, PT300, PT400, PT500

Specifications
Transmission type: Spinning Ball Nut & Recirculating Ball Screw
Feedback encoders: Scales available as option
Motor Encoders: All Absolute
Machine Envelope (Table Size): Single Table: (4′ up to 12′) x (4′ up to 12′) Twin Table: (4′ up to 10′) x (4′ up to 12′)**
HMI + NCs: Fagor 8065

Dynamic Performances
Avg Speed (average 3 axis) inch/min: NA
Avg Acceleration inch/min2: NA

Max Accuracy: .0025″-.005″

Toolchanger Standard Option(s)
type: Rack-Carousel-Manual
max tot: 10
