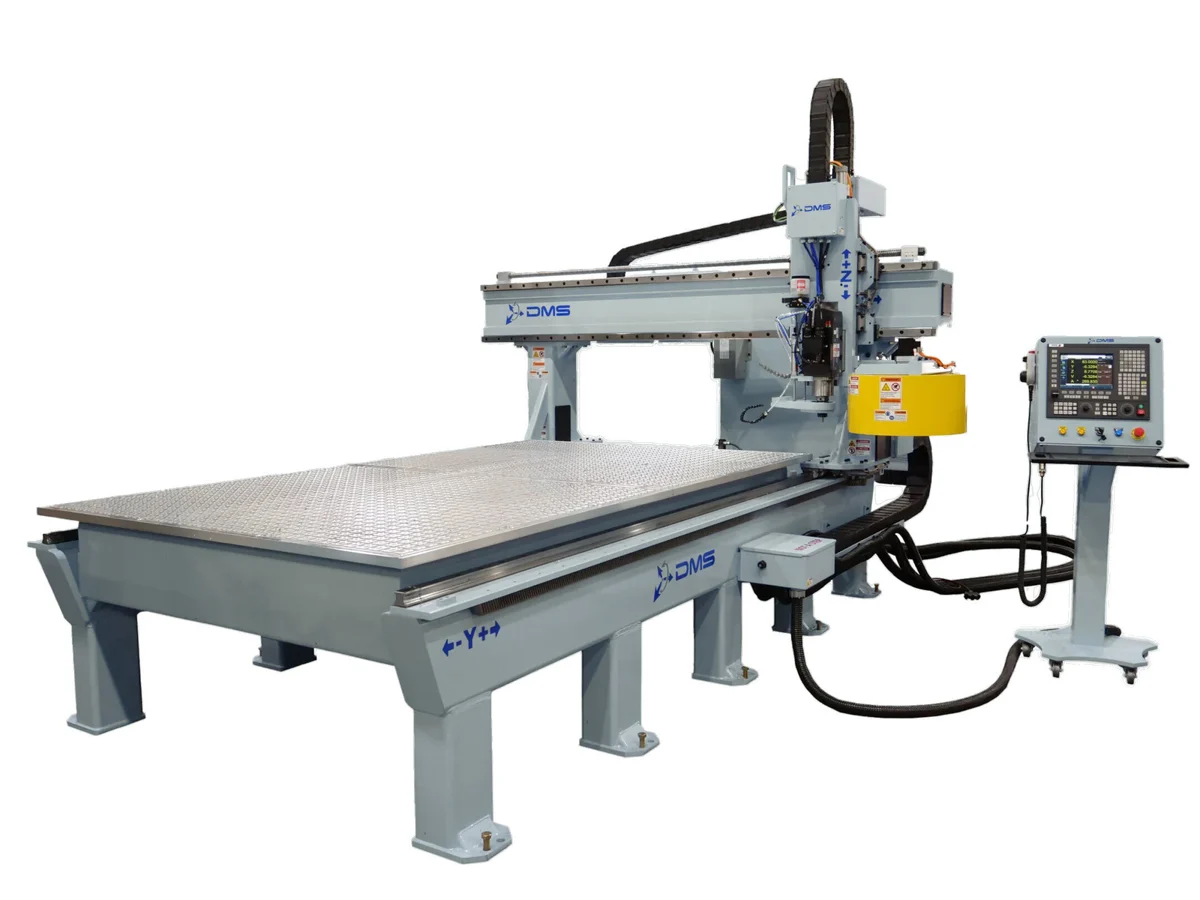

New DMS REDWOOD3 | Vertical Machining Centers
ConditionNew
New
Introducing the Redwood3, a pioneering evolution of the renowned Redwood series, now with a 3-axis design tailored for those who demand precision and flexibility in their manufacturing processes. This machine inherits the robust and reliable foundation of the DMS Redwood, yet it’s optimized for a broad spectrum of materials with a focus on efficiency and precision. The Redwood3 offers the perfect balance of high-speed performance and accuracy, enhanced by top-tier professional support and customization options to meet your specific production requirements. Elevate your manufacturing capabilities with the Redwood3 our most robust 3-axis platform.
• Precision Manufacturing: Optimized for accuracy in 3-axis cutting.
• Material Versatility: Effective on a wide range of materials.
• Continuous Operation: Built for reliability and endurance.
• Customization Flexibility: Options to tailor to specific needs.
• Expert Support & Warranty: Comprehensive service and protection.
Min – Max Axes Strokes * DMS standard configuration: X axis = Bridge axis
X: 5’/20′
Y: 5’/100′
Z: 914 (36″)/1220 (48″)
C: C-Axis optional
Operating Units and Spindles
Max Power (S1 / S6): 18kW / 21kW
Max rpm: 24000
Spindles Range (min-max kW)(S1): 4.5-18kW
Units Range: Hiteco MT200, MT201, PT300, PT400, PT500
Specifications
Transmission type: Rack & Pinion
Feedback encoders: Scales available as option
Motor Encoders: All Absolute
Machine Envelope (Table Size):
- Bridge Length: 5′, 6′, 7′, 8′, 10′, 12′, 15′
- Depth: multiples of 5′ up to 100′, 12′, 22
HMI + NCs: Fagor 8065
Dynamic Performances
Avg Speed (average 3 axis) inch/min: NA
Avg Acceleration inch/min2: NA
Max Accuracy: .002″-.005″
Toolchanger Standard Option(s)
type: Rack-Carousel-Manual
max tot: 10
