DMS MAMMOTH5

Vertical Machining Centers (5-Axis or More)
Manufacturer:
DMS
Model:
MAMMOTH5
Condition:
New - In-Stock

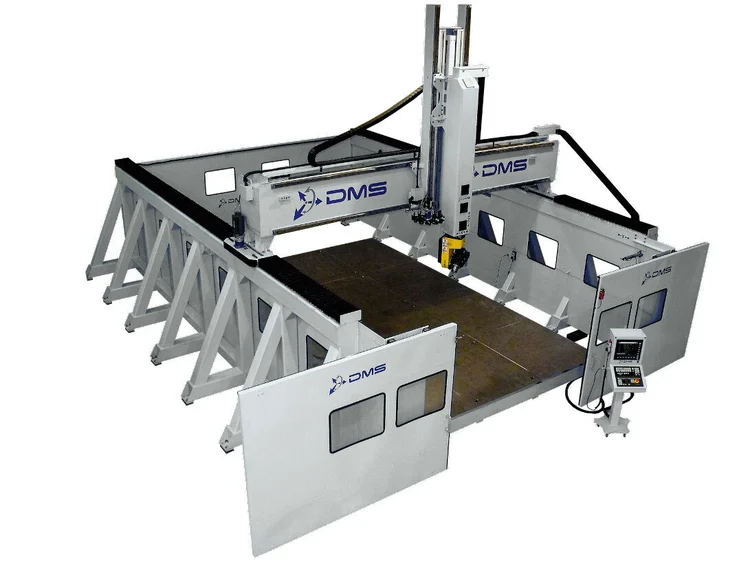

This 5-axis CNC router is a continuous-use, feature-rich, heavy-duty machining center designed to process a wide variety of applications, from light materials such as wood and foam to composites and ferrous and non-ferrous metals. This machining center has the option of sliding doors on both the front and back, allowing for easy loading/unloading of large materials. The universal fixture table improves productivity by reducing downtime between part runs.
X520'158,496 mm
Y5,100'1,554,480 mm
Z4,872"123,749 mm
# Axis55
Power27 hp20.1 kW
RPM24,000 RPM24,000 RPM
# ATC101218101218
Taper3030
ControlCNC (FAGOR)CNC (FAGOR)

Min – Max Axes Strokes * DMS standard configuration: X axis = Bridge axis
X: 5’/20′
Y: 5’/100′
Z: 1220 (48″)/1830 (72″)
B:(+/-) 115° / 130°
C:DMS: (+/-) 363° (opt. Continuous)
- Hiteco: (+/-) 320°

Operating Units and Spindles
Max Power: 20kw
Max rpm: 24,000
Spindles Range (min-max kW): 10-20kw
Units Range:Tilt K Plus, Tilt H Plus, Tilt V, Tilt W, DMS Standard Yoke, DMS Cast Yokes

Specifications
Transmission type: Rack & Pinion
Feedback encoders: Scales available as option
Motor Encoders:
- All Absolute
- *Exception = Rotaries are incremental w/ Continuous C option
Machine Envelope (Table Size):
- Bridge Stroke: 5′, 10′, 12′, 15′, 20′
- Depth: multiples of 5′, 12′, 22
HMI + NCs: Fagor+ Fagor

Dynamic Performances
Avg Speed (average 3 axis) inch/min: 1333
Avg Acceleration inch/min2: 60
Max Accuracy: .002″-.005″

Toolchanger Max Capacity:
type: Rack-Carousel-Man
max tot: 10/12/18
