New DMS KLONDIKE3 | Vertical Machining Centers
ConditionNew
New

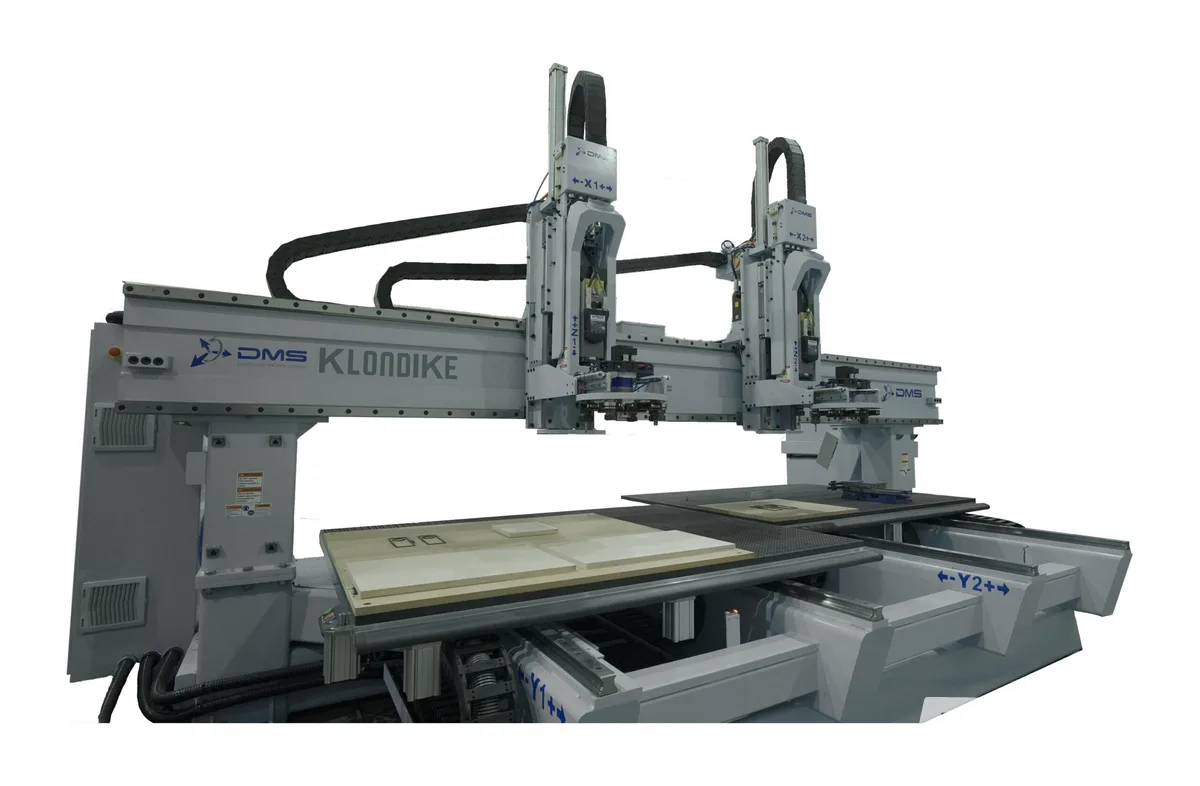

This twin moving table, multi-channel, multi-spindle CNC router is the answer to today’s complex manufacturing challenges. The Klondike incorporates an intuitive UI designed for experienced and new operators alike. The machine can act as either 2, 3, or 4 unique machines or pendulum process up to 4 spindles simultaneously. Increased feed rates and accelerations allow this machine to increase thru put and decrease processing times.
Min – Max Axes Strokes * DMS standard configuration: X axis = Bridge axis
X: 6096 (240″)
Y: 3048 (120″)
Z: 610 (24″)
C: N/A
Operating Units and Spindles
Max Power (S1 / S6): 13kW / 15kW
Max rpm: 24000
Spindles Range (min-max kW)(S1): 10-13kW
Units Range: Hiteco PT300, PT400
Specifications
Transmission type: Rack & Pinion
Feedback encoders: N/A
Motor Encoders: All Absolute
Machine Envelope (Table Size): Twin Table: 5’x(8′ or 10′) (6′ or 8′ or 10′)x(5′ or 6′)
HMI + NCs: Fagor 8065
Dynamic Performances
Avg Speed (average 3 axis) inch/min: N/A
Avg Acceleration inch/min2: N/A
Max Accuracy: .0025″-.005″
Toolchanger Standard Option(s)
type: Carousel-Manual
max tot: 8
