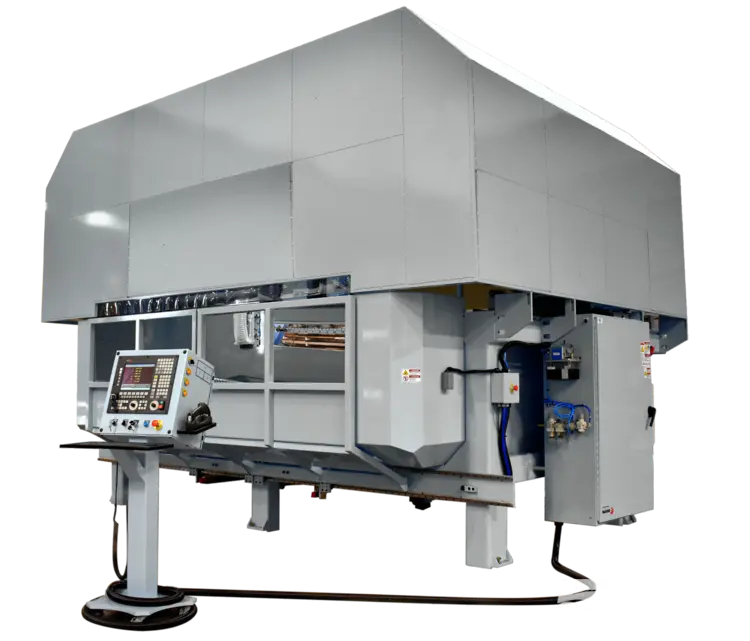

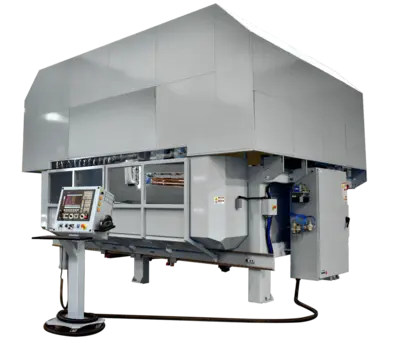

DMS GLACIER3

Vertical Machining Centers
Manufacturer:
DMS
Model:
GLACIER3
Condition:
New - In-Stock
Introducing Glacier3, a remarkable evolution in the Glacier series now with 3-axis precision. This fully enclosed machine leverages the robust foundation of the Glacier’s advanced technology, tailored for exceptional accuracy and versatility in a simpler 3-axis format. Glacier3 is engineered to streamline operations across diverse materials, ensuring reliability and precision for every project. Offering customization to fit your specific needs, backed by unparalleled support, the Glacier3 is your partner in elevating manufacturing efficiency. • 3-Axis Precision: Focused accuracy for streamlined operations. • Versatility in Materials: Capable of processing a wide range of materials with ease. • Reliability: Engineered for consistent performance in demanding environments. • Customization Options: Adaptability to meet specific production requirements. • Dedicated Support: Robust after-sales service and warranty coverage.
X4'1,219.2 mm
Y3'914.4 mm
Z30"762 mm
Power24 hp17.9 kW
RPM24,000 RPM24,000 RPM
# ATC1010
Taper3030
Table-W4'1,219.2 mm
Table-L3'914.4 mm
# Axis33
ControlCNC (Fagor 8065)CNC (Fagor 8065)

Min – Max Axes Strokes * DMS standard configuration: X axis = Bridge axis
X: 4’/12′
Y: 3’/6′
Z: 750 (30″)
C: C-Axis optional

Operating Units and Spindles
Max Power (S1 / S6): 18kW / 21kW
Max rpm: 24000
Spindles Range (min-max kW)(S1): 8-18kW
Units Range: Hiteco MT200, MT201, PT300, PT400, PT500

Specifications
Transmission type: Spinning Ball Nut & Recirculating Ball Screw
Feedback encoders: Scales available as option
Motor Encoders: All Absolute
Machine Envelope (Table Size): 4’x3′, 5’x’5′, 10’x5′, 12’x(3′ or 6′)
HMI + NCs: Fagor 8065

Dynamic Performances
Avg Speed (average 3 axis) inch/min: 35560 (1400″)/min
Avg Acceleration inch/min2: NA

Max Accuracy: .0025″-.005″

Toolchanger Standard Option(s)
type: Rack-Manual
max tot: 10/12
