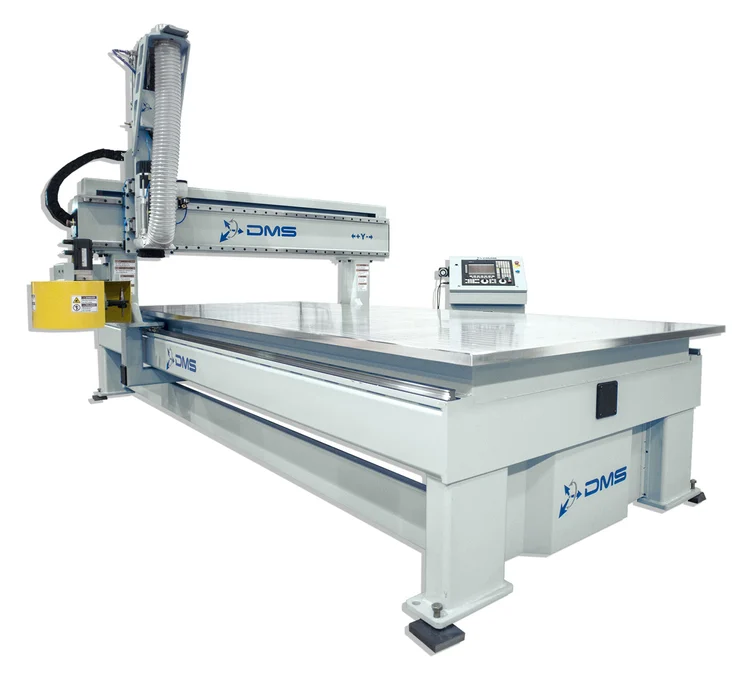

DMS BRYCE3

Vertical Machining Centers
Manufacturer:
DMS
Model:
BRYCE3
Condition:
New - In-Stock
The Bryce3 emerges as a price and performance-leading 3-axis CNC machine, aligning the core strengths of the Bryce and Pinnacles series. This machine is engineered for versatility, offering precision machining across a broad spectrum of materials. With enhanced performance features, the Bryce3 is designed to meet the diverse needs of modern manufacturing, providing reliability, ease of use, and efficiency. It’s the go-to solution for businesses seeking to elevate their production capabilities with a machine that offers both high quality and adaptability. • Enhanced Versatility: Suitable for a wide range of materials. • Precision Machining: High accuracy in 3-axis operations. • Focused Strengths: best in class for essential 3 axis machining/routing. • Reliability and Efficiency: Optimized for consistent performance. • Ease of Use: User-friendly interface for streamlined operation.
X5.06'1,542.3 mm
Y5.01'1,527.7 mm
Z12"304.8 mm
Power24 hp17.9 kW
RPM24,000 RPM24,000 RPM
# ATC1010
Taper3030
Table-W5'1,524 mm
Table-L5'1,524 mm
# Axis33
ControlCNCCNC

Min – Max Axes Strokes * DMS standard configuration: X axis = Bridge axis
X: 5’/6′
Y: 5’/12′
Z: 305 (12″)/406 (16″)
C: C-Axis optional

Operating Units and Spindles
Max Power (S1 / S6): 13kW/ 15kW
Max rpm: 24000
Spindles Range (min-max kW)(S1): 4.5-13kW
Units Range: Hiteco MT200, MT201, PT300, PT400

Specifications
Transmission type: Rack & Pinion
Feedback encoders: N/A
Motor Encoders: All Absolute
Machine Envelope (Table Size): 5’x(5′, 10′, 12′, 15′, 20′, 25′)
6’x(10′, 12′)
HMI + NCs: Fagor 8065

Dynamic Performances
Avg Speed (average 3 axis) inch/min: NA
Avg Acceleration inch/min2: NA

Max Accuracy: .0025″-.005″

Toolchanger Standard Option(s)
type: Rack-Carousel-Manual
max tot: 10
