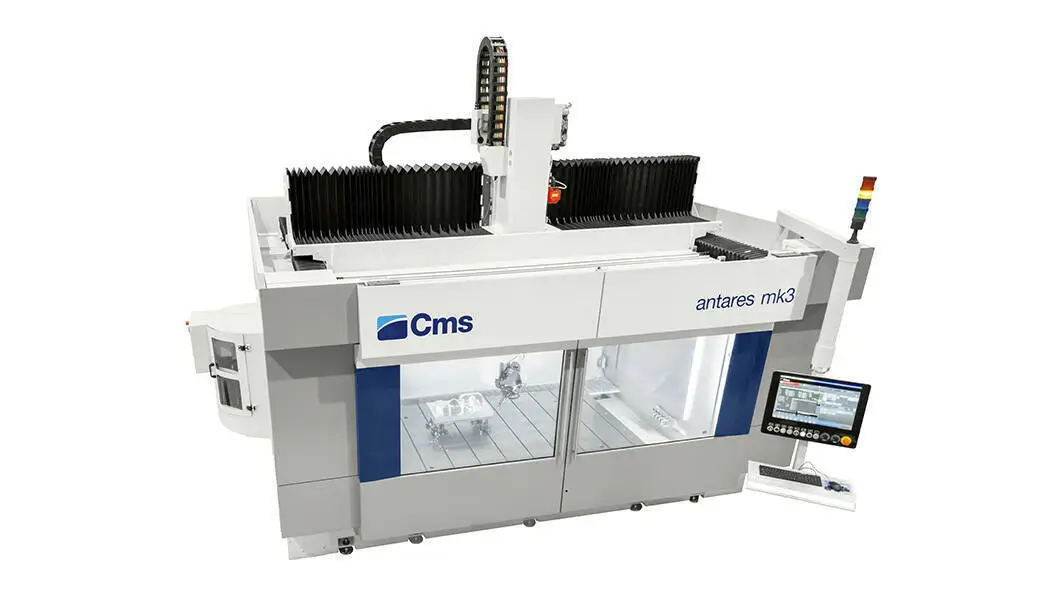

New CMS ANTARES MK3 26/28 | Vertical Machining Centers (5-Axis or More)
ConditionNew
New
Advantages:
MORE COMPACT: Esigned to ensure maximum performance in small production areas. The machine can be transported fully assembled, resulting in lower delivery and installation times.
QUIETER: Roof bellows or full cabinet to contain dust, liquid and noise generated during fabrication.
CHIP REMOVAL: system that ensures complete extraction of chip from the machine.
ANTARES MK3: WORKING UNITS AND ELECTROSPINDLES:
PX5/HX5 - 12_24
B, C STROKES: ........ B=+\- 120°, C=+\- 270°
RAPID B, C: .......... 9000°/min
NOMINAL POWER (S1): .. 12 kW
MAX POWER: ........... 14 kW
MAX RPM: ............. 24.000 rpm
MAX TORQUE: .......... 11,1 Nm
TOOL CHANGER: ........ MANUAL AND AUTOMATIC
TOOL HOLDERHSK: ...... 63 F
COOLING:.............. LIQUID
ANTARES MK3: WORKING UNITS AND ELECTROSPINDLES:
PX5/HX5 - 15_24
B, C STROKES: ........ B=+\- 120°, C=+\- 270°
RAPID B, C: .......... 9000°/min
NOMINAL POWER (S1): .. 15 kW
MAX POWER: ........... 17 kW
MAX RPM: ............. 24.000 rpm
MAX TORQUE: .......... 13,8 Nm
TOOL CHANGER: ........ MANUAL AND AUTOMATIC
TOOL HOLDERHSK: ...... 63 F
COOLING:.............. LIQUID
ANTARES MK3: WORKING UNITS AND ELECTROSPINDLES:
PX5/HX5 - 20_24 (sincronous)
B, C STROKES: ........ B=+\- 120°, C=+\- 270°
RAPID B, C: .......... 9000°/min
NOMINAL POWER (S1): .. 20 kW
MAX POWER: ........... 22,3 kW
MAX RPM: ............. 24.000 rpm
MAX TORQUE: .......... 20,1 Nm
TOOL CHANGER: ........ MANUAL AND AUTOMATIC
TOOL HOLDERHSK: ...... 63 F
COOLING:.............. LIQUID
WORKING PLANS
DIMESIONS X (mm): ... 2500x2800
