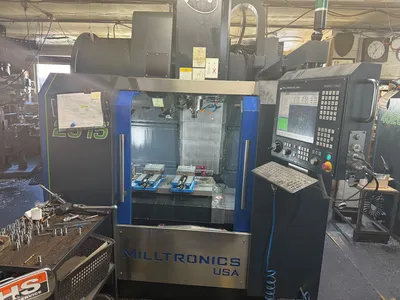

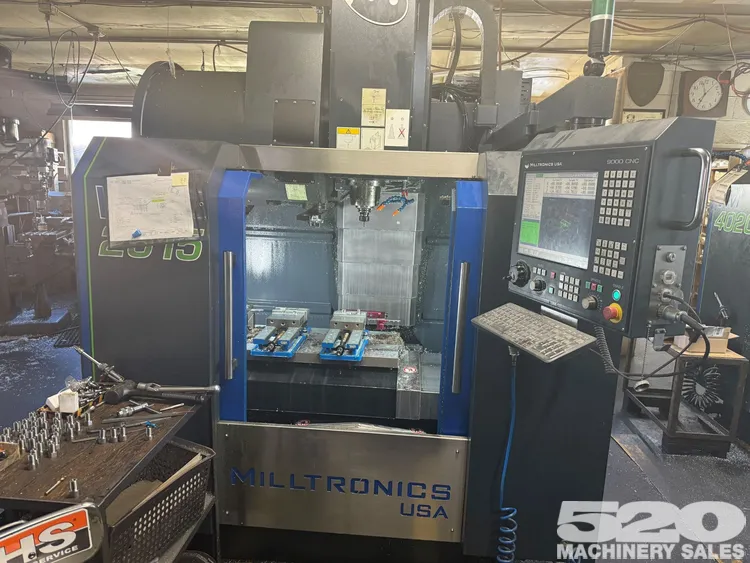

2021 Milltronics VM2515 CNC Vertical Machining Center W/ Through Spindle Coolant

CAPACITY:
X axis travel 25” (635 mm)
Y axis travel 15” (381 mm)
Z axis travel 20” (508 mm)
Table size 30” x 16” (762 mm x 406 mm)
Allowable table load 3140 lbs. (1420 kg)
T-slot size – 3 total 0.71” (18 mm) on 3.94” (100 mm) centers

SPINDLE:
Spindle gage line to table distance 4" - 24" (101 - 610 mm)
Way Cover to spindle center 16" (406 mm)
Spindle taper BIG-PLUS® ISO No. 40
Spindle speed 10,000 RPM
AC spindle motor 15/10 HP (11/7.5 kW)
Spindle torque 54 ft-lbs. (73 Nm)

AUTOMATIC TOOL CHANGER:
ATC Type Double arm
Number of tools 20
Tool shank CT40 – Supports BIG-PLUS® Tools
Pull stud MAS 60° Retention Knob Style
CT-Flange 40 Taper
Max. tool diameter / adjacent location empty 3.5" / 5" (89 mm / 127 mm)
Max. tool length 9.8" (250 mm)
Max. tool weight 15 lbs. (7 kg)

MOTION:
X/Y, Z axis rapid traverse rate 945 IPM (24 m/min)
Max. cutting feed rate 500 IPM (12.7 m/min)
Least command increment 0.0001" (0.001 mm)
Position accuracy* +/- 0.0002" (+/- 0.005 mm)
Repeatability* 0.0002" (0.005 mm)
X axis thrust (peak) 1735 lbs. (7.8 kN)
Y axis thrust (peak) 1735 lbs. (7.8 kN)
