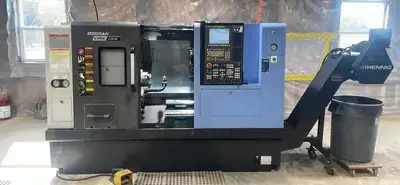

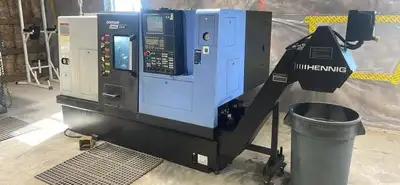

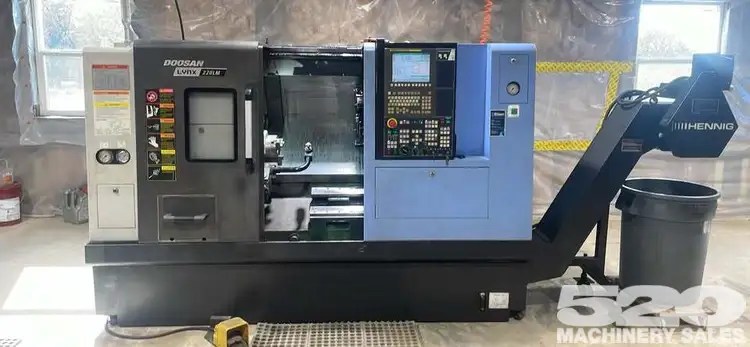

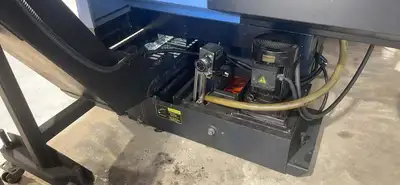

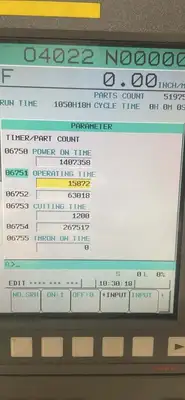

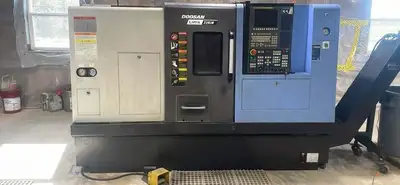

2015 Doosan Lynx 220LMA With Tailstock and Live Tooling

SPECIFICATIONS

CAPACITY:
Swing over bed 20.0"
Swing over carriage 11.4"
Maximum turning diameter 9.8"
Maximum turning length 20.0”

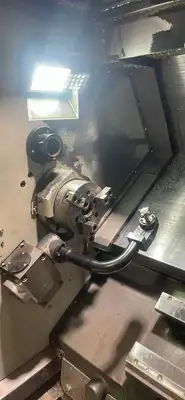

SPINDLE:
Spindle speed - RPM 60 - 6,000
Spindle nose A2-5
Draw tube I.D. 2.047”
Spindle bore diameter 2.40”
AC spindle motor (15 min. rating) 20 HP
Maximum spindle torque (15 min. rating) 70.4 ft-lbs

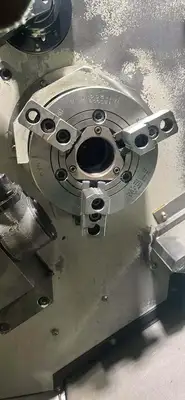

Standard chuck size 6.5”

C-AXIS:
Minimum programmable angle (degrees) .001
Rapid traverse rate (RPM) 200
C-axis repeatability +/- .006 deg.
C-axis positioning accuracy .0167 deg.

BED, SADDLE & CROSS SLIDE:
X axis travel 6.9"
Z axis travel 21.6”
Angle of slant bed 30 degrees
X axis guideway span 7.5”
Z axis guideway span 11.8"
Tailstock guideway span 7.7”
X axis rapid traverse rate 1,181 IPM
Z axis rapid traverse rate 1,417 IPM
X axis ball screw diameter 1.1"
Z axis ball screw diameter 1.3"
X axis feed thrust (continuous/intermittent) 1,398 / 2,237 lbs
Z axis feed thrust (continuous/intermittent) 1,165 / 1,864 lbs
X axis repeatability + 0.00008"
Z axis repeatability + 0.00012"

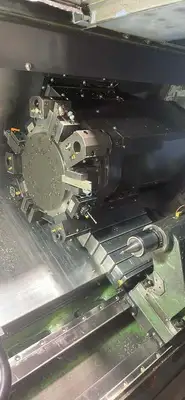

TURRET:
Number of turret stations 12
Number of index positions 24
Tool holder type BMT 45P
Turning tool shank size .75”
Boring bar diameter 1.25"
Turret index time (next station swivel time) 0.15 sec.
Tool selection Bi-directional
Turret index repeatability + .0005 degree
