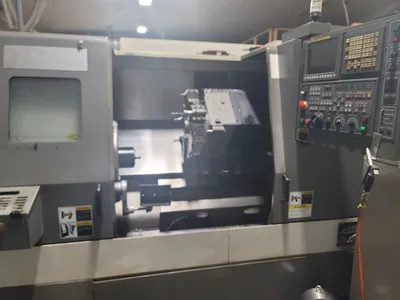

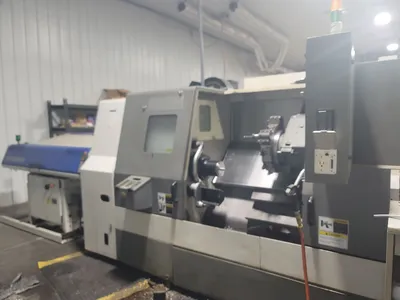

2011Samsung SL-30C/1000 CNC Turning Center

CAPACITY
Swing over the bed 25.59”
Swing over the cross slide 18.90”
Maximum turning diameter 15.75”
Maximum turning length 41.34”

SPINDLE
Chuck size 12”
Spindle nose A2-8 (ASA)
Main spindle motor 30 / 25 hp
Spindle speed 2,500 rpm with 12” chuck
Bore diameter 4.13”
Draw tube ID 3.58”
Spindle torque (30 minute rating) 628.54 ft.-lbs.
Spindle drive method Belt

BED, SLIDE & CARRIAGE
X axis travel 9.06”
Z axis travel 43.30”
Rapid traverse (X / Z) 709 ipm / 945 ipm
Guide ways (X / Z) Box Way
Bed structure 45o Slant bed
Ball screws diameter (X / Z) 1.10” / 1.57”
Repeatability (X / Z) +0.00012” / +0.00039”

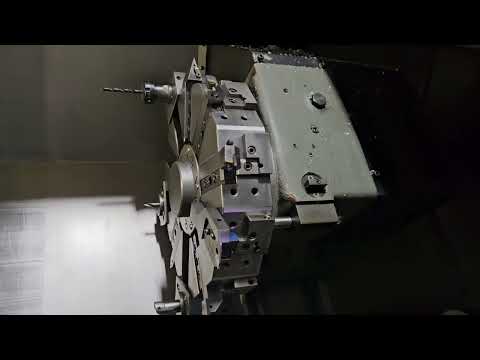

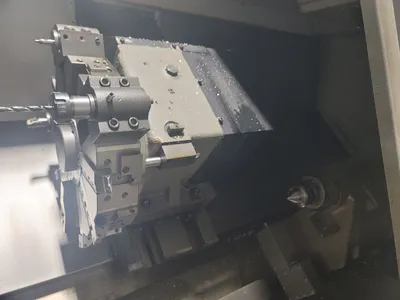

TURRET
Number of tool stations 12 Tools (12) OD (12) ID
Turret indexing speed (1 station) 0.25 Second
Curvic coupling 2 Piece hydraulic clamp and index
Curvic coupling diameter / Clamp force 8.27” / 6,404 lbs.
Tool size (turning and facing) 1” – Wedge clamp type
Tool size (boring bar maximum diameter) 2”
Turret index repeatability +0.00012”

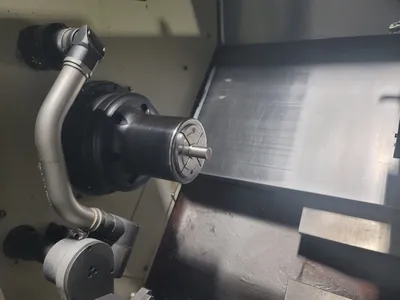

TAILSTOCK
Tailstock center (Taper) MT #4 (built-in)
Quill diameter 4.33”
Quill travel (by hydraulic) 3.94”
Maximum thrust of quill 1,586 lbs.

COOLANT SYSTEM
Coolant pump motor 1.2 hp (65 psi)
Coolant tank capacity 67.63 gal.
System type Removable / Independent
