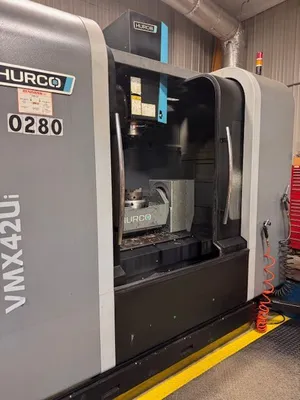

2014 Hurco VMX42Ui CNC 5-Axis Vertical Machining Center

VMX42Ui Machine Specifications
Travels & Capacity
X, Y, Z Axis Travel 42 x 24 x 20.5 in (1,067 x 610 x 520 mm)
A-Axis Travel +30°/-110°
C-Axis Travel 360°
Spindle Nose to Table (Min-Max) 3.5 in / 24 in (90 mm / 610 mm)
Table Diameter 15.7 in (399 mm)
Max Weight on Rotary/ Trunnion Table 550 lbs (250 kg)
T-Slot Size 6 x .48 in x 60° (6 x 12 mm x 60°)

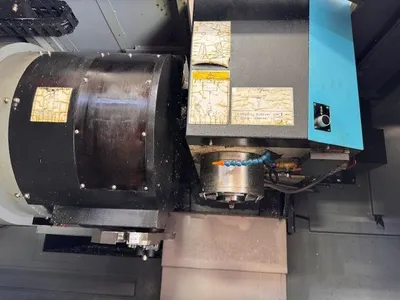

Spindle
Max. Spindle Speed 12,000 rpm
Peak Spindle Motor 20 hp (15 kW)
Spindle Torque (peak - 1 min) 176.1 ft. lbs @ 720 rpm (238.8 Nm @ 720 rpm)
Tool Changer
Tool Type CAT 40 (CAT, BT, DIN 40)
Number Of Tools 40
Max Tool Diameter 3.0 in (76 mm)
Max Tool Length 11.8 in (300 mm)
Max Tool Weight 15.4 lb (7 kg)
Feedrates
Rapid Traverse X,Y,Z Axis 1,496, 1,496, 1,260 in/min (38, 38, 32 m/min)
Max Programmable Feedrate 1,260 in/min (32 m/min)
Rapid Traverse A, C Axis 25 rpm
Size
Max. Operating Floor Space 181.1 x 146.4 in (4,600 x 3,718 mm)
Machine Height 122.5 in (3,111 mm)
Machine Weight 15,752 lb (7,260 kg)
Electrical
Power Rating/ Full Load KVA 31 KVA
