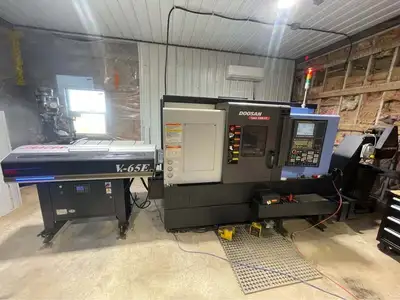

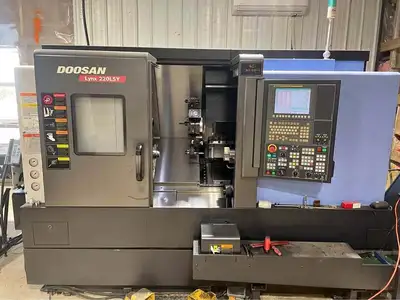

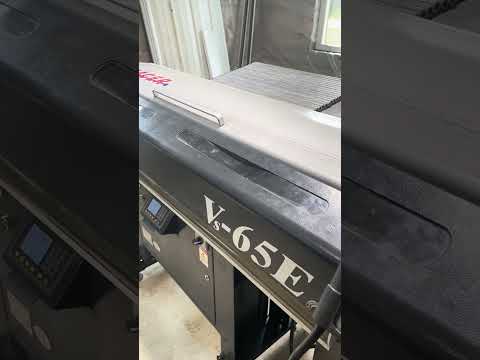

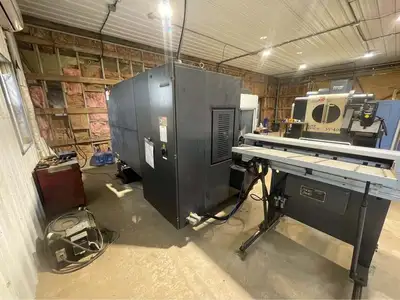

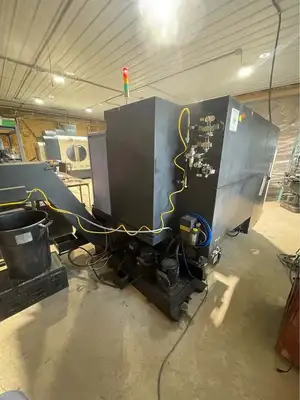

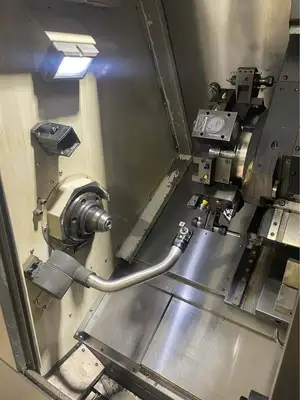

2014 Doosan Lynx 220LSYC CNC Turning Center with "Y" Axis Live Tooling and Sub-Spindle

SPECIFICATIONS
CAPACITY:
Swing over bed (600mm) 23.6"
Swing over carriage (400mm) 15.7"
Maximum turning diameter (300mm) 11.8"
Maximum work length (510mm) 20.0”
Distance between main & sub spindle nose (Lynx 220LSYA / LSYC) (750/768.5mm) 29.5/30.25”


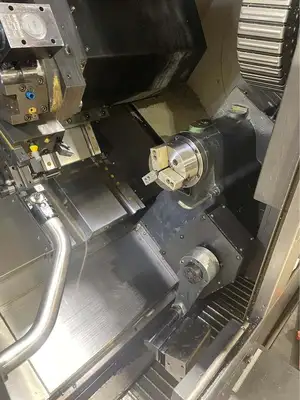

SPINDLE: Lynx 220LSYA Lynx 220LSYC
Spindle speed - RPM 60 - 6,000 45 - 4,500
Spindle nose A2-5 A2-6
Draw tube I.D. (52mm) 2.047” (68mm) 2.67”
Spindle bore diameter (61mm) 2.40” (76mm) 2.99”
AC spindle motor (30 min. rating) (15kW) 20 HP (15kW) 20 HP
Maximum spindle torque (30 min. rating) (127Nm) 93.6 ft-lbs (169Nm) 124.6 ft-lbs
Standard chuck size (170mm) 6.5” (210mm) 8”

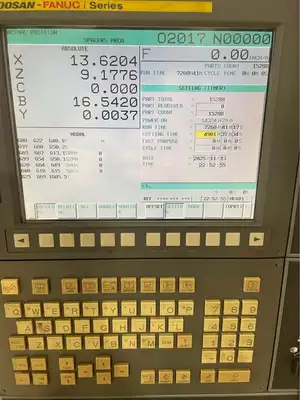

C-AXIS:
Minimum programmable angle (degrees) .001 .001
Rapid traverse rate (RPM) 200 200
C-axis contouring torque (Max. without brake) (127Nm) 93 ft-lbs (169Nm) 124 ft-lbs
(Min. with low brake) (72Nm) 53 ft-lbs (107Nm) 78.9 ft-lbs
C-axis braking torque (main spindle) (511Nm) 376 ft-lbs (572Nm) 421 ft-lbs
C-axis repeatability +/- .006 deg. +/- .006 deg.
C-axis positioning accuracy .0167 deg. .0167 deg.

BED, SADDLE & CROSS SLIDE:
X axis travel (205mm) 8.07"
Z axis travel (560mm) 22.0”
Angle of slant bed 30 degrees
X axis guideway span (308mm) 12.12”
Z axis guideway span (390mm) 15.3"
Tailstock guideway span (227mm) 8.9”
X axis rapid traverse rate (30 m/min) 1,181 IPM
Z axis rapid traverse rate (36 m/min) 1,417 IPM
X, Y and Z-axis ball screw diameter (32mm) 1.3"
X and Y-axis feed thrust (continuous/intermittent) (6,220 / 9,953N) 1,398 / 2,237 lbs
Z axis feed thrust (continuous/intermittent) (7,069 / 11,310N) 1,589 / 2,542 lbs
X axis repeatability (+.002mm) + 0.00008"
Z axis repeatability (+.003mm) + 0.00012"

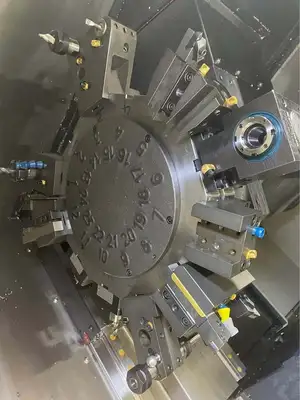

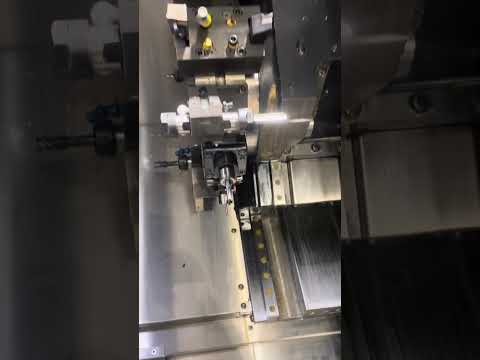

TURRET:
Number of turret stations 12
Number of index positions 24
Tool holder type BMT 45
Turning tool shank size (metric turret 20mm) .75”
Boring bar diameter (metric turret 32mm) 1.25"
Boring bar diameter, sub spindle (metric turret 20mm) .75”
Turret index time (next station swivel time) 0.11 sec.
Tool selection Bi-directional
Turret index repeatability + .0005 degree
