| Chuck Size | 8" | 203.2 mm |
| Swing | 17" | 431.8 mm |
| Machining Length | 48" | 1,219.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Live Tooling | No | No |
| Y-Axis Milling | No | No |
| Sub Spindle | No | No |
| # of Turrets | 1 | 1 |
| Turning Dia | 22" | 558.8 mm |
| Power | 18 hp | 13.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Tailstock | Yes | Yes |
| Control | CNC (MILLTRONICS 8200-B) | CNC (MILLTRONICS 8200-B) |
| Dimensions | 120" x 83" x 80" | 120" x 83" x 80" |
| Weight | 6,000lbs | 6,000lbs |
Capacity:
X-axis travel - 11"
Y-axis travel - 44.5"
Swing over bed - 17"
Swing over gap - 25.9"
Gap distance - 12.75"
Swing over cross slide - 7.48"
Spindle:
Spindle nose - A1-5
Spindle bore - 2.05"
Spindle range - 100 to 4000 rpm
AC spindle motor - 18/12 HP (peak/cont)
Tailstock:
Tailstock quill travel - 6"
Tailstock quill diameter - 2.55"
Tailstock quill taper - No. 4 MT

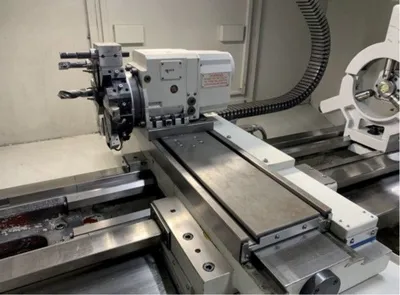

Automatic Turret:
Number of tools - 8
Tooling size - .75"
Boring bar capacity - 1.25"
Tool selection - B-directional
Motion:
X, Z axis rapid traverse rate - 500 ipm
Max cutting feed rate - 100 ipm
X-axis ball screw diameter - 1"
Z-axis ball screw diameter - 1.57"
General:
Machine height - 80"
Floor space required - 120" x 83"
Machine weight - 6000 lbs.
Power required - 23 KVA / 60 amps
Voltage required - 208/240 volts / 3 phase

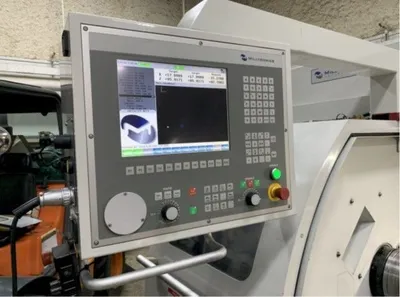

Milltronics 8200-B CNC Control

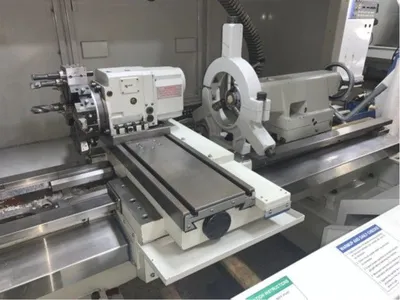

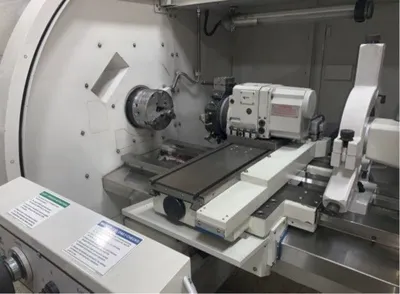

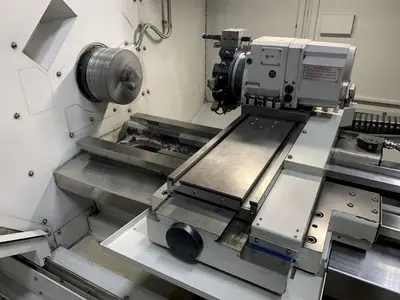

8 Position Auto Indexing Turret

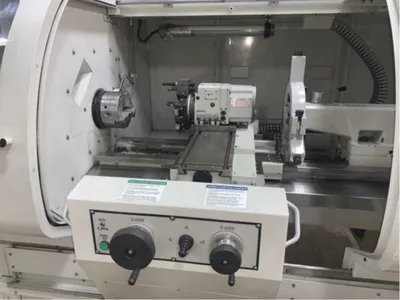

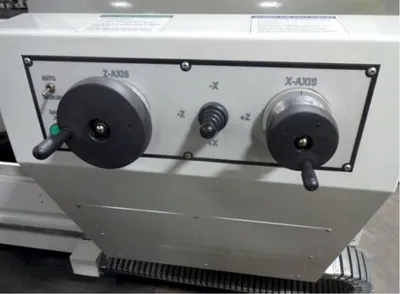

Dual Hand Wheels

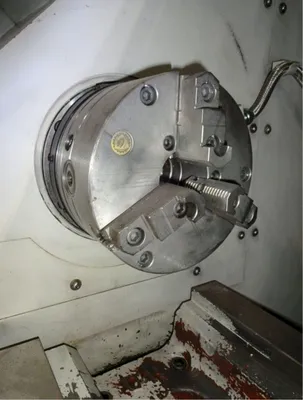

8" Bison 3-Jaw Chuck
Steady Rest
Tailstock
Auto Lubrication
Coolant Pump
