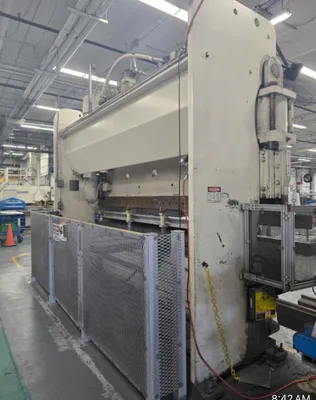

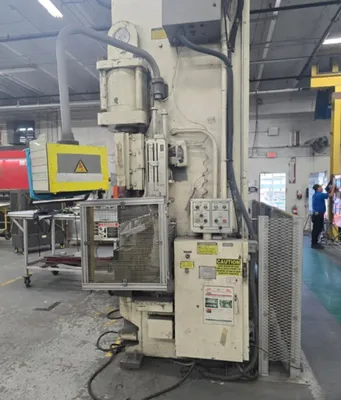

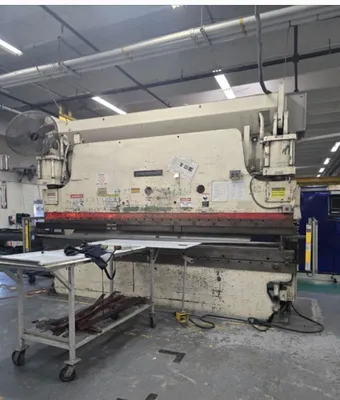

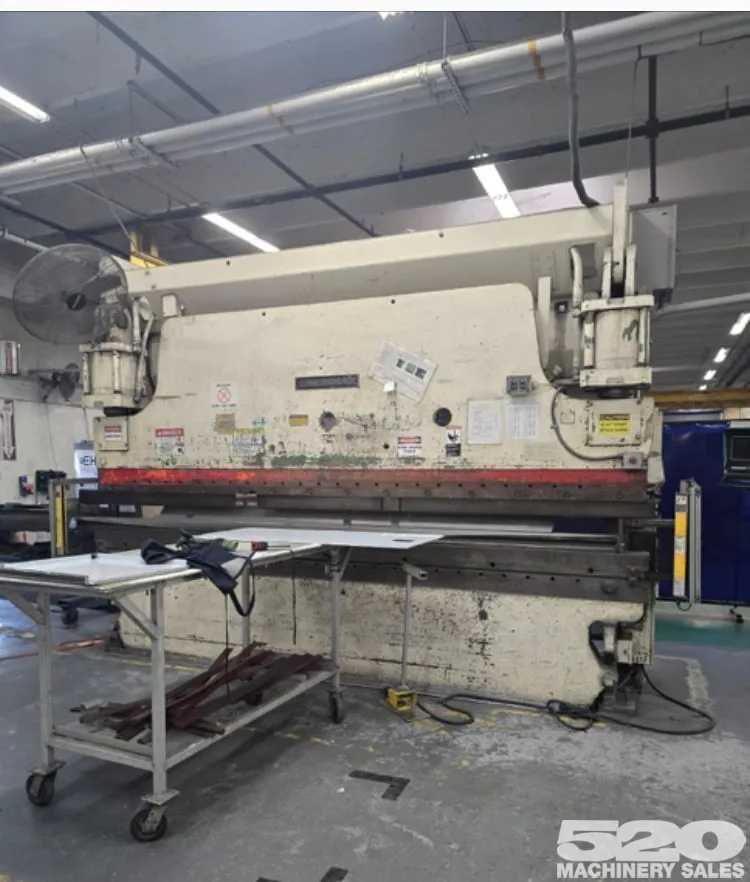

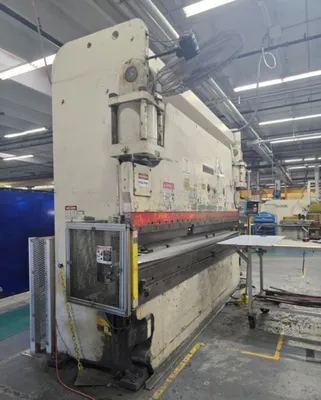

CINCINNATI INC 230CBx12 Hydraulic Press Brake

Tonnage Capacity: 230 tons
Overall Bending Length (bed/ram length): 14 feet (some listings note 12 feet effective working length, but overall is typically 14')
Distance Between Housings (clear working width): 12 feet 6 inches (12' 6") or approximately 150–152 inches
Stroke Length: 10 inches
Open Height (daylight): Approximately 17 inches
Closed/Shut Height: Approximately 7 inches
Throat Depth: Approximately 8 inches (some list 203 mm / 8")
Motor Power: Typically 25–30 HP (depending on configuration and voltage)
Design: Flush/floor-mounted or bed plate below grade

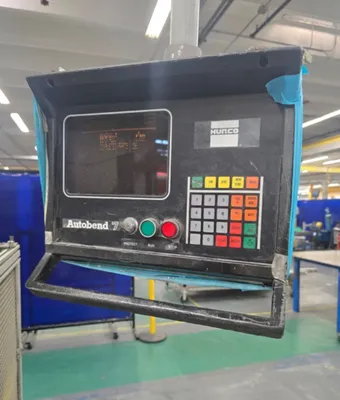

Common Features (on many used units): Dual palm buttons, foot pedal control, tonnage control, multiple depth stops, and often equipped with CNC back gauges (e.g., Hurco Autobend 5/7, single or multi-axis)
Approximate Weight: 29,000–33,000 lbs
Typical Bending Capacity Example: Around 12' × 1/4" mild steel (varies by material and tooling)
