| X | 20" | 508 mm |
| Y | 20" | 508 mm |
| Z | 25" | 635 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 21 | 21 |
| Taper | BT-40 | BT-40 |
| Table-W | 20.5" | 520.7 mm |
| Table-L | 27.5" | 698.5 mm |
| # Axis | 3 | 3 |
| Control | CNC (Acramatic A2100) | CNC (Acramatic A2100) |
Spindle speed 8000 rpm
BT40 Spindle Taper

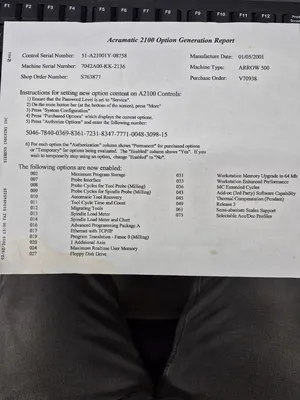

Acramatic A2100 CNC Control
Maximum Program Storage
Probe Interface
Probe Cycles For Tool Probe
Automatic Tool Recovery
Tool Cycle Time and Count
Migrating Tools
Spindle Load Meter and Chart
Advanced Programming Package "A"
Ethernet with TCP/IP
Program Translation (Fanuc O Milling)
Additional Axis
Maximum Realtime User Memory
Floppy Disk Drive
Workstation Memory Upgrade to 64 MB
Workstation Enhanced Peformance
MC Extended Cycles
Add-on 3rd Party Software Compatability
Thermal Compsensation
Release 3
Semi-Absolute Scales
Selectable ACC/ DEC Profiles
This equipment has been sold. Similar equipment available now is shown below.
