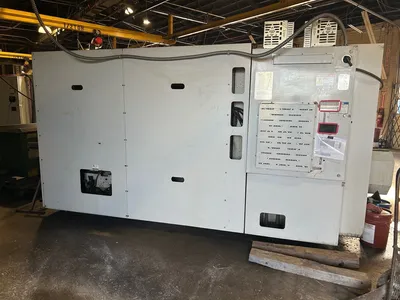

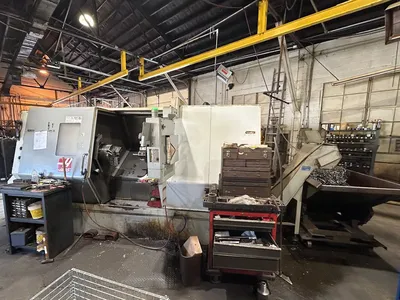

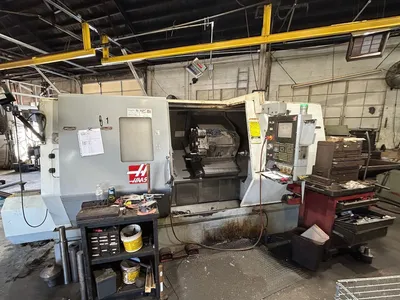

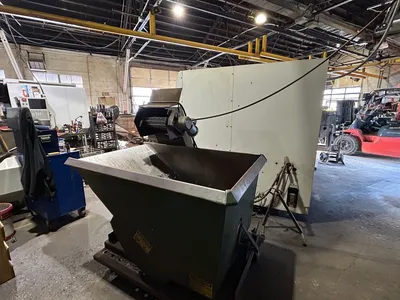

2005 Haas SL40T CNC Turning Center With Programmable Tailstock

STANDARD MACHINE FEATURES, SL-40:
• Cutting Capacity 25.5" x 44" (648 mm x 1118 mm)
• 40" (1016 mm) Swing • 40 hp (30 kw) Spindle
• Heavy-Duty Sheetmetal Enclosure • Automatic Lubrication System
• 10-Position Bolt-on Tool Turret • Tool Load Monitoring
• Spindle Speed 2400 rpm • 5 Spare M-Functions

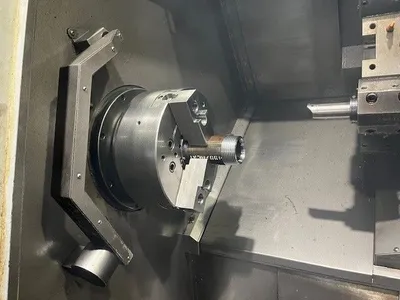

• Chuck Size 15" (381 mm) • Brushless Motors
• Flood Coolant System •
• USB port

Other Features Include:
• Embedded coolant collection tray • Direct-coupled servo motors
• High-precision spindle • Massive ribbed castings
• Rigid tapping • Double wall safety door

STANDARD MACHINE SPECIFICATIONS

MACHINE
Machine Max Height 86" (2184 mm)
Machine Max Width 189.50" (4813 mm)
Machine Max Depth 24" (610 mm)
Machine Weight 25,000 lb (11,340 kg)
Coolant Capacity 77 U.S. gallons (291 liters)
Air Required 4 scfm at 100 psi (113 L/min at 6.9 bar)
Power Required 28 kVA (28 kVA w/Big Bore Option)
Volts/Phase 200-250 VAC, 3-phase, 50-60 Hz

SPINDLE (SAE) w/BIG BORE OPTION
Spindle Speed 0 to 2400 rpm 1400 rpm
Spindle Torque 1400 ft-lb @ 150 rpm 1400 ft-lb @ 150 rpm
Peak Horsepower 40 hp 40 hp
Spindle Nose A2-8 A2-11
Spindle Bore Ø4.62" Ø7.080"
Draw Tube Bore Ø4.06" Ø6.496"
Power Required 28 kVA 28 kVA

SPINDLE (Metric) w/BIG BORE OPTION
Max Speed 2400 rpm 1400 rpm
Max Torque 1898 Nm @ 150 rpm 1898 Nm @ 150 rpm
Max Power Rating 30 kw 30 kw
Spindle Nose A2-8 A2-11
Spindle Bore Ø117.3 mm Ø179.8 mm
Draw Tube Bore Ø103.1 mm Ø165 mm
Power Required 28 kVA 28 kVA
CAPACITIES (SAE) w/BIG BORE OPTION
Swing Diameter 40"
Chuck Size 15" optional up to 24"
Bar Capacity 4" 7.08" (6.5" w/draw tube)"
Between Centers 51" 51"
Max Cutting Diameter 25.5" 25.5"
Maximum Cutting Length 44" 44"
w/standard workholding 42.5" 42.5"

CAPACITIES (Metric) w/BIG BORE OPTION
Swing Diameter 1016 mm
Chuck Size 381 mm optional up to 610 mm
Bar Capacity 102 mm 179.8 mm (165 mm w/draw tube)
Between Centers 1295 mm 1295 mm
Max Cutting Diameter 648 mm 648 mm
Maximum Cutting Length 1118 mm 1118 mm
w/standard workholding 1080 mm 1080 mm

TRAVELS & FEEDRATES
X Axis Travels 17" (432 mm)
Z Axis Travels 44" (1118 mm
X Axis Max Thrust 4000 lb (17,793 N)
Z Axis Max Thrust 6200 lb (27,579 N)
Rapids on X 710 in/min (18 m/min)
Rapids on Z 710 in/min (18 m/min)

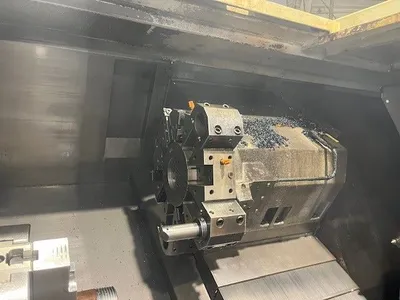

TURRET
Number of Tools 10
OD vs ID Tools Any combination
Tool Size (OD Turning) 1.25 (32 mm)

ACCURACY
Positioning ±0.0002" (±0.0051 mm)
Repeatability ±0.0001" (±0.0025 mm)
