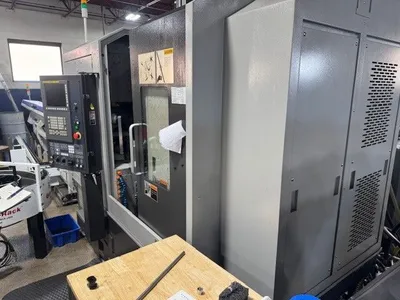

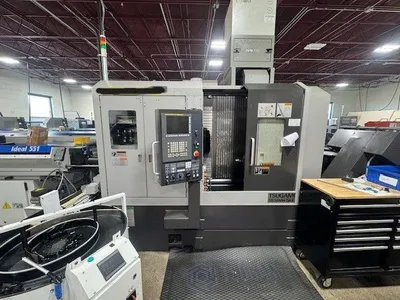

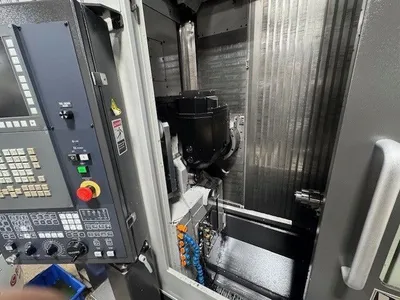

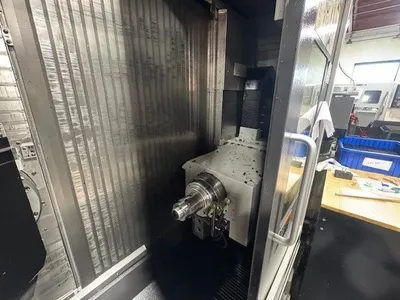

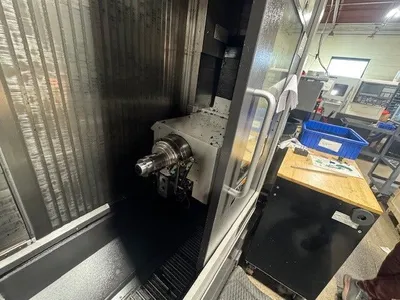

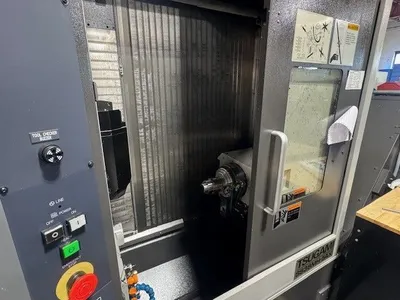

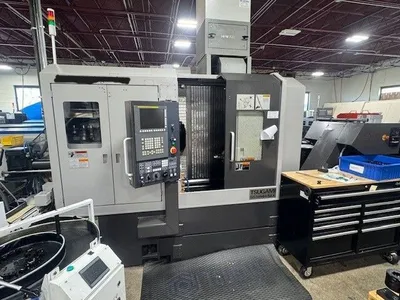

2022 Tsugami SS38MH-5AX Swiss CNC Chucker-Convertible Sliding Headstock Lathe W/ "B" Axis
Have one to sell?
ConditionUsed
1 available

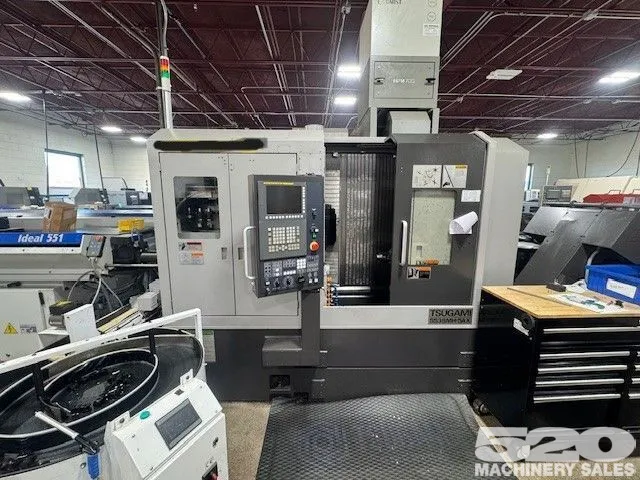

2022 Tsugami SS38MH-5AX Swiss CNC Chucker-Convertible Sliding Headstock lathe W/ "B" Axis. Machine is in excellent condition and can be viewed under power as needed. Machine comes with: Iemca Ideal 551 barfeeder, spindle chiller, mist collector, full "B" axis, chip conveyor, 5 live and 5 static backworking station.
Maximum Bar Stock 38 mm, 1.5 in
# Axes 8
Sliding Headstock / Guide Bushing YES
CONVERTIBLE: Run w/o Guide Bushing (chucker) YES
Max Headstock Stroke w/ Guide Bushing
Max Headstock Stroke w/o Guide Bushing 300 mm / 11.8 in
100 mm / 3.9 in
# Tool Positions (std / max) 52 std/max

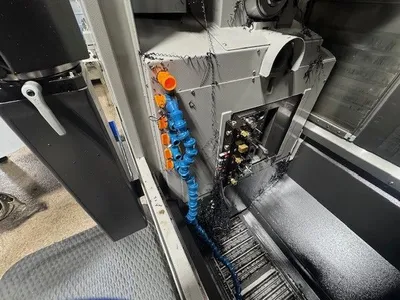

# Live Tool Positions (std / max) 6 (5 on backworking, 1 on tool spindle)

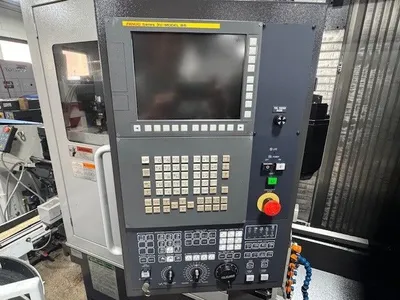

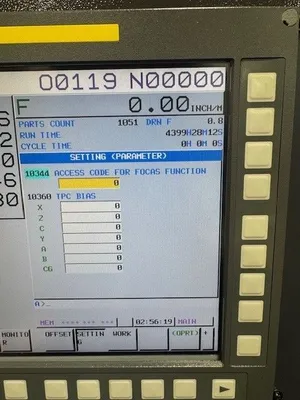

Control FANUC 31i-B5
Main Spindle Speed 200 – 7,000 rpm
Sub Spindle Speed 200 – 7,000 rpm
Live Tool Speed 6,000 rpm on backworking,
20,000 rpm on tool spindle
Main Spindle Motor 5.5 kw (7.5 hp)
Weight 15652 lbs / 7,100 kg
Footprint: W x D x H 115.5 x 76.5 x 85 in

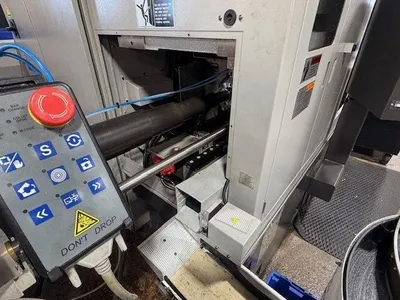

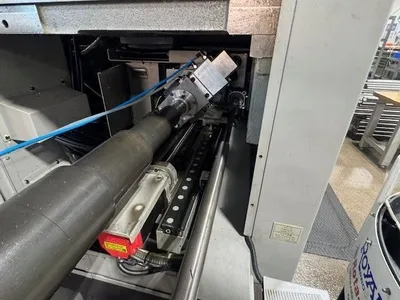

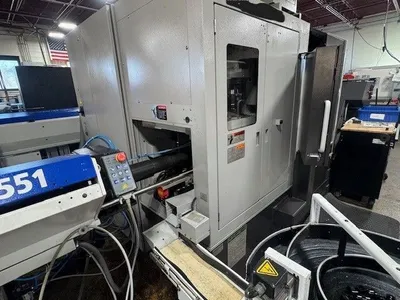

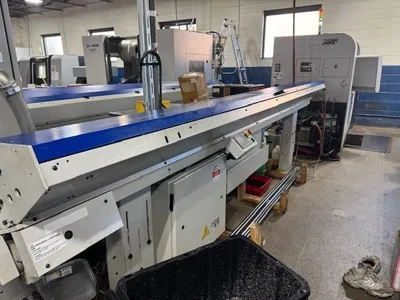

Iemca Ideal 551 Barfeeder
Spindle Chiller

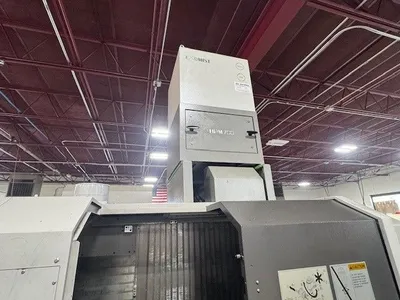

Mist Collector

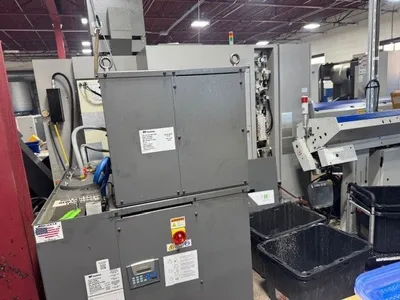

1000 PSI Hi-Pressure Coolant
Full "B" Axis
Chip Conveyor
