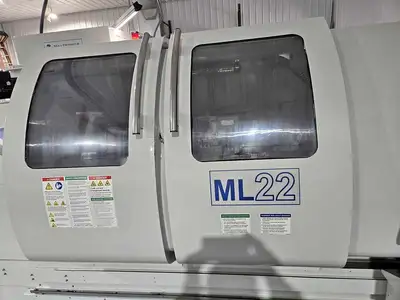

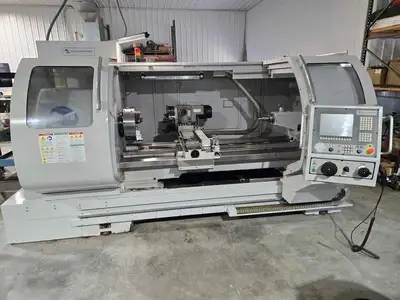

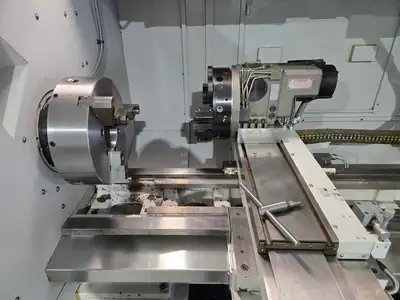

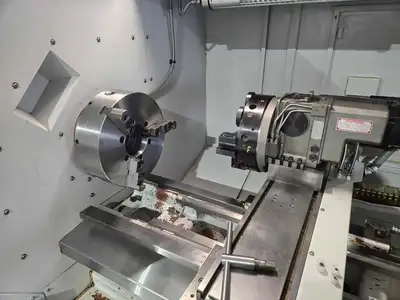

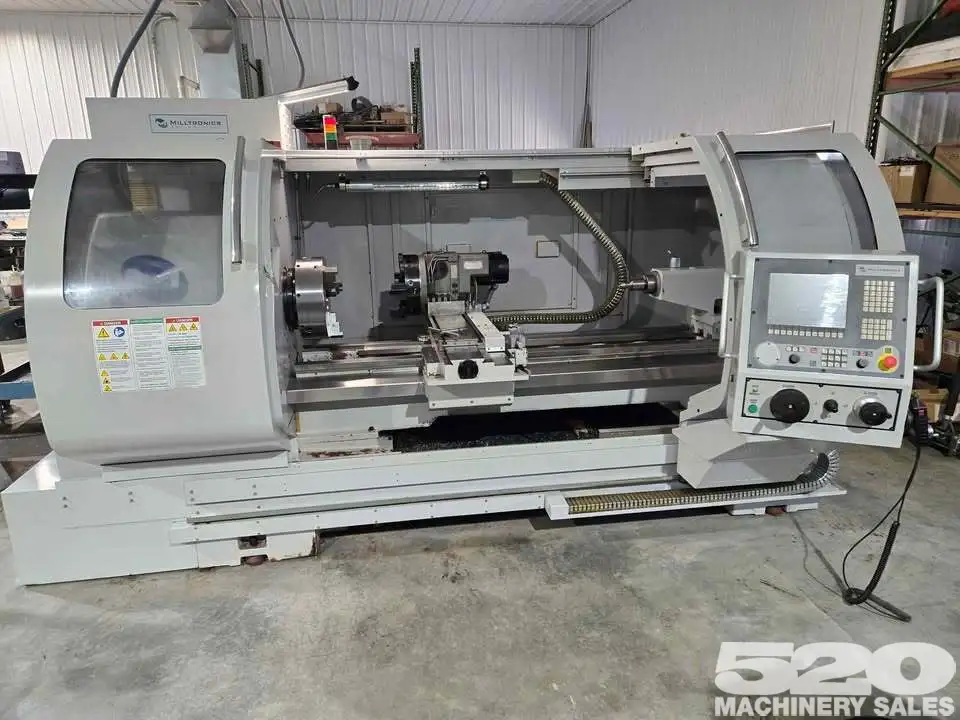

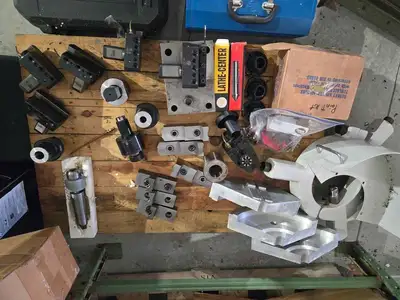

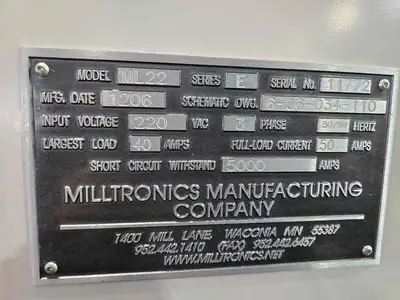

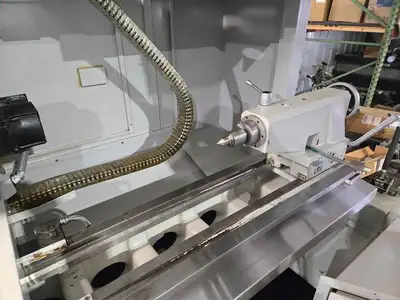

2006 Milltronics ML22/60 CNC Lathe With Live Tooling

Machine Model ML16 ML18 ML22 ML26

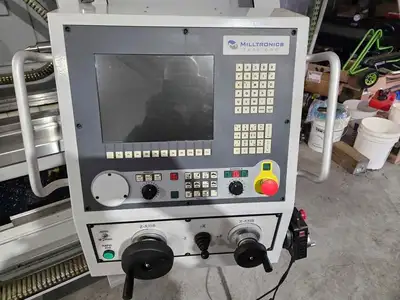

Control Type Milltronics CNC

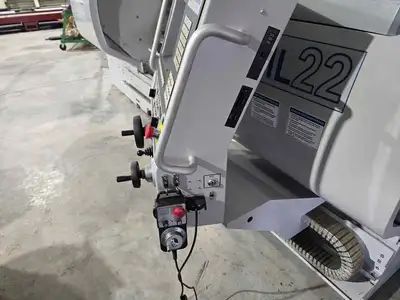

Functions Dual Handwheel, Handwheel Teach, Conversational G/M Code, Manual or Automatic Operation of Spindle RPM and Coolant
CAPACITY
Swing Over Bed 17" 440 mm (dia.) 19" 480 mm (dia.) 23" 580mm (dia.) 27" 685 mm (dia.)
Swing Over Gap
Contact factory for limitations 25.9" 658 mm (dia.)
12.75" 320 mm Gap 27.9" 710 mm (dia.)
12.75" 320 mm Gap 31" 790 mm (dia.)
12.75" 320 mm Gap 35" 890 mm (dia.)
12.75" 320 mm Gap
Swing Over Cross Slide 7.48" 190 mm (dia.) 9.25" 235 mm (dia.) 12.1" ¬¬¬¬310 mm (dia.) 16.1" 410 mm (dia.)
Cross Slide Tool Holder Mounting Surface T-Slots T-Slots T-Slots T-Slots
Cross Slide "T" Slots 14 mm 14 mm 14 mm 14 mm
Travel (X Axis) Cross Slide 11" 280 mm 12" 300 mm 13" 330 mm 13" 330 mm
Travel (Z Axis) Long Slide – with tail stock
*Optional turret may limit Z axis travel due to tail stock interference 44.5" 1130 mm N/A N/A 42" 1066 mm
60" Bed Machine *See note above N/A 63.5 1600 mm 63.5" 1600 mm N/A
80" Bed Machine *See note above N/A N/A N/A 70" 1775 mm
120" Bed Machine *See note above N/A N/A N/A 124" 3150 mm
160" Bed Machine *See note above N/A N/A N/A 163" 4140 mm
Z Cutting Length with Standard Turret Reduce center-to-center distance by 4" 102 mm
Z Cutting Length with Live Tooling Turret N/A Consult factory Consult factory Consult factory
Centerline to Turret Face Consult factory Consult factory Consult factory Consult factory
Center Distance 40" Bed Machine 48" 1220 mm N/A N/A 45" 1140 mm
Center Distance 60" Bed Machine N/A 66.9" 1700 mm 64.5" 1638 mm N/A
Center Distance 80" Bed Machine N/A N/A N/A 84" 2130 mm
Center Distance 120" Bed Machine N/A N/A N/A 118" 3000 mm
Center Distance 160" Bed Machine N/A N/A N/A 163" 4150 mm
Bed Width 14" 355 mm 14" 355 mm 16" 405 mm 16" 405 mm
Machine Weight, 40" Bed Machine 6000 lb 2730 kg N/A N/A 9,500 lb 4300 kg
60" Bed Machine N/A 8500 lb 3850 kg 10,000 lb 4500 kg N/A
80" Bed Machine N/A N/A N/A 11,500 lb 5200 kg
120" Bed Machine N/A N/A N/A 13,200 lb 6000 kg
160" Bed Machine N/A N/A N/A 17,200 lb 7800 kg
Ball Screw Size 40" & 60" Bed Machine X 25 mm
Z 40 mm X 25 mm
Z 40 mm X 32 mm
Z 45 mm X 32 mm
Z 45 mm
Ball Screw Size 80" Bed Machine N/A N/A N/A X 32 mm
Z 50 mm
Ball Screw Size 120" Bed Machine N/A N/A N/A X 32 mm
Z 50 mm
Ball Screw Size 160" Bed Machine N/A N/A N/A X 32 mm
Z 50 mm
Ball Screw Grade, Precision Ground C5 C5 C5 C5
Ball Screw Pitch X axis / Z axis 5 mm / 10 mm 5 mm / 10 mm 5 mm / 10 mm 5 mm / 10 mm
Maximum Weight of Part With Chuck and No Support From Center 220 lb 100 kg 220 lb 100 kg 250 lb 114 kg 300 lb 135 kg
Maximum weight listed above is determined using factors of Chuck and Jaw clamping force and less than ideal work piece with a safety margin, and does not reflect the actual load capacity of the machine spindle. Safe machining practices should always be maintained when determining the largest part intended for the machine. Refer to supported weights, and the chuck manufactures recommendations when determining the acceptable weight of part.
Maximum Weight of Part With Chuck and Supported From Center 2200 lb 1000 kg 2200 lb 1000 kg 2500 lb 1140 kg 2850 lb 1300 kg
Maximum Weight of Part Between Centers With Steady Rest 3300 lb 1500 kg 3300 lb 1500 kg 4400 lb 2000 kg 4850 lb 2200 kg
