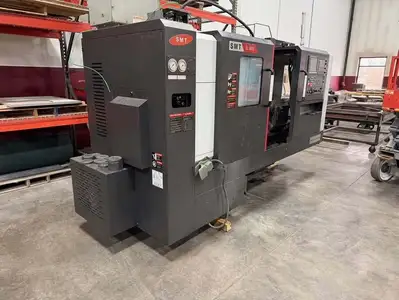

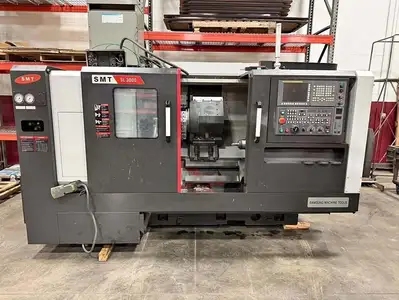

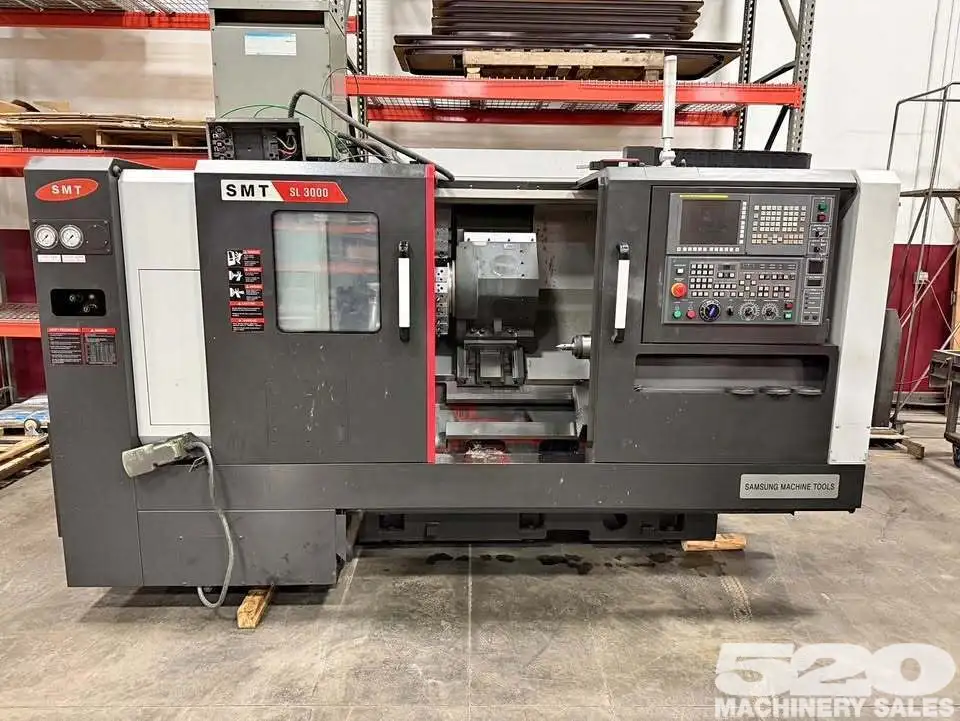

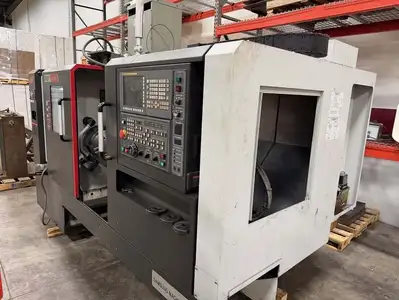

2016 Samsung SL3000 CNC Turning Center With Tailstock

Chip Conveyor Included.
MACHINE SPECIFICATIONS

CAPACITY
Swing over the bed 25.59”
Swing over the cross slide 18.90”
Maximum turning diameter 16.93”
Maximum turning length 32.68”

MAIN SPINDLE
Chuck size 12”
Spindle nose A2-8 (ASA)
Main spindle motor 35 / 30 / 25 hp
Spindle speed 3,000 rpm with 12” chuck
Bore diameter 4.13”
Draw tube ID 3.58”
Spindle torque 633.0 ft.-lbs.
Spindle drive method Belt

BED, SLIDE & CARRIAGE
X axis travel 9.65”
Z axis travel 35.43”
Rapid traverse (X / Z) 945 ipm / 1181 ipm
Guide ways (X / Z) Box Way
Bed structure 45o Slant bed
Ballscrew diameter (X / Z) 1.10” / 1.57”
Axis feed thrust (X / Z) 4,449 lbs. / 6,780 lbs.
Repeatability (X / Z) +0.00012” / +0.00039”

TURRET
Number of tool stations 12 Tools (12) OD (12) ID
Turret indexing speed (1 station) 0.15 Seconds
Curvic coupling 3 Piece hydraulic clamp / Servo index
Coupling diameter / Clamp force 6.30” / 8,719 lbs.
Tool size (turning and facing) 1” – wedge clamp
Tool size (boring bar maximum diameter) 2”
Turret index repeatability +0.00012”

TAILSTOCK
Tailstock center (taper) MT #4 (Built In)
Quill diameter 4.33”
Quill travel (by hydraulic) 3.94”
Maximum thrust of quill 1,586 lbs.

COOLANT SYSTEM
Coolant pump motor 1.2 hp (65 psi)
Coolant tank capacity 52.8 gal.
System type Removable / Independent
