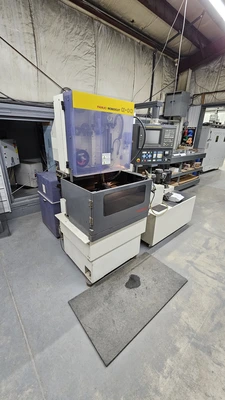

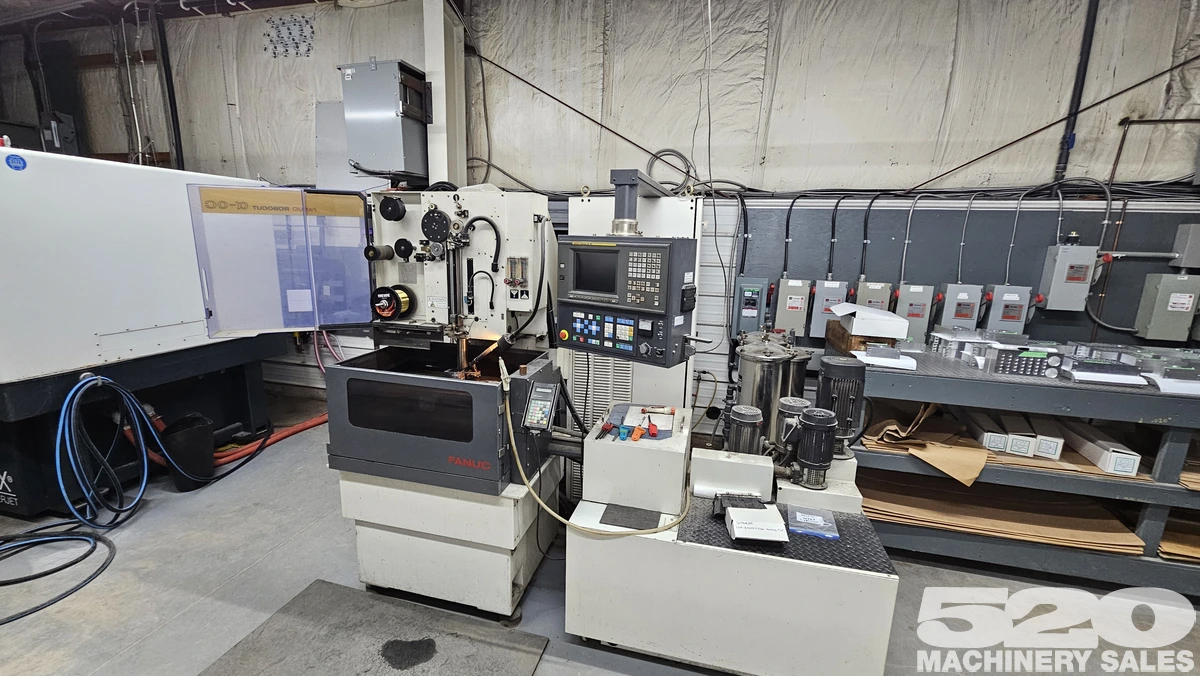

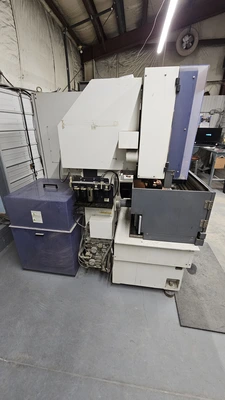

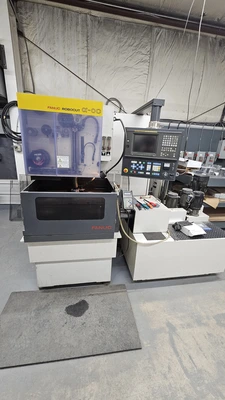

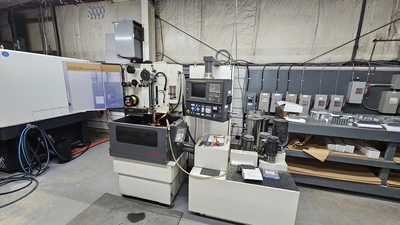

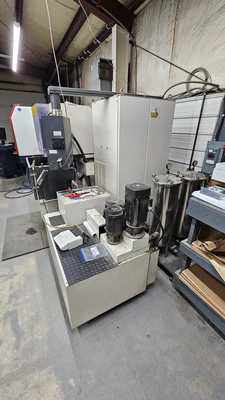

1996 Fanuc Robocut A-OC Wire EDM Machine

1997 Fanuc Robocut α-0C – Specifications

Machine Type

CNC Wire EDM (submerged cutting)

Control

FANUC Series 16-W / 16-WC CNC control

Axis Travels

X-axis: 320 mm (12.6 in)

Y-axis: 220 mm (8.7 in)

Z-axis: 180 mm (7.1 in)

U-axis: ±60 mm

V-axis: ±60 mm

Workpiece Capacity

Max workpiece size: approx. 650 × 420 × 170 mm

Max workpiece weight:

about 165–250 kg (364–550 lb) depending on table version

Cutting Capability

Wire diameter: 0.10 – 0.30 mm (0.004" – 0.012")

Max taper angle: ±30° (over ~80 mm thickness)

Max workpiece thickness: about 300 mm

Minimum positioning increment: 0.00001 mm

Feedrates

Rapid traverse:

X/Y: ~900 mm/min

U/V/Z: ~450 mm/min

Cutting feedrate: approx. 0.0001 – 50 mm/min

Wire System

Wire speed: approx. 0 – 10 to 15 m/min

Wire tension: 80 – 2500 g

Automatic wire threading: standard on most machines

Tank / Dielectric System

Dielectric fluid: deionized water

Tank capacity: ~260 – 390 L

Filtration flow rate: ~40 L/min

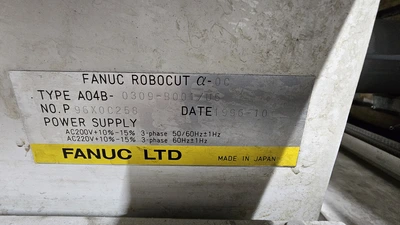

Electrical Requirements

Power: ~208–415 V, 3-phase

Power consumption: approx. 11–13 kVA

Compressed air: required for wire threading

Machine Size / Weight

Machine weight: approx. 1500–1900 kg (3300–4200 lb)

Typical footprint: around 10.5′ × 7.2′ × 6.6′ overall height/width envelope
