Shimada 4-Spindle CNC Turning Center HS4200n

1.1 Capacity
- Max. turning diameter φ7.8”
- Max. turning length 4.0”
- Distance between spindles 11.1”

1.2 Spindle Headstock

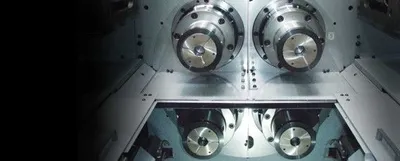

- Number of spindles 4 (2 for turning, 2 for loading/unloading)
- Spindle nose A2-6
- Chuck size 8”
- Front bearing inner diameter φ3.54”
- Spindle through hole diameter φ1.57”
- Spindle motor 20/15HP
- Spindle rpm 45 ~ 4,500 rpm (Option: 3,000 rpm)

1.3 Feed Axes
- Travel 6.3” (X), 9.8” (Z)
- Rapid feed rate 945 ipm (X), 1,181 ipm (Z)

1.4 Turret
- 8-station turret (4 tools for ID, 4 tools for OD) x 2 sets
- Outer tool size / Inner tool size φ1” / φ1.5”

1.5 Floor to spindle center for machining/loading 36.4” / 47.56”
- Floor space 132” x 95”
- Weight 16,534 lb.

1.6 Power requirement 60KVA, 200/220V, 50/60Hz
