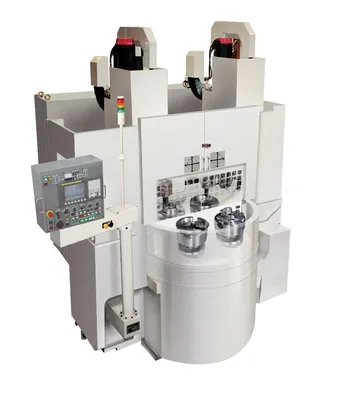

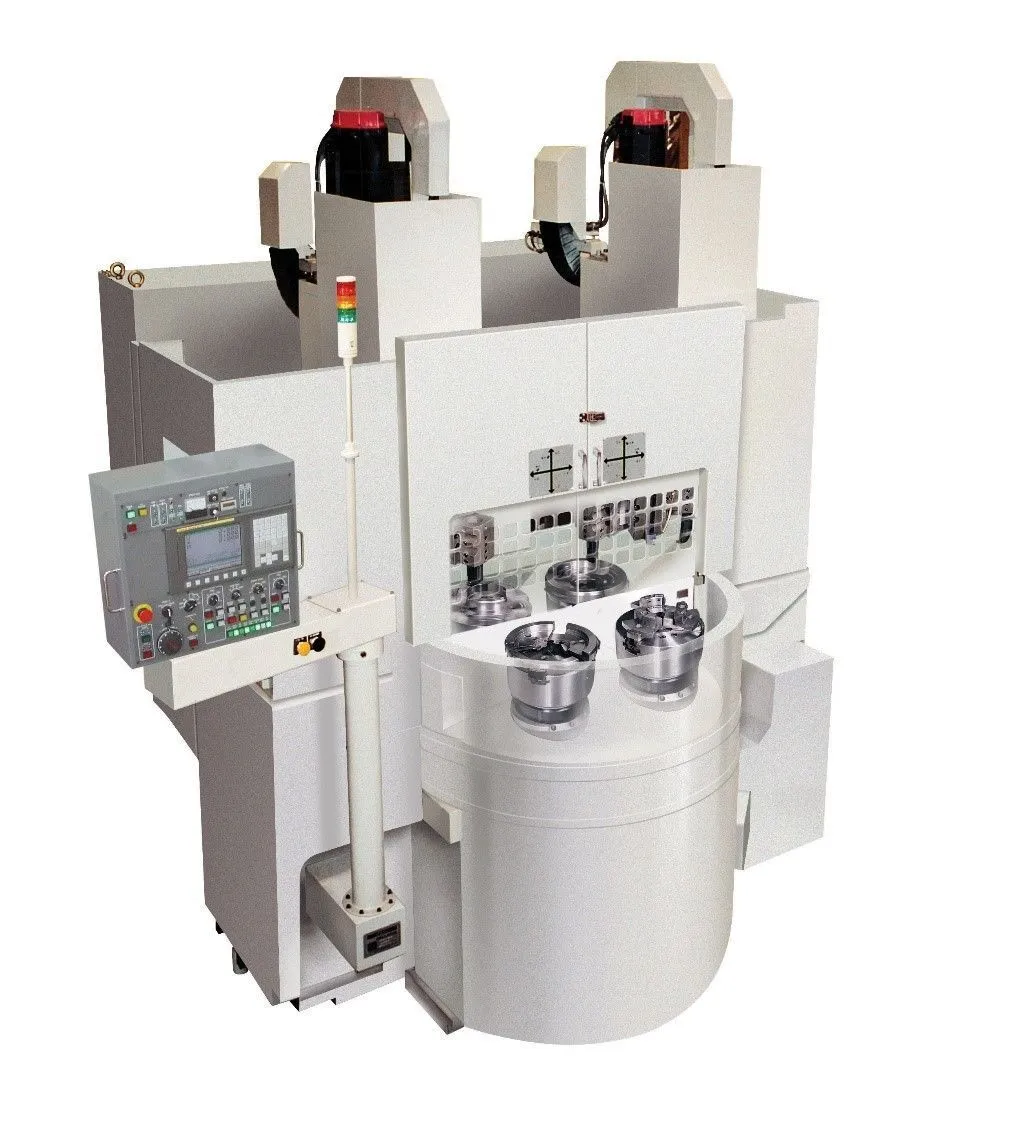

SHIMADA VT4-350 4-Spindle CNC Turning Center
Have one to sell?
$544,900.00 USD
ConditionNew
1 available
New
Introducing the 2024 SHIMADA VT4-350 CNC Turning Center. With 4 spindles and live tooling, this new machine offers a 14.78" turning diameter, 12" chuck, and max RPM of 3,200. Equipped with a hydraulic unit, coolant device, and more. Perfect for precision work.
1.1 Capacity
Max. turning diameter Ø14.78” Ø375mm
Max. turning length 7.87” 200mm
Distance between both spindles 16.70” 424.2mm
1.2 Spindle Headstock
#of spindles 4 spindles (2 for turning,2 for loading/unloading)
Spindle nose A2-8
Chuck size Ø12” (Max. Ø15”)
Spindle motor 35/30HP 26/22KW
Spindle rpm 32 – 3,200 rpm
1.3 Feed axes
Travel (X)11.81” 300mm
(Z) 17.7” 450mm
Rapid feed rate (X)787ipm 20m/min
(Z)787ipm 20m/min
1.4 Turret 8 station turret (4 tools for ID, 4 for OD) x 2 sets
Outer tool size, Inner tool size □1”/ Ø1.5”
1.5 Floor to spindle surface 45.07” 1,145mm
Floor space 119”x117.3” 3,025x2,980mm
Weight 26,400lbs 12,000kgs
1.6 Electric power source 60KVA, 200/220V, 60Hz
Equipped With:
Hydraulic Unit
Coolant Device
Full Enclosure Splash Guard
Production Counter
Lift Up Chip Conveyor
Work Light
Alarm Message
Hand Tool Kit
