| Chuck Size | 8" | 203.2 mm |
| Swing | 21.65" | 549.91 mm |
| Machining Length | 22.44" | 569.98 mm |
| Bar Capacity | 2.56" | 65.024 mm |
| Live Tooling | No | No |
| Y-Axis Milling | No | No |
| Sub Spindle | No | No |
| # of Turrets | 1 | 1 |
| Turning Dia | 11.81" | 299.97 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Tailstock | Yes | Yes |
| Control | CNC (Fanuc 0i) | CNC (Fanuc 0i) |
| Dimensions | 2800 x 1630 x 1650 mm | 2800 x 1630 x 1650 mm |
| Weight | 3000 kg | 3000 kg |
• Swing over bed: 550 mm (21.654 inches)
• Max. cutting diameter: 280 mm (11.02 inches)
• Max. cutting length: 490 mm (19.29 inches)
• Chuck Size: 8" hydraulic
• Bar Capacity: 65 mm (2.5591 inches)
• Spindle Motor: 15/20 HP
• Spindle Speed: 4,000 RPM
• Number of tools: 12
• Control: Fanuc 0iTF
• Guideway Type: BOX Way (X/Z)
• Turret: 12 station turret, non-stop bi-directional indexing
Chip Conveyor

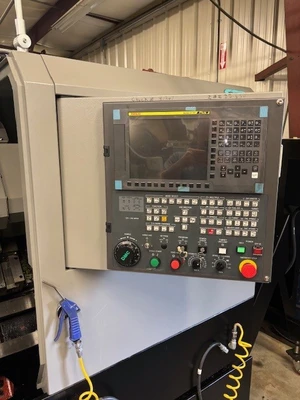

Fanuc CNC Control
Tailstock
