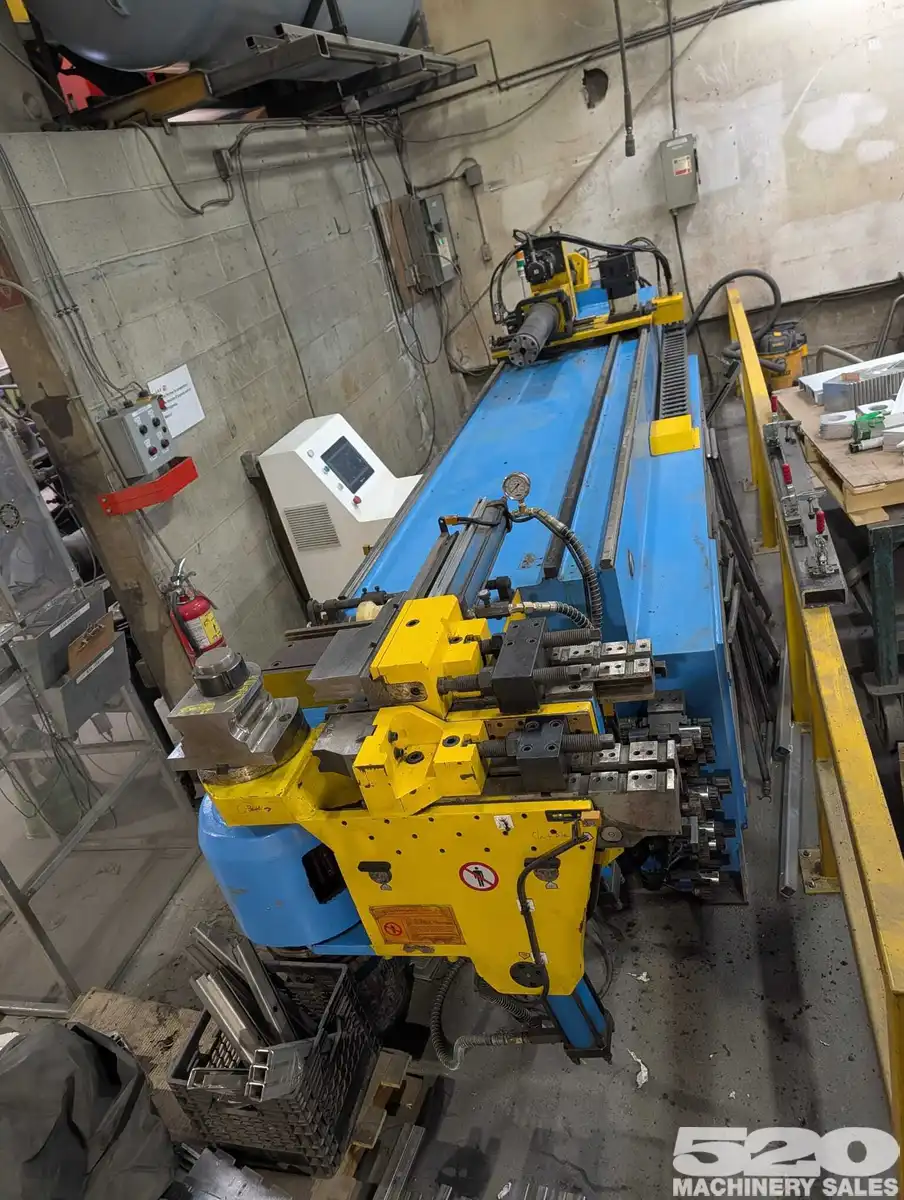

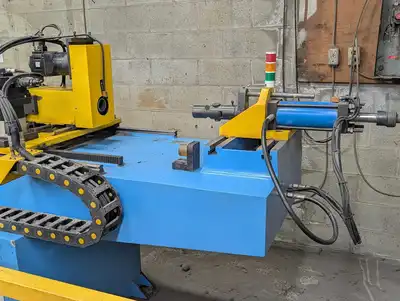

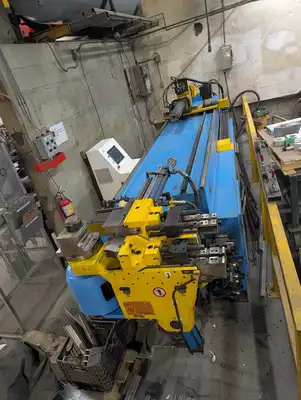

2020 SANXIN Pipe Bending Machine

Bending and Pipe Capacities
Maximum Pipe Diameter: Up to 76mm × 3.0mm (Stainless Steel) or 75mm × 4mm/6mm depending on specific manufacturer specs.
Maximum Bending Radius (CLR): 300mm.
Maximum Bending Angle: 185° - 190°.
Standard Feeding Distance: 2600mm - 3000mm.

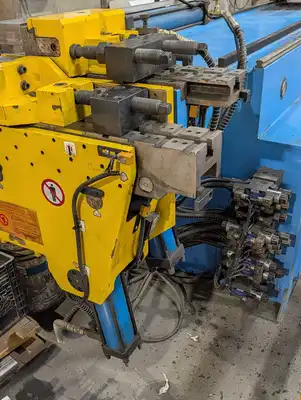

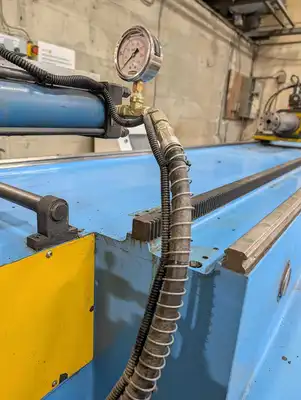

Bending Method: Hydraulic cylinder.
DirectIndustry
DirectIndustry
+3
Performance and Accuracy
Bending Accuracy: ±0.1° to ±0.15°.
Feeding Accuracy: ±0.1mm.
Rotation Accuracy: ±0.1°.
Bending Speed: Approx. 90°/second.
Feeding Speed: Max 700mm/s - 1000mm/s.
Machine Specifications
Total Weight: Approximately 3,600 kg - 4,500 kg.
Dimensions: Roughly 5700mm × 1080mm × 1400mm.
Hydraulic Motor Power: 7.5 kW.
Rotation/Feeding Servo Motors: 1 kW Rotation / 2 kW Feeding.
Program Storage: Max 100 sets - 400 sets (program storage capacity varies by manufacturer), up to 32 bends per program.
Core Features

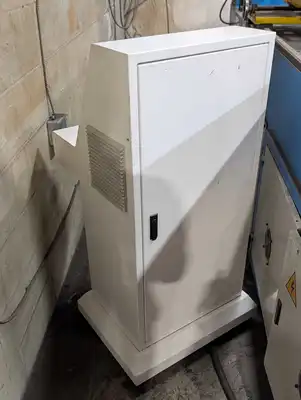

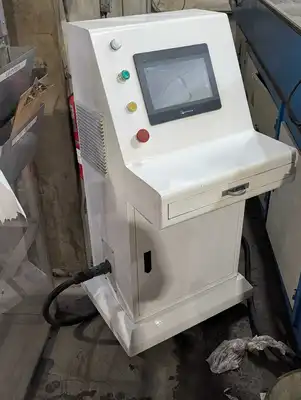

CNC control (PLC or IPC) for fully automatic cycles (Bending-Y, Feeding-X, Rotating-Z).
Equipped with a hydraulic oil cooling system.

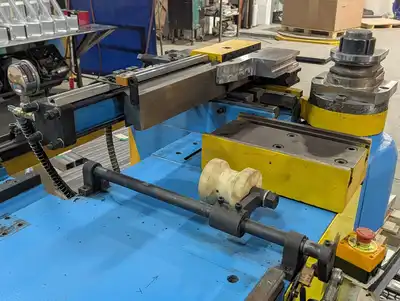

Automatic mandrel in/out functionality.
Compatible with various materials including iron, steel, stainless steel, and copper.
