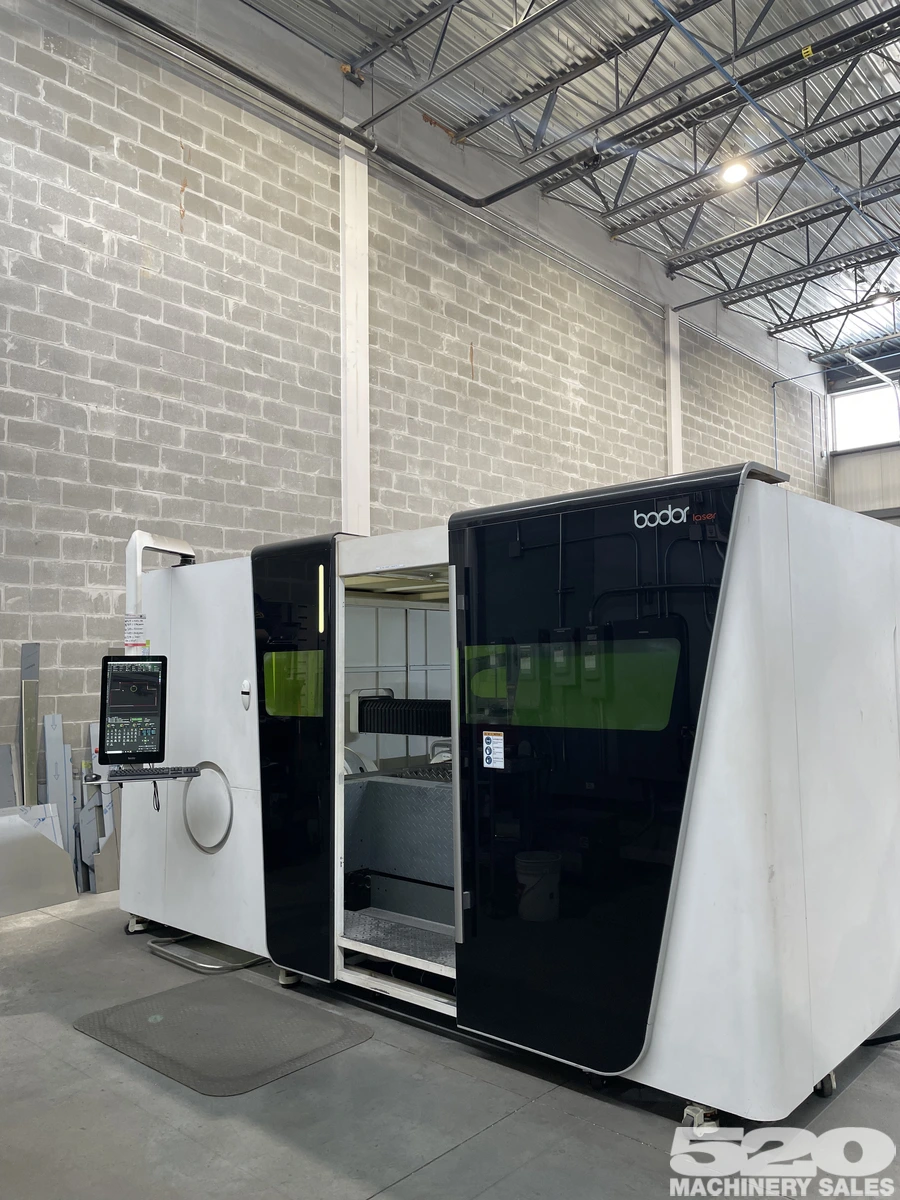

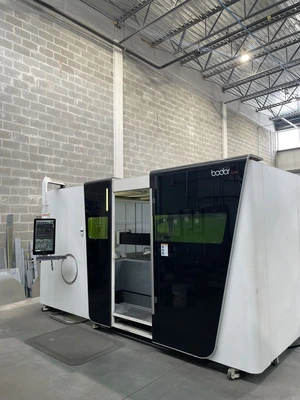

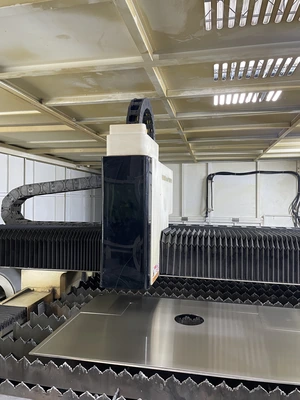

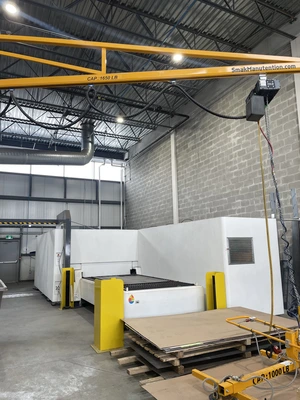

2021 Bodor P3015T6 3kW IPG laser cutting machine with tube cutter

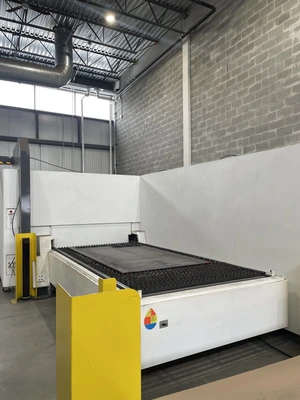

This machine consists of a two 5ftx10ft table exchangers and a 20ft length tube cutter. The machine also comes with:
- Water Chiller CWFL-3000BNS
- Dust Collector TODC-6L
- IPG Resonator YLR-3000
- Electrical transformer MTH75A6 Marcus
General information:
- Positioning Accuracy: 0.05mm
- Repeated Positioning Accuracy: 0.03mm
- Max Moving Speed: 140 m/min
- Cooling Type: Water Cooling
- Table Max Loading Weight: 900 kg (1980 lbs)
- Power Requirements: 380V 3PHS 60Hz (includes transformer 575V)
- Graphic Format Supported: DXF DWG AI PLT BMP DST LAS, etc
- Dimension (L*W*H) mm : 15100*4100*2000mm (49.5*13.4*6.5ft)
- Whole Machine Weight: 10500kg (23,100 lbs)
- Assist gas: oxygen, nitrogen, compressed air
Max cutting thickness:
- Mild Steel: 3/4in
- Stainless steel: 3/8in
- Aluminum: 1/2in

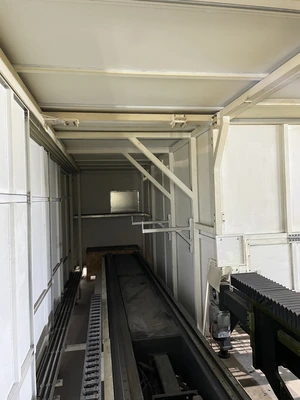

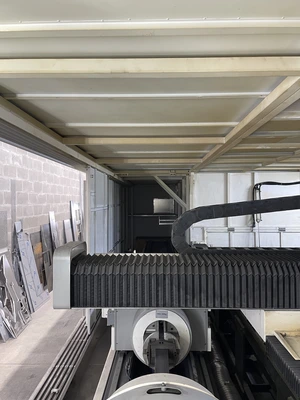

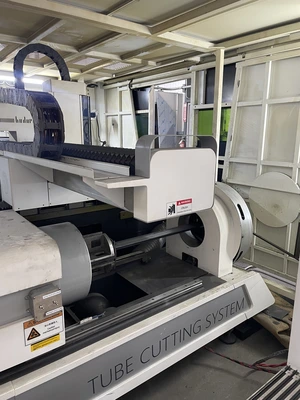

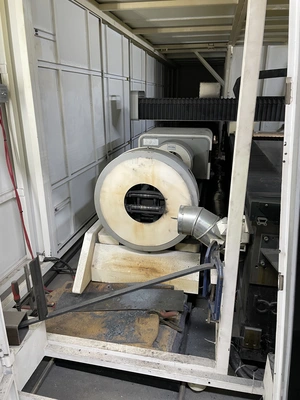

Tube cutter information
- Max length: 6000 mm (20ft)
- Max diameter: 200 mm (7-7/8in)
- Max tube weight 100 kg (200 lbs)
- Wall support for storing material inside the machine

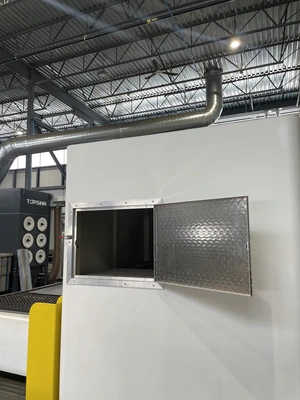

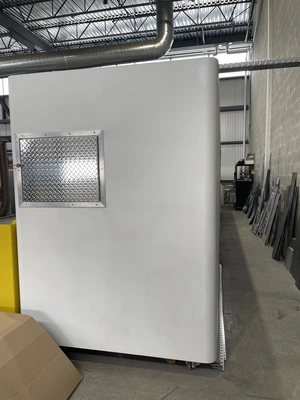

- Rear access door to facilitate the loading of the material into the machine
*PRICE INCLUDES DISASSEMBLING, TRANSPORT, AND ASSEMBLING FEE*
2021 Bodor P3015T6 3kW IPG laser cutting machine with tube cutter This machine consists of a two 5ftx10ft table exchangers and a 20ft length tube cutter. The machine also comes with: - Water Chiller CWFL-3000BNS - Dust Collector TODC-6L - IPG Resonator YLR-3000 - Electrical transformer MTH75A6 Marcus General information: - Positioning Accuracy: 0.05mm - Repeated Positioning Accuracy: 0.03mm - Max Moving Speed: 140 m/min - Cooling Type: Water Cooling - Table Max Loading Weight: 900 kg (1980 lbs) - Power Requirements: 380V 3PHS 60Hz (includes transformer 575V) - Graphic Format Supported: DXF DWG AI PLT BMP DST LAS, etc - Dimension (L*W*H) mm : 15100*4100*2000mm (49.5*13.4*6.5ft) - Whole Machine Weight: 10500kg (23,100 lbs) - Assist gas: oxygen, nitrogen, compressed air Max cutting thickness: - Mild Steel: 3/4in - Stainless steel: 3/8in - Aluminum: 1/2in Tube cutter information - Max length: 6000 mm (20ft) - Max diameter: 200 mm (7-7/8in) - Max tube weight 100 kg (200 lbs) - Wall support for storing material inside the machine - Rear access door to facilitate the loading of the material into the machine *PRICE INCLUDES DISASSEMBLING, TRANSPORT, AND ASSEMBLING FEE*

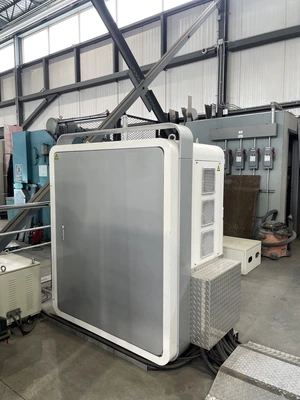

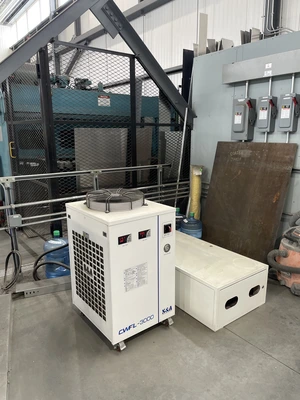

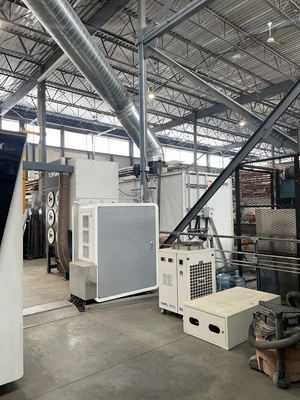

Water Chiller

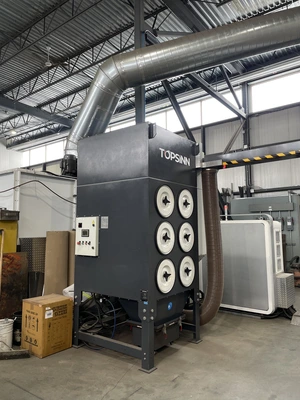

Dust Collector
