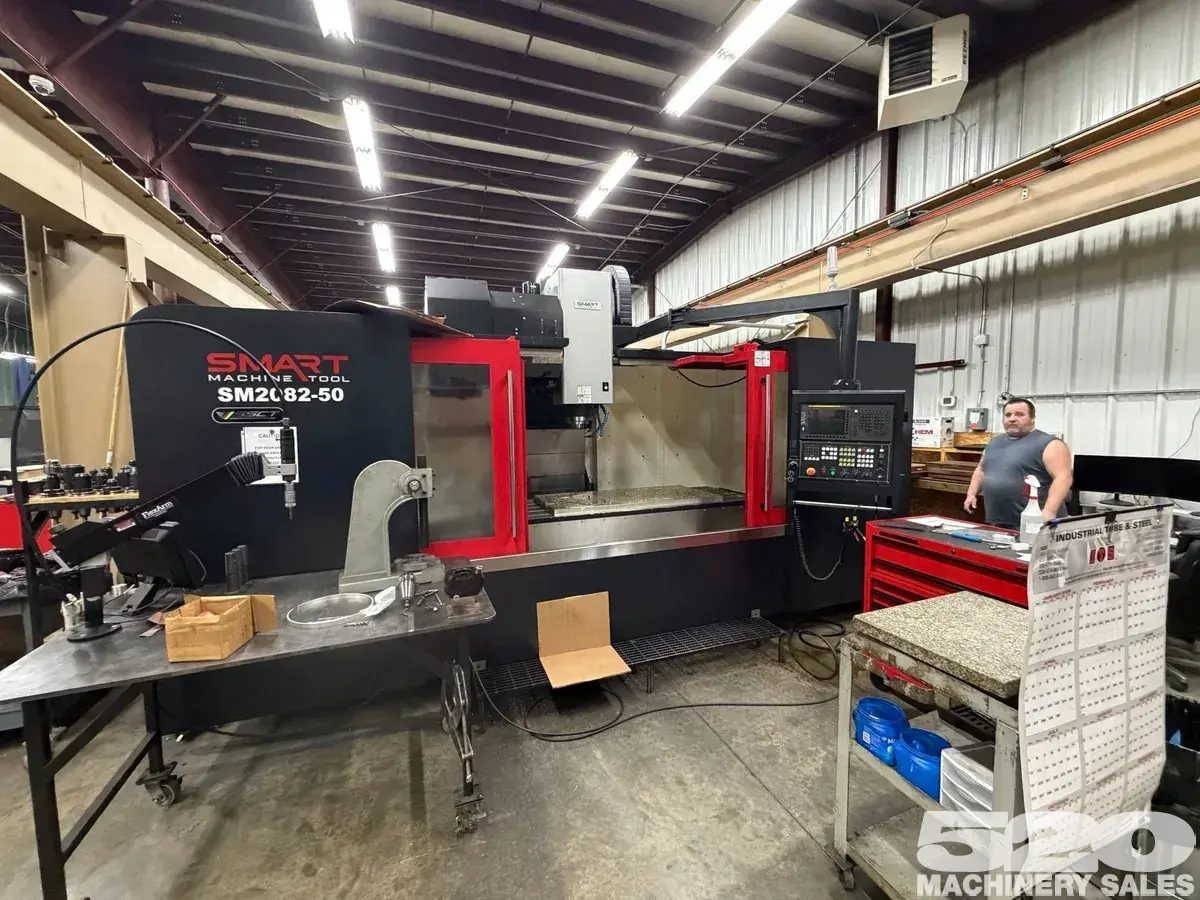

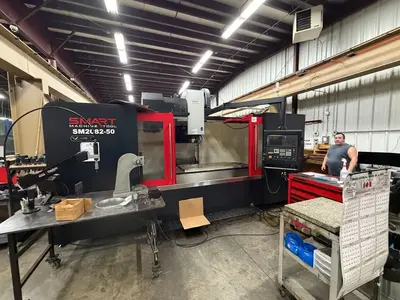

SMART Machine Tool SM 2082-50 CNC Vertical Machining Center

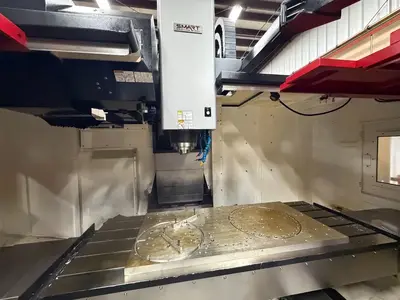

TABLE:
Working Surface 84.65” x 32.28”
T slots (Width x No. x Pitch) (in) 0.71” x .20” x 5.91”
Max. Table Load (lbs) 5,732.02
AXES MOVEMENT:
X-Axis (in) 81.1”
Y-Axis (in) 32.28”
Z-Axis (in) 32”
Distance from Spindle End to Table Center (in) 7.8”-40”
Distance from Spindle Center to Column (in) 34.06”
FEED:
Cutting Feed Rate (in/min) X/Y/Z 472.44”/472.44”/472.44”
Rapid Traverse (in/min) X/Y/Z 708.66”/708.66”/708.66”
SPINDLE:
Spindle Nose Taper #50
Spindle Speed (Gear) 6,000 RPM
Spindle Motor: 30 Min Rating 35/30 HP
AUTOMATIC TOOL CHANGER:
Tool Storage Capacity 40
Max. Tool Weight (lbs) 44.09
Max. Tool Size (Diameter x Length) (in) A: Ø4.92” x 13.78”
Tool Shank CAT50 (BIG PLUS)
Tool Stud Bolt CAT-50
POWER REQUIREMENTS:
Electric Power Consumption 220V
Compressed Air
25-55 KVA
92.45 PSI
FLOOR SPACE:
Dimensions (in) (including chip conveyor) 237.06” x 134.52”
Machine Weight (lbs) 28,439

SMART PACKAGE:
▪ 290 PSI Coolant Thru-Spindle
▪ Oil Skimmer
▪ Full Enclosed Splash Guard
▪ Built-in Dual (Internal) Screw Conveyor
▪ Coolant Bed Flush
▪ Renishaw Probe Ready Kit (OMI-2T)
▪ 4th Axis Preparation
▪ Rigid Tapping
▪ Big Plus Spindle
▪ Manual Guide i
SMART VALUE PACKAGE:
▪ Lift Up Chip Conveyor
▪ Air Thru Spindle
▪ Coolant/Air Gun
▪ 3 Color Tower Light
