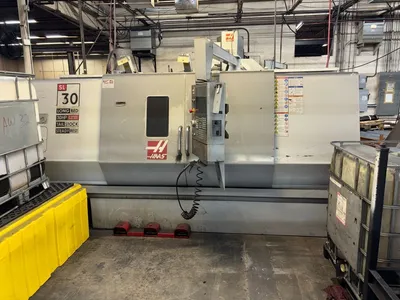

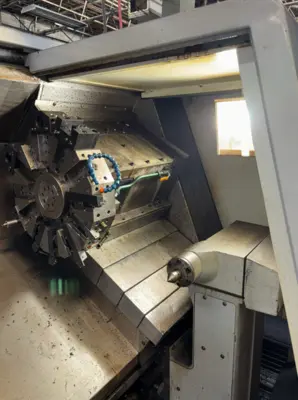

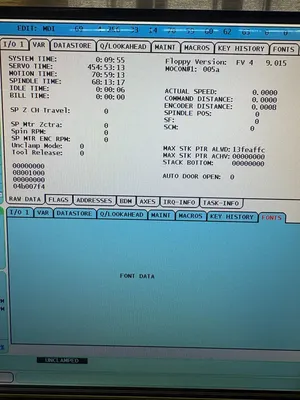

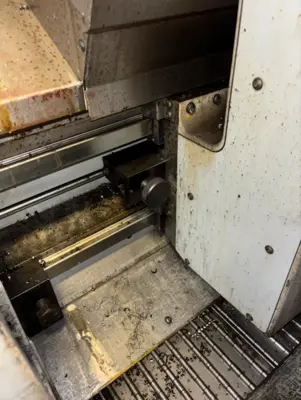

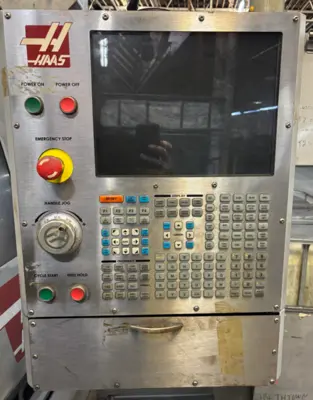

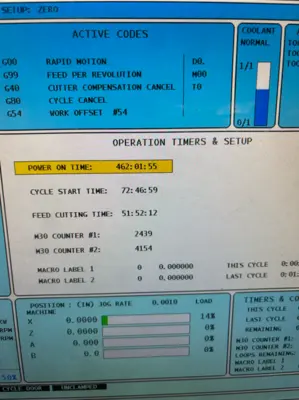

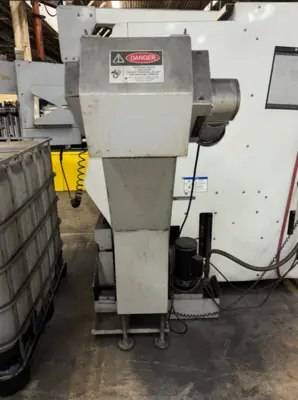

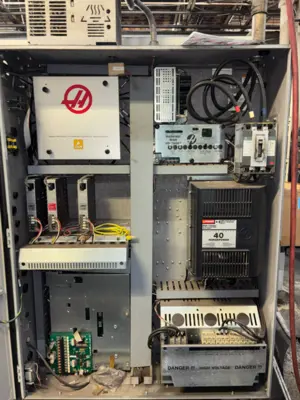

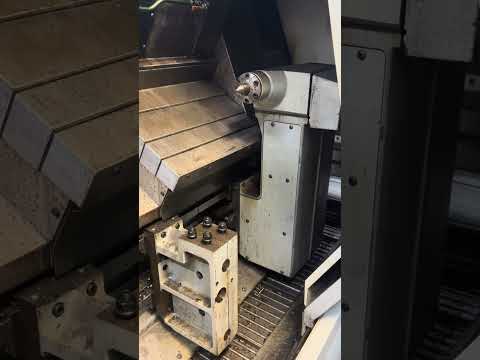

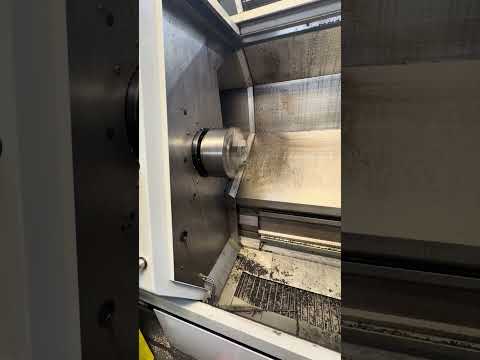

2009 Haas SL30TL CNC Turning Center W/ Programmable Tailstock

STANDARD MACHINE FEATURES, SL-30L:
• Cutting Capacity 17" x 60" (432 mm x 1524 mm)
• 30" (762 mm) Swing • 30 hp (22 kw) Spindle
• Heavy-Duty Sheetmetal Enclosure • Automatic Lubrication System
• 12-Position Bolt-on Tool Turret • Tool Load Monitoring
• Spindle Speed 3400 rpm • 5 Spare M-Functions
• Chuck Size 10" (254 mm) • Brushless Motors
• Flood Coolant System • 1-Year Parts and Labor Warranty
• USB port

Other Features Include:

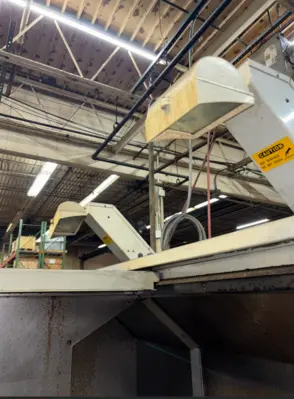

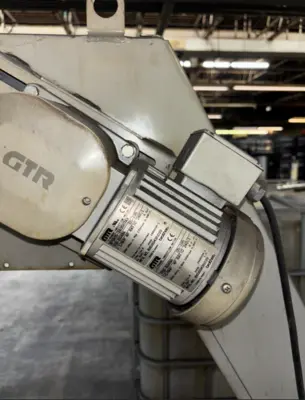

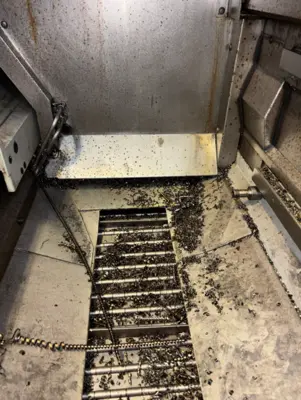

• Embedded coolant collection tray • Direct-coupled servo motors

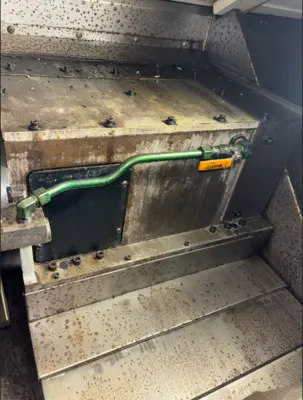

• High-precision spindle • Massive ribbed castings
• Rigid tapping • Double wall safety door

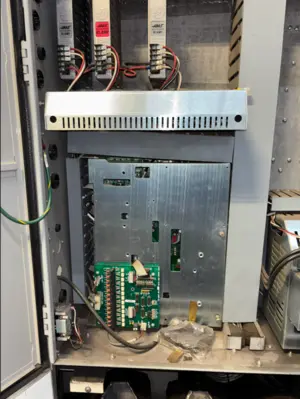

STANDARD MACHINE SPECIFICATIONS

MACHINE
Machine Max Height 84" (2134 mm)
Machine Max Width 181" (4597 mm)
Machine Max Depth 113" (2870 mm)
Machine Weight 20,000 lb (9072 kg)
Coolant Capacity 50 U.S. gallons (189 liters)
Air Required 4 scfm at 100 psi (113 L/min at 6.9 bar)

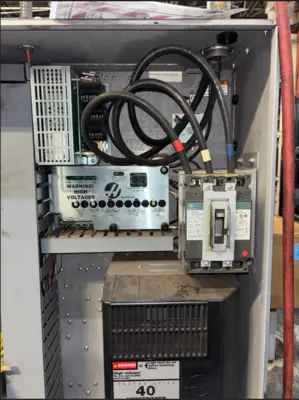

Power Required 28 kVA (28 kVA w/Big Bore Option)

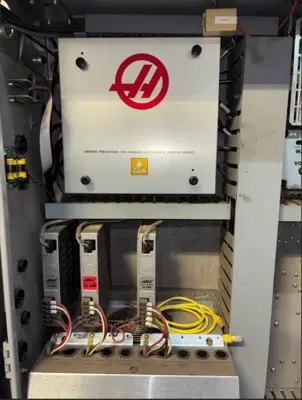

Volts/Phase 200-250 VAC, 3-phase, 50-60 Hz

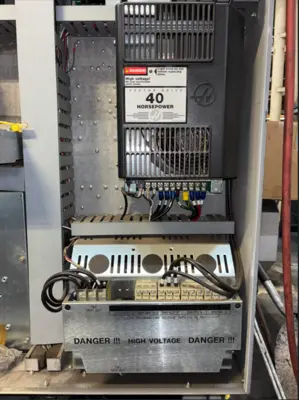

SPINDLE (SAE) w/BIG BORE OPTION
Spindle Speed 0 to 3400 rpm 2400 rpm
Spindle Torque 300 ft-lb @ 700 rpm
Peak Horsepower 30 hp 40 hp
Spindle Nose A2-6 A2-8
Spindle Bore Ø3.5" Ø4.62"
Draw Tube Bore Ø3.03" Ø4.06"
Power Required 28 kVA 28 kVA

SPINDLE (Metric)
Max Speed 3400 rpm
Max Torque 407 Nm @ 700 rpm
Max Power Rating 22 kw
Spindle Nose A2-6
Spindle Bore Ø88.9 mm
Draw Tube Bore Ø77 mm
Power Required 28 kVA

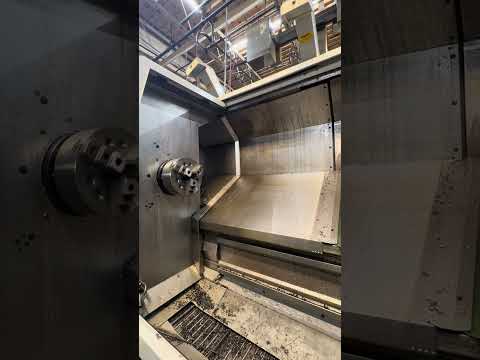

Swing Diameter 30"

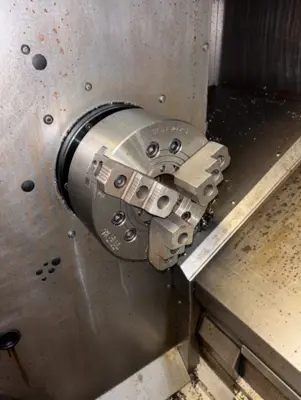

Chuck Size 10"
Bar Capacity 3" 4.0"
Between Centers 60" 60"
Max Cutting Diameter 17"
Maximum Cutting Length 60"

TRAVELS & FEEDRATES
X Axis Travels 11.3" (287 mm)
Z Axis Travels 60" (1524 mm)
X Axis Max Thrust 4000 lb (17,793 N)
Z Axis Max Thrust 6200 lb (27,579 N)
Rapids on X 710 in/min (18 m/min)
Rapids on Z 710 in/min (18 m/min)

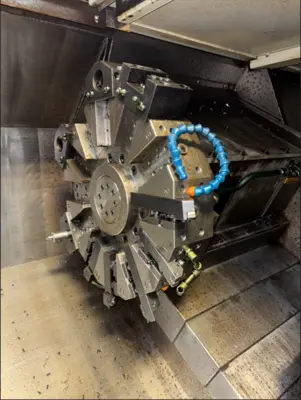

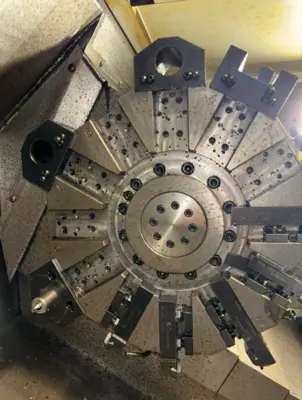

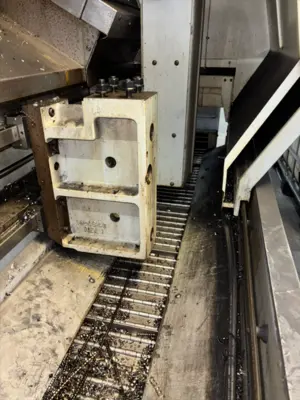

TURRET
Number of Tools 12
OD vs ID Tools Any combination
Tool Size (OD Turning) 1 (25 mm)

ACCURACY
Positioning ±0.0002" (±0.0051 mm)
Repeatability ±0.0001" (±0.0025 mm)
