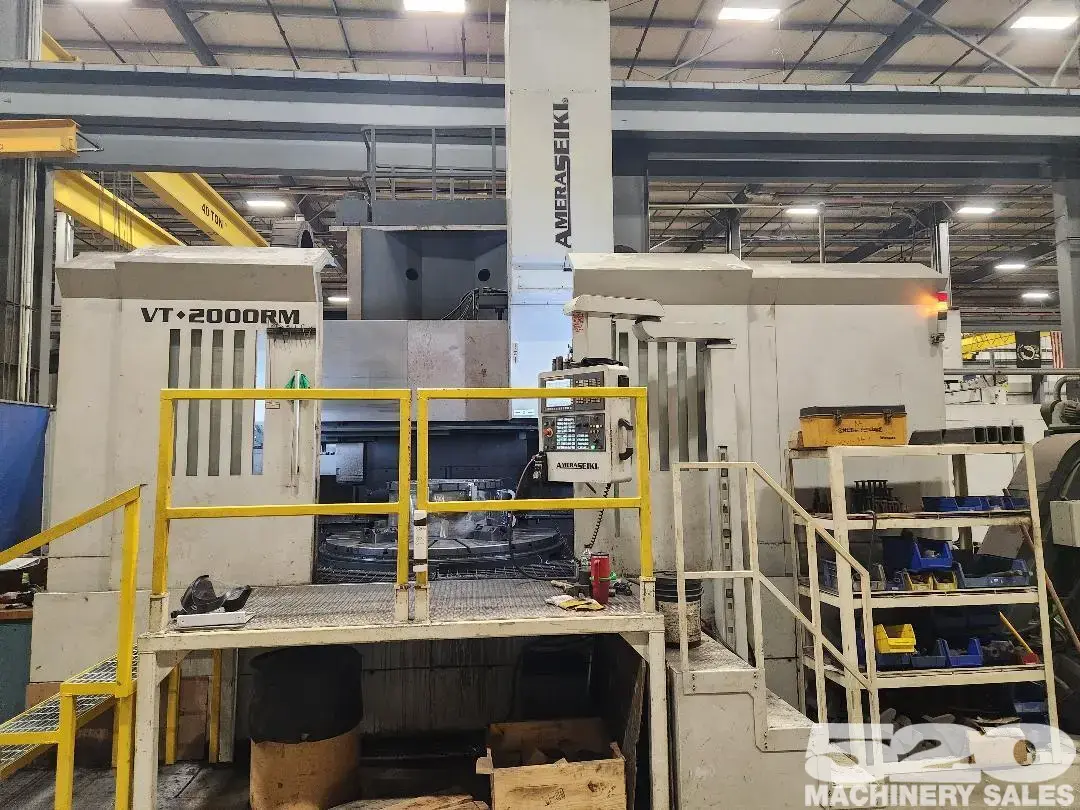

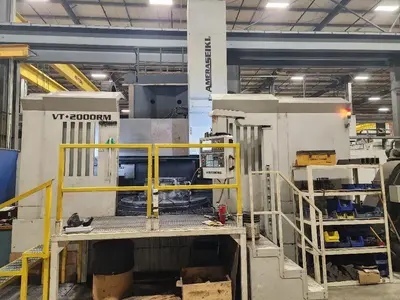

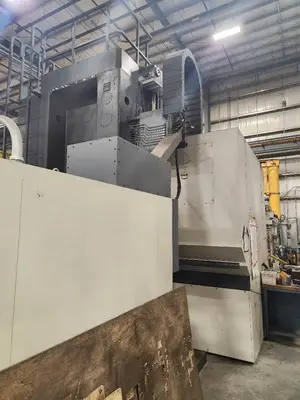

2018 AMERA SEIKI VT-2000RM w/ Live Tooling

SPECIFICATIONS
SWING: 82.7"
Machining Length: 63"
Number of Axis: 2
CHUCK SIZE: 78.7"
POWER: 100 hp
MAX RPM: 450

Amera-Seiki VT-2000RM CNC VTL w/Live
TURNING DIA: 78.7"
TAILSTOCK: No
LIVE TOOLING: Yes
SUB SPINDLE: No

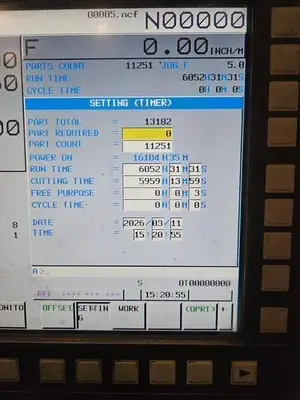

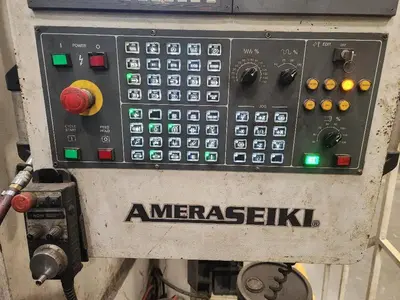

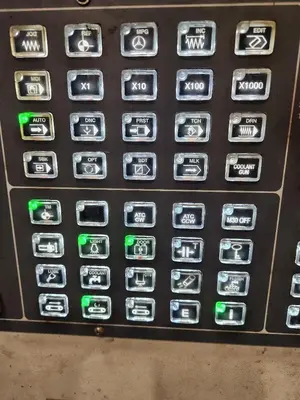

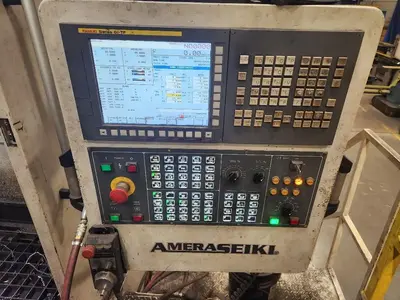

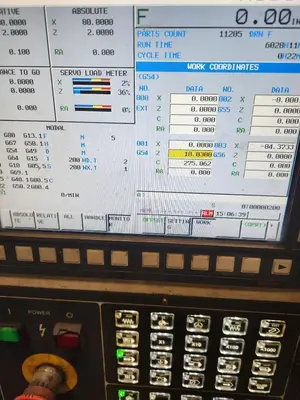

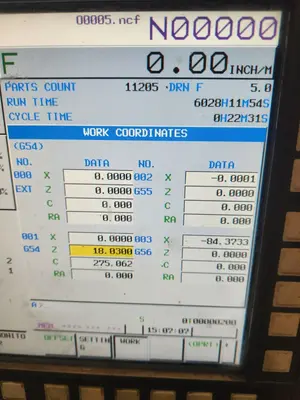

CONTROL: CNC (•Fanuc Oi-TF)
WEIGHT: 122,010

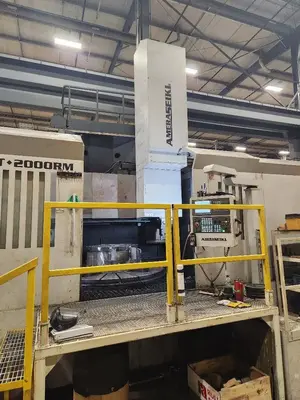

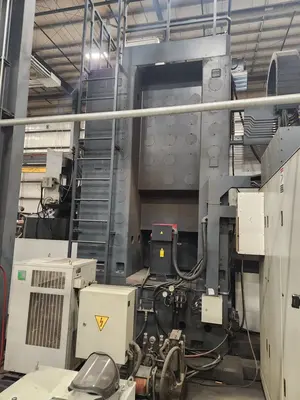

2018 Amera-Seiki Model VT-2000RM Vertical Turning Lathe w/Live Tooling
Standard Features:

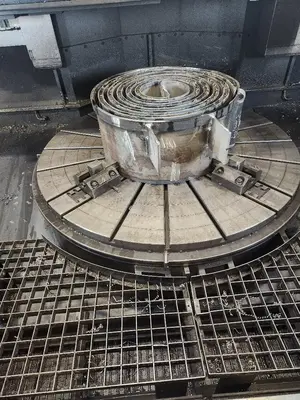

Table Diameter is a 4 jaw chuck mm (in.): 2000 (78.7)
Table Max. Swing Diameter mm (in.): 2100 (82.7)
Table Max. Cutting Diameter mm (in.): 2000 (78.7)
Table Max. Cutting Height mm (in.): 1600 (63)
Cross rail moving Height mm (in.): 1000 (6 step)
Table Max. Load kg (lbs.): 20,000 (44,000 lbs.)
Table Main Motor Hp.\Torque:(80\100HP) 29,480 Ft. Lbs.
Table Speed rpm: 10 ~ 450
Gear Box Speed Stages Range: 3 Speed
Live Tool Spindle Speed Rpm\Torque Hp.:3,000\353Ft. Lbs. 30Min
Live Spindle Power: 40/50 hp.

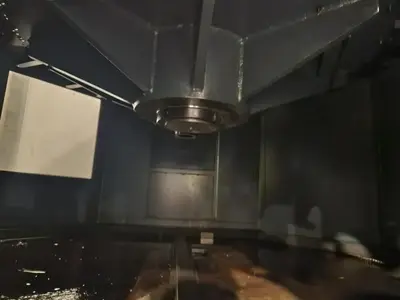

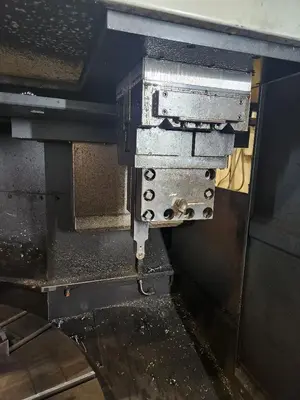

Ram Size mm2 (in2): 254 x 254 (10”x10”)
ATC Tool Number mm (in.): 12 / 24 (.47/.95)
Tool Specification mm (in.): Cat 50/Live tooling.
Tool Holder/Shank Specification mm (in.): 300x300 (11.8x11.8)
Rapid Feed Rate (X axis) m/min. (in./min.): 12 (472.4)
Rapid Feed Rate (Z axis) m/min. (in./min.): 12 (472.4)

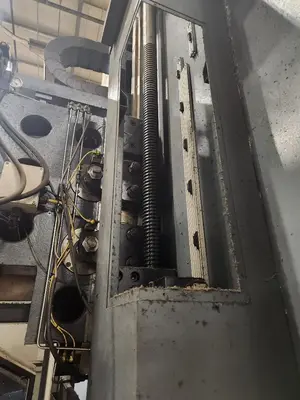

Z Axis Ram Stroke Inches: 1250 (49.21)
X,Z Axis Motor kw/hp. αiF30: (7kw/10HP)
Horizontal Moving Travel X mm (in.): - 300 ~ 1700 (11.8~66.9)
Vertical Moving Travel Z mm (in.): 800 (31.5)
Cutting Feed Rate mm/rev (in./rev): 0.01 ~ 1000 (.0003 ~ 39.4)
Machine Weight Pounds: 122,041
Positioning Accuracy Inch: 0.0004”/40”
Repeatability Inch: 0.0002”
Standard & Upgraded Features & Accessories on the Stock Machine:
•Fanuc Oi-TF
•Upgrade 100 Hp. 3 Speed Transmission Table Motor upgraded from 45Hp.
•Ram Size 10”x10”
•Live Tooling 40\50hp Continuous\30min single speed
•Manual 4-jaws chuck
•Three Range Table Gear Box
•Standard Semi-Hood Enclosure

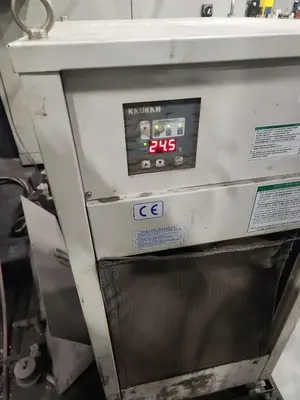

•Heat Exchanger with Air Conditioner Cabinet
•Drum Type 12 Tools

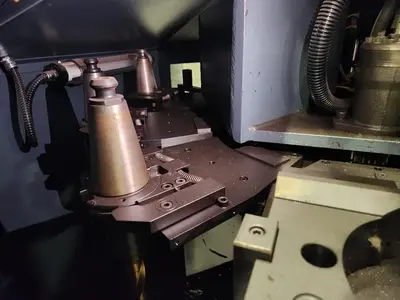

•I.D. Tool Holder*1, O.D. Tool Holder*1
•Level Screws and level shoes
•Chip conveyor with cart
•Automatic lubrication system
•Work lamps * 2pcs
•Operation & maintenance manual

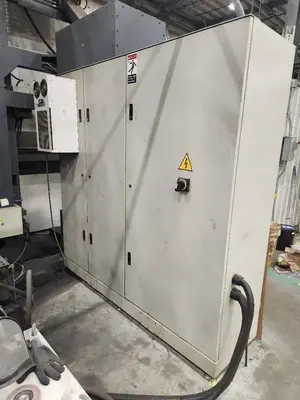

•Electrical circuit diagram
•Fanuc CNC control manual
Machine Upgrades:
12 station Automatic Tool Changer
X/Z axis HDH optical scale
Renishaw part probe RMP60 Included
Renishaw tool probe TS20
CTS @ 1,000 Psi with filtration unit giving better tool life. Included

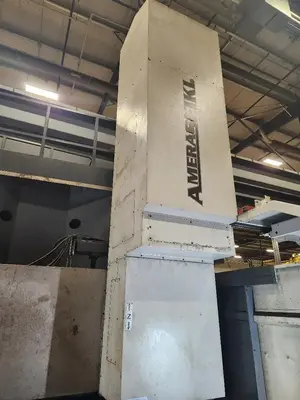

Extended Column Z axis traverse 1600mm\ 63” Included
Additional (1) OD Toolholder Included
