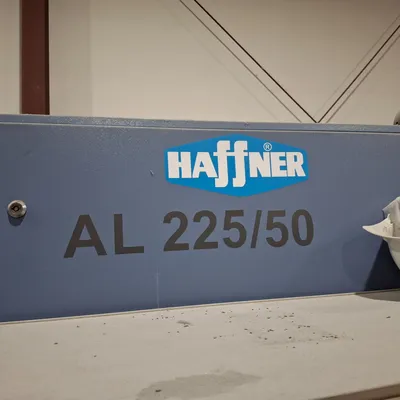

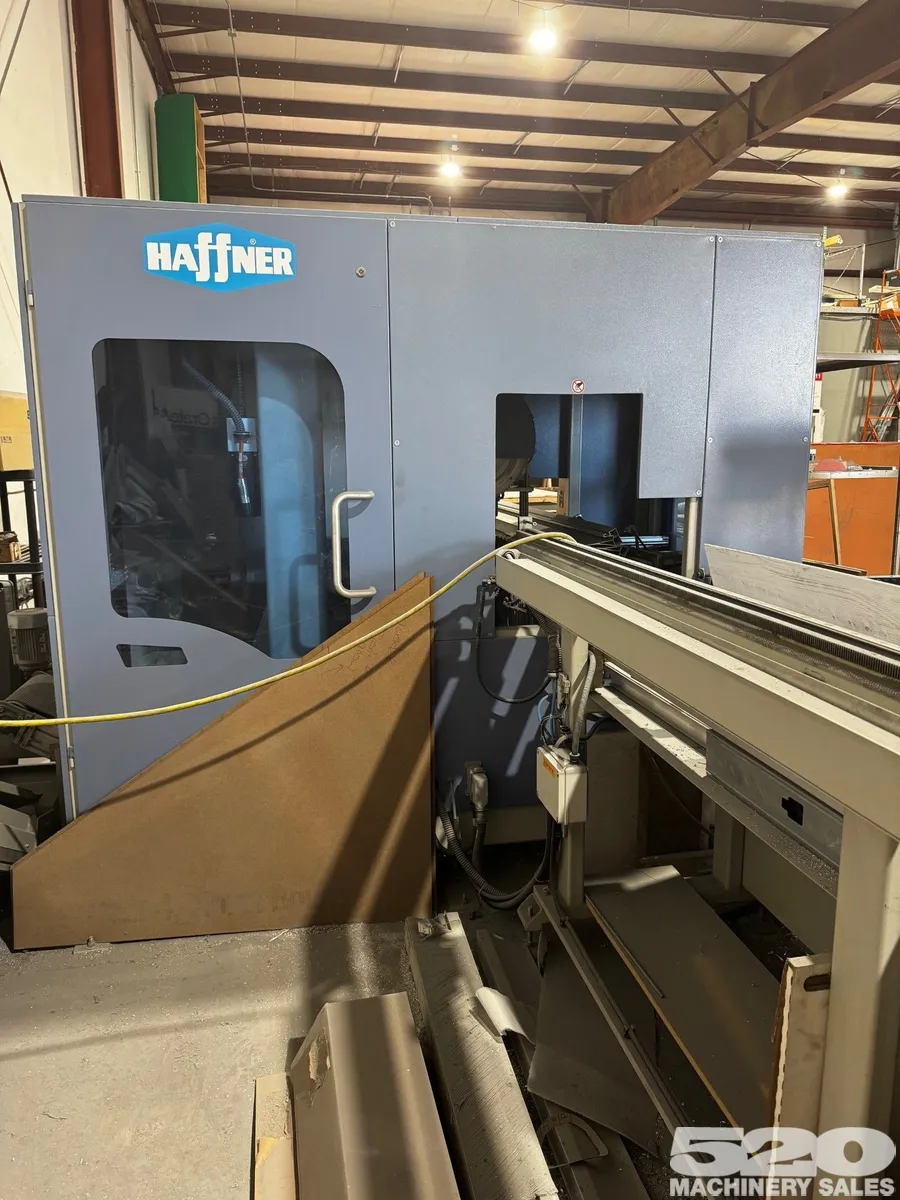

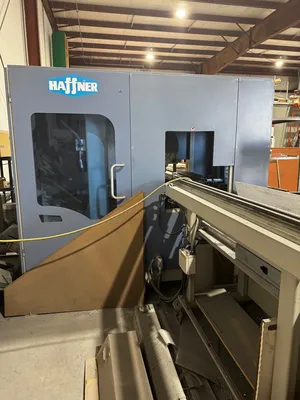

2020 Haffner AL-225/50 Aluminum Profile Processing Machine

All cutting, milling, drilling, and marking operations on the aluminum profiles are grouped in one machine controlled by computer

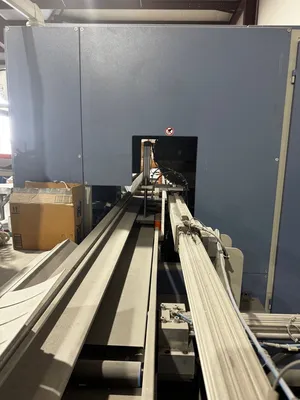

Stacking of 7 profiles (max. 6,5 m length)

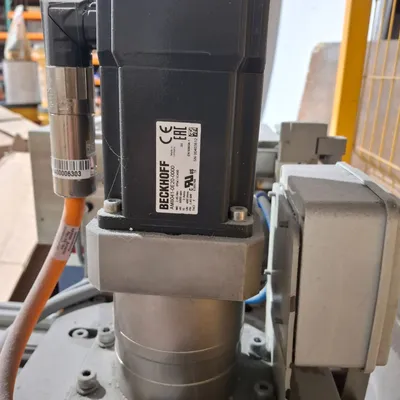

Automatic cutting at all angles between 15° and 165° in 0,1° sensitivity with vertical saw in 650mm diameter via servo motors
Performs opening, drilling and milling operations of angled water drainage channel
Carries remaining waste parts to the waste chamber with automatic conveyor system
Performs all operations sensitively with 3 tool set being standard in the milling group
15,6” touchscreen
High performance industrial PC, working between 0°C – 55°C without a fan
Working with production data coming from different window production software programs for minimum waste
Full integration with facade and door-window production software programs
Error messages visible on the screen with interface program developed by Haffner software department
Able to provide service and troubleshooting with remote connection to automation system
Operating system ensures taking of maximum safety measures against viruses and user errors by cleaning unnecessary processes of last login automatically at every opening-closing of the machine
Remote network connection or data transfer possibility via USB
Performs daily back up operation to internal back up unit automatically
Daily, weekly, monthly and annually production control with shift control system
Central lubrication system that facilitates the machine maintenance
