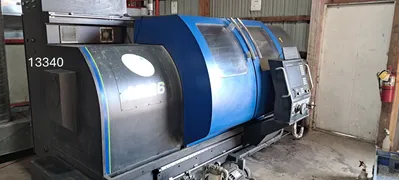

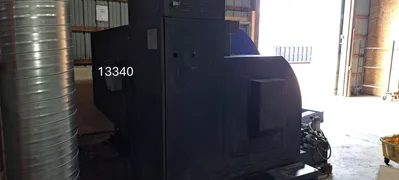

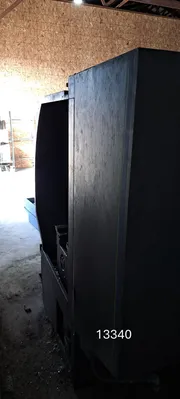

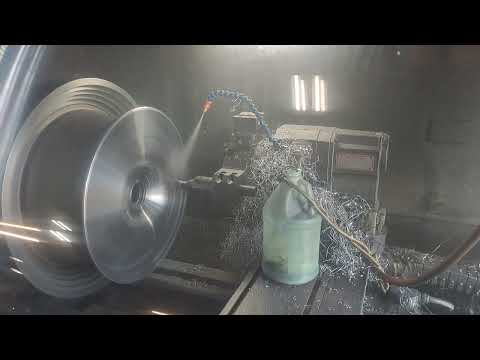

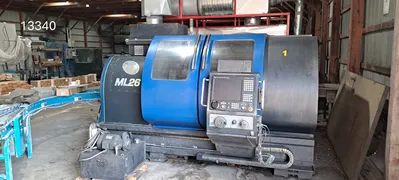

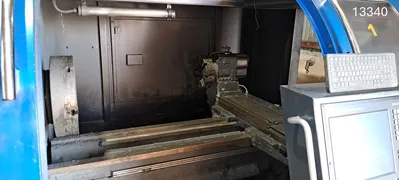

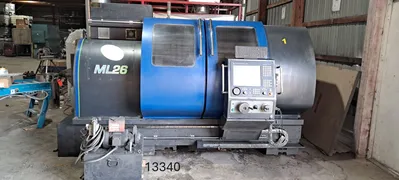

2017 Milltronics ML26/40 CNC Lathe With Turret
ConditionUsed
1 available
$35,000.00 USD

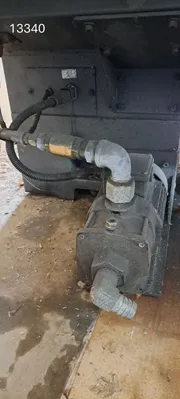

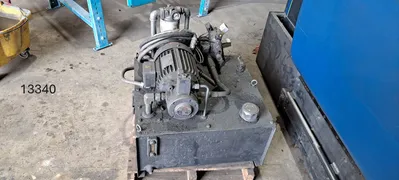

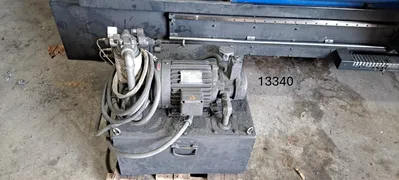

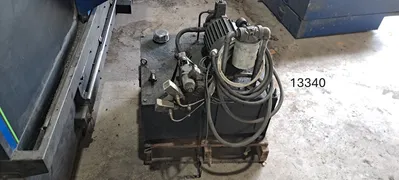

2017 Milltronics ML26/40 CNC Lathe With Turret. Machine is in good condition and can be inspected under power as needed. The control on this machine has been upgraded to the Milltronics 9000 CNC control. Options include: programmable 8 station turret, coolant pump kit, Milltronics 9000 CNC control (conversational + G/M code).
CAPACITY:
X axis travel 13” (330 mm)
Z axis travel 42” (1066 mm)
Swing over bed (diam) 27” (685 mm)
Swing over gap (diam) 34.2” (870 mm)
Gap distance 16.1” (410 mm)
Swing over cross slide (diam) 12.75” (320 mm)
SPINDLE:
Spindle nose A1-8
Spindle bore diameter 3.22” (82 mm)
Spindle range 40-2000 RPM
AC spindle motor 24/15 HP (18/11kW)
Spindle torque 1050 ft-lbs. (1423 Nm)
TAILSTOCK:
Tailstock quill travel 6” (150 mm)
Tailstock quill diameter 3.94” (100 mm)
Tailstock quill taper MT5

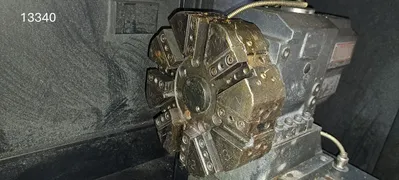

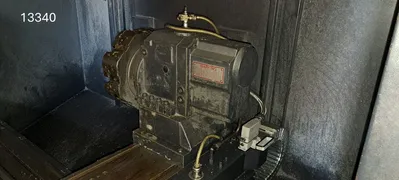

AUTOMATIC TURRET:
Number of tools 8
Tool size 1” (25 mm)
Boring bar capacity 1.5” (38 mm)
Tool selection Bi-directional
MOTION:
X, Z axis rapid traverse rate 500 IPM (12.7 m/min)
Maximum cutting feed rate 100 IPM (2540 mm/min)
X axis ball screw diameter 1.25” (32 mm)
Z axis ball screw diameter 1.77” (45 mm)
Position accuracy* ±0.00025” (±0.0063 mm)
Repeatability* 0.0002” (0.005 mm)
Axis thrust force X, Z 4,000 lbs.
8 Station Automatic Turret

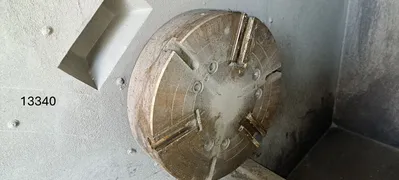

18" Power chuck

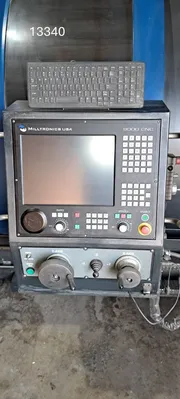

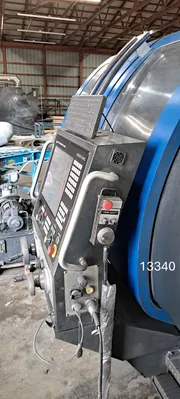

Upgraded to Milltronics 9000 CNC Control (Conversational Plus G/M Code)
Low (4012) Hours
2017 Milltronics ML26/40 CNC Lathe With Turret. Machine is in good condition and can be inspected under power as needed. The control on this machine has been upgraded to the Milltronics 9000 CNC control. Options include: programmable 8 station turret, coolant pump kit, Milltronics 9000 CNC control (conversational + G/M code).
Imperial
| Swing | 26" |
| Machining Length | 40" |
| Bar Capacity | 3" |
| Live Tooling | No |
| Y-Axis Milling | No |
| Sub Spindle | No |
| # of Turrets | 1 |
| Turning Dia | 18.7" |
| Power | 20 hp |
| Max RPM | 2,000 RPM |
| Tailstock | Yes |
| Control | CNC (Milltronics 9000) |
| Dimensions | 157 in x 67 in x 72 in |
| Weight | 9700 lbs |
CAPACITY:
X axis travel 13” (330 mm)
Z axis travel 42” (1066 mm)
Swing over bed (diam) 27” (685 mm)
Swing over gap (diam) 34.2” (870 mm)
Gap distance 16.1” (410 mm)
Swing over cross slide (diam) 12.75” (320 mm)
SPINDLE:
Spindle nose A1-8
Spindle bore diameter 3.22” (82 mm)
Spindle range 40-2000 RPM
AC spindle motor 24/15 HP (18/11kW)
Spindle torque 1050 ft-lbs. (1423 Nm)
TAILSTOCK:
Tailstock quill travel 6” (150 mm)
Tailstock quill diameter 3.94” (100 mm)
Tailstock quill taper MT5
AUTOMATIC TURRET:
Number of tools 8
Tool size 1” (25 mm)
Boring bar capacity 1.5” (38 mm)
Tool selection Bi-directional
MOTION:
X, Z axis rapid traverse rate 500 IPM (12.7 m/min)
Maximum cutting feed rate 100 IPM (2540 mm/min)
X axis ball screw diameter 1.25” (32 mm)
Z axis ball screw diameter 1.77” (45 mm)
Position accuracy* ±0.00025” (±0.0063 mm)
Repeatability* 0.0002” (0.005 mm)
Axis thrust force X, Z 4,000 lbs.
8 Station Automatic Turret
18" Power chuck
Upgraded to Milltronics 9000 CNC Control (Conversational Plus G/M Code)
Low (4012) Hours
