| Rect-Cap (H) | 13" | 330.2 mm |
| Rect-Cap (W) | 18" | 457.2 mm |
| Rounds-Cap | 13" | 330.2 mm |
| Square-Cap | 13" | 330.2 mm |
| Power | 7 hp | 5.2 kW |
| Type (Auto, Manual, Semi) | 'Semi' | 'Semi' |
| Blade Width | 1" | 25.4 mm |
| Blade Thickness | 35" | 889 mm |
| Blade Length | 162" | 4,114.8 mm |
General

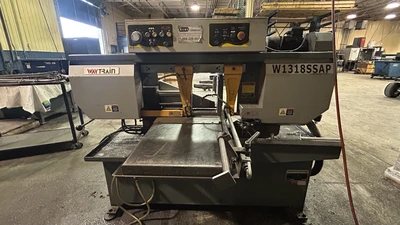

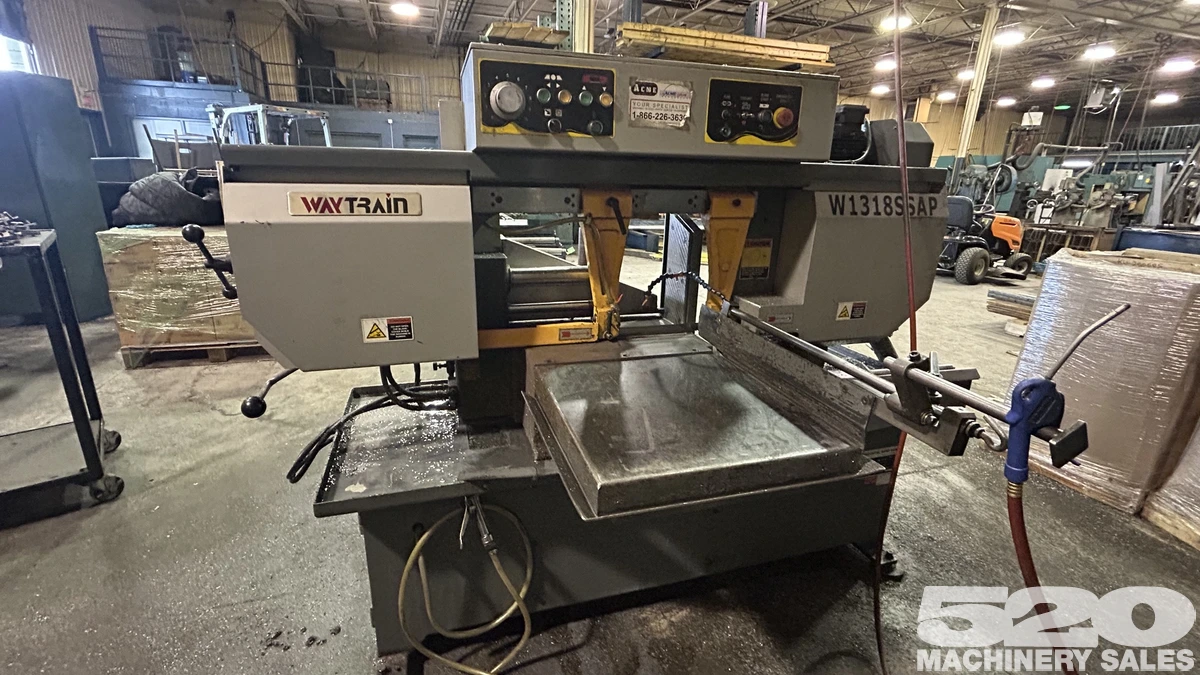

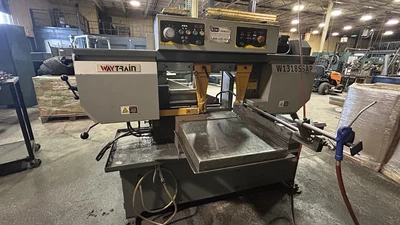

Machine Type: Horizontal Bandsaw
Model: W‑1318SSAP
Operation: Semi‑automatic
Manufacture Date: 09/2020
Serial Number: 20A03802
Machine Weight: 2,970 lbs

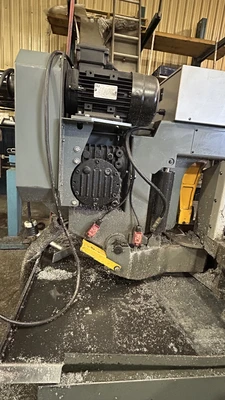

Motor & Power
Main Motor: 7.5 HP
Drive System: Industrial belt/gear drive (per model family)
Cutting Capacity
At 90°
Round: 13"
Rectangle: 13" × 18"
At 45°
Round: 11"
Rectangle: 13" × 11"
At 60°
Round: 6.3"
Rectangle: 10" × 6.3"
Blade
Blade Size: 1.06" × 0.035" × 162.6"
Blade Tension: Integrated gauge with operator indicator
Guide System: Carbide + roller bearing guides (per W‑series design)
Hydraulics & Controls
Hydraulic Vise: Yes
Hydraulic Down‑Feed: Adjustable
Semi‑Auto Arm Lift: Yes
Control Panel: Multi‑function with emergency stop, feed controls, and coolant controls
Coolant System
Integrated coolant pump and delivery line
Nozzle positioned at blade entry for optimal lubrication
Construction
Heavy welded steel frame
Large‑diameter band wheels
Reinforced pivot and arm assembly for stable cutting
This equipment is currently unavailable. Similar equipment available now is shown below.
