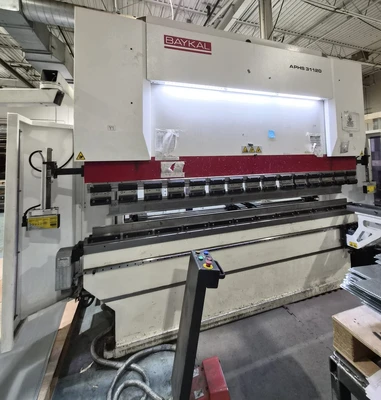

2018 Baykal APHS31120 CNC Press Brake

DESIGN AND OPERATING FEATURES
 Rigid, welded, monoblock steel frame for minimum deflection
under load up to 330 tons (Models above 330 tons are bolted).
 Downstroking bending beam with two cylinders made from highquality
certified forged steel, precisely honed and chrome plated.
 Ram travel fully supported in low friction fiber slideways.

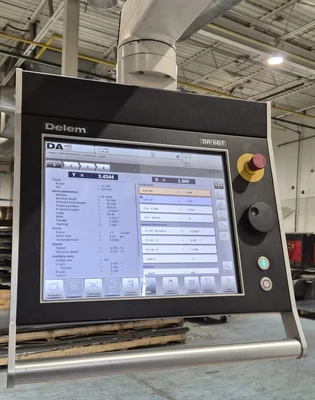

 Full electronic synchronization with proportional valve technology
assuring maximum bend accuracy and repeatability through
constant monitoring and correction of beam parallelism by a
CNC system +/- .0004 parallelism and repeatabiIity.

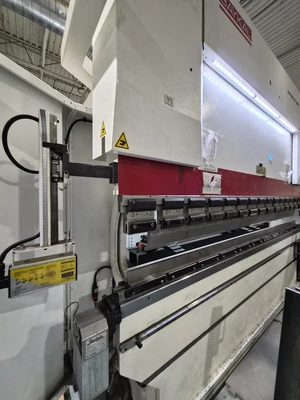

 Stroke-depth measurement through high-precision linear scales
which are bed referenced for the best bending repeatability
 CNC-controlled backgauge on ballscrew spindles with AC servo
motor for precise accuracy and speed.
 Block-type European hydraulics.

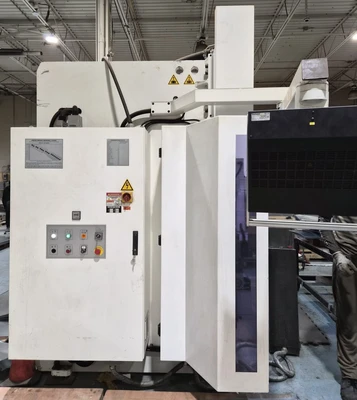

 Large electrical cabinet for maximum ventilation.
 Full conformity with EU/CE Machinery Directive for safety
certification.
 ST 44-2 Certified steel used for components.
 CSA certified & PHSR compliance ready.
 Block laser safety guarding.
