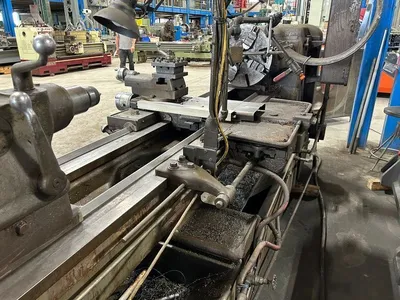

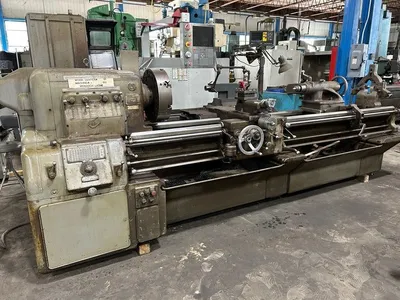

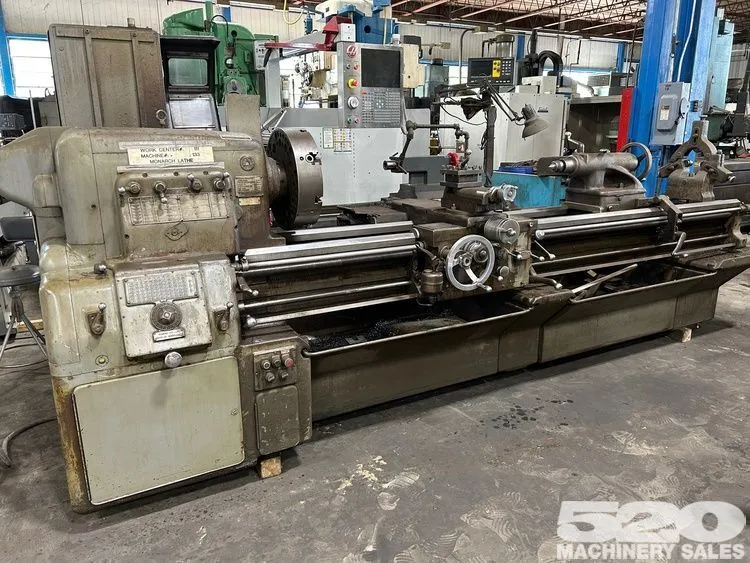

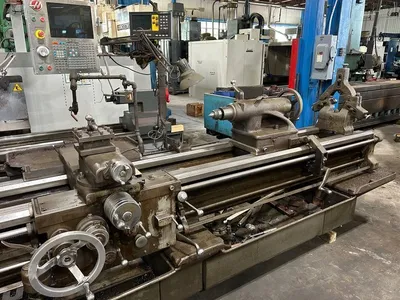

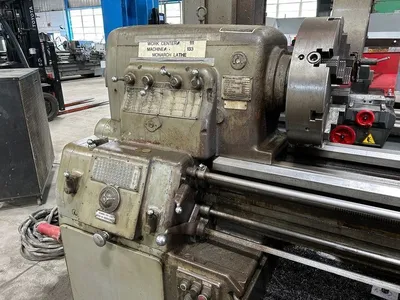

1957 MONARCH Series 60 Engine Lathe: 22” swing, taper attachment, inch threading, and hardways. Features 18" 4 jaw chuck, 4-way toolpost, and spindle speeds from 9.5 to 800 RPM. 10 HP motor with 220/440 volt electrics.
22” x 96”cc MONARCH Engine Lathe
Model: Series 60
Serial Number: 42961
New 1957
22” Swing Over Bedways
14” Swing Over Cross Slide

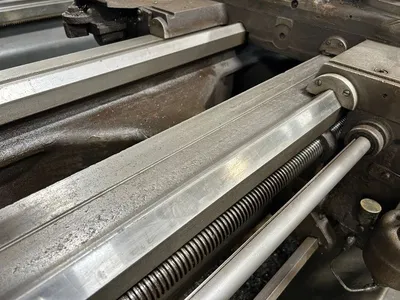

Hardways
Taper Turning Attachment
Inch Threading
2 1/8” Spindle thru Hole
Spindle Speeds from 9.5 to 800 RPM
18” Diameter 4 Jaw Chuck
Steadyrest
Thread Dial
4 Way Toolpost
Chip Pan/Coolpant Pump
10 HP 220/440 Volt Electrics
