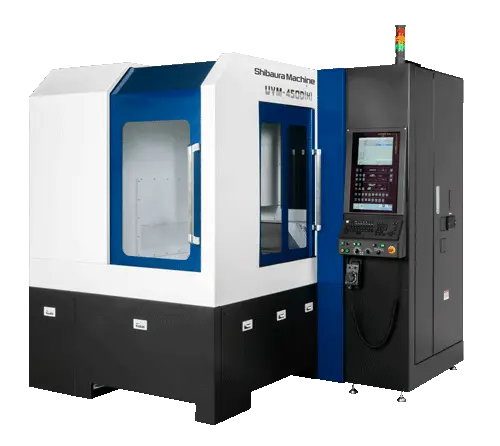

New SHIBAURA UVM-450D | High Pression Machining Center
Have one to sell?
ConditionNew
New
Explore the power of precision with the SHIBAURA UVM-450D High Precision Machining Center. Featuring a 60,000 rpm spindle, FANUC 30i-B control, and multiple advancements for improved machining time. Ideal for detailed and efficient work.
X Stroke inch(mm) 23.0 (585)
Y Stroke inch(mm) 20.7 (525)
Z Stroke inch(mm) 9.8 (250)
Spindle (rpm) 60,000
TABLE size inch(mm) width x length 19.7 x 19.7 (500 x 500)
Max. load lbs (kg) 220 (100)
Control FANUC 30i-B
High speed aerostatic bearing spindle
Spindle speed: 60000 min-1
NRRO(*): 0.10 μm
TIR: 1 μm
(*) Measured with the method of Single Point Asynchronous Error Motion
High speed and low heat generation
Improvement of machining time
Reducing in the types of tools and the processes (small diameter tool use)
Low spindle thermal displacement (See the figure at right)
