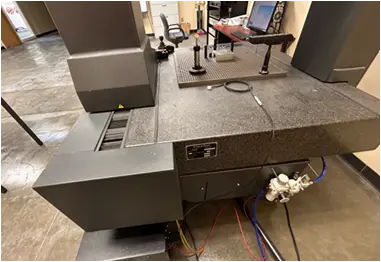

BROWN & SHARPE VALIDATOR

Table Size: 42" x 48"Max
Table Working Surface: 32" x 48"
Max Clearance (table Top to bridge): 21.2"
Max Table Load: 2,500lbs.
Electrics: 115/1/60

Renishaw PH20 Touch: Trigger Probe Head
Operating Temperature: 15 °C to 35 °C (59 °F to 95 °F)
Storage Temperature: -25 °C to 70 °C (-13 °F to 158 °F)
Max Movement Speed: 3 revs/s (1281 mm/s with standard
module & 10 mm stylus
Max Tough Head Speed: 50 mm/s
Rotation Angle: A-axis: -115° to 115°
Rotation Angle: B-axis: ∞
Angular resolution: 0.4 μRadians
Bearings: Mechanical
Change rack system: MCR20 NI and MCR20
Joystick: Multifunction MCUlite-2

Module Force Dimension “A”
Standard: 21mm [0.83”]
Medium: 21mm [0.83”]
Low: 21mm [0.83”]
6-Way: 25mm [0.98”]
EM1: 71mm [2.79”]
EM2: 96mm [3.78”]
